3.3.13

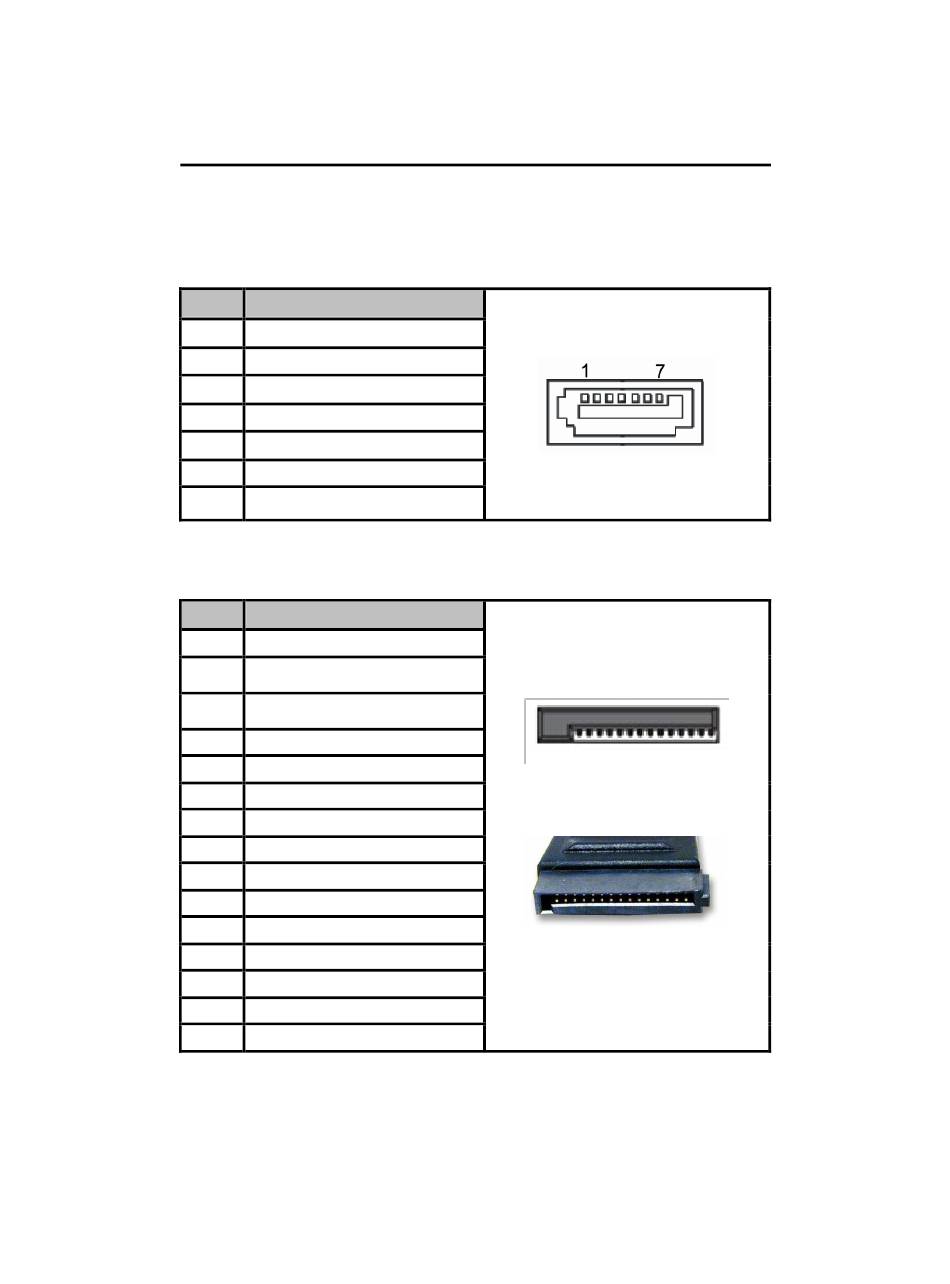

SATA Connector

The SATA connectors are for high-speed SATA interface ports
and they can be connected to hard disk devices.
Pin Signal
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND
3.3.14

SATA Power Connector

Pin Signal
1 N/A
2
N/A
3
N/A
4 COM
5 COM
6 COM
7 +5 VDC
8 +5 VDC
9 +5 VDC
10 COM
11 COM
12 COM
13 +12 VDC
14 +12 VDC
15 +12 VDC
