eBOX100-312-FL Series user's Manual
3.3.9

USB 3.0 Port (USB 1)

The Universal Serial Bus (compliant with USB 3.0 (5Gb/s)) connector on the rear I/O is for
installing USB peripherals such as keyboard, mouse, scanner, etc.

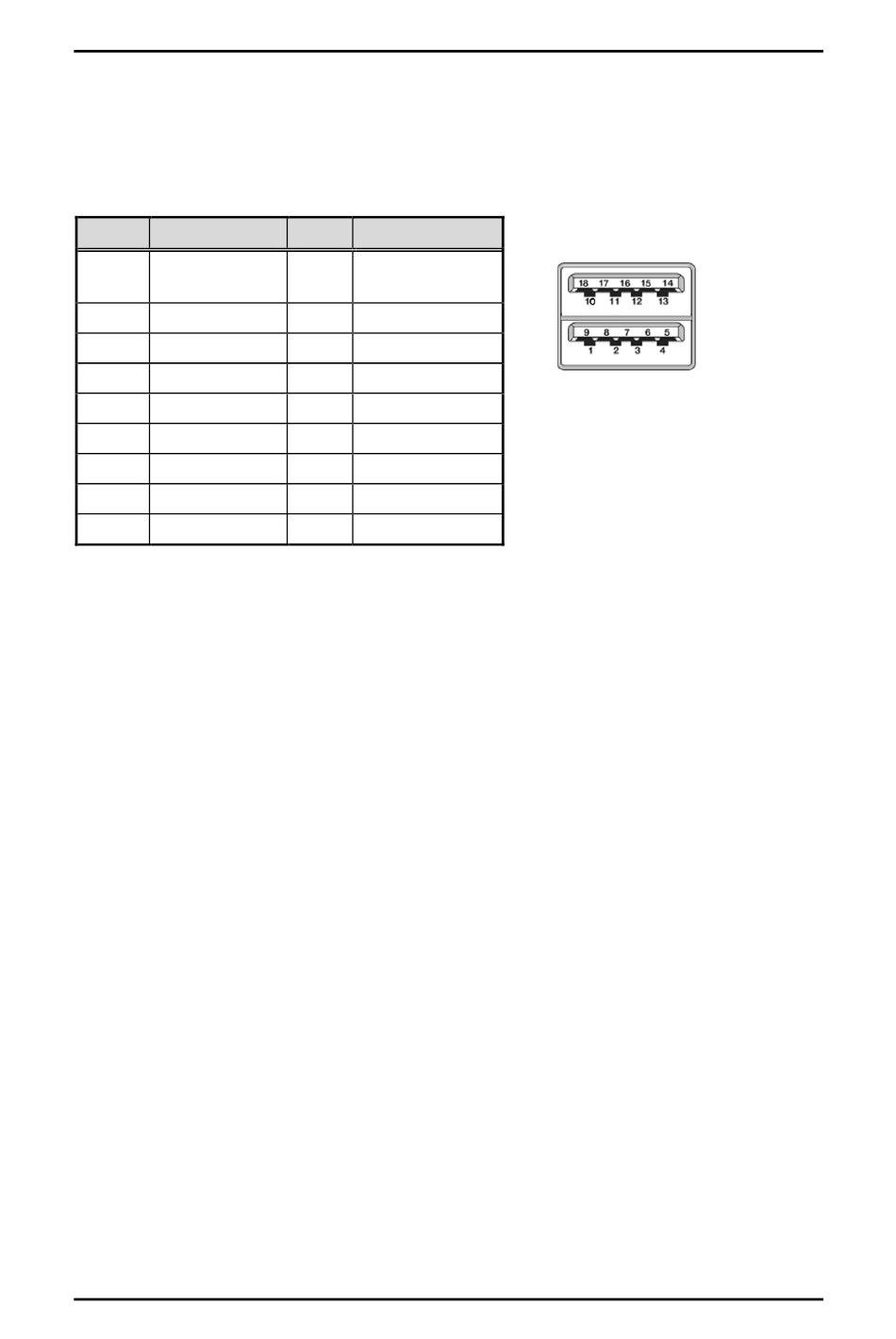

USB 3.0 port 1 and 2:
Pins Signals
USB_VCC
1
(+5V_SBY )
2 USB #0_D-
3 USB #0_D+
4 GND
5 SSRX0-
6 SSRX0+
7 GND
8 SSTX0-
9 SSTX0+
26
Pins Signals
USB_VCC
10
(+5V_SBY )
11 USB #1_D-
12 USB #1_D+
13 GND
14 SSRX1-
15 SSRX1+
16 GND
17 SSTX1-
18 SSTX1+
Jumper & Connector Settings
