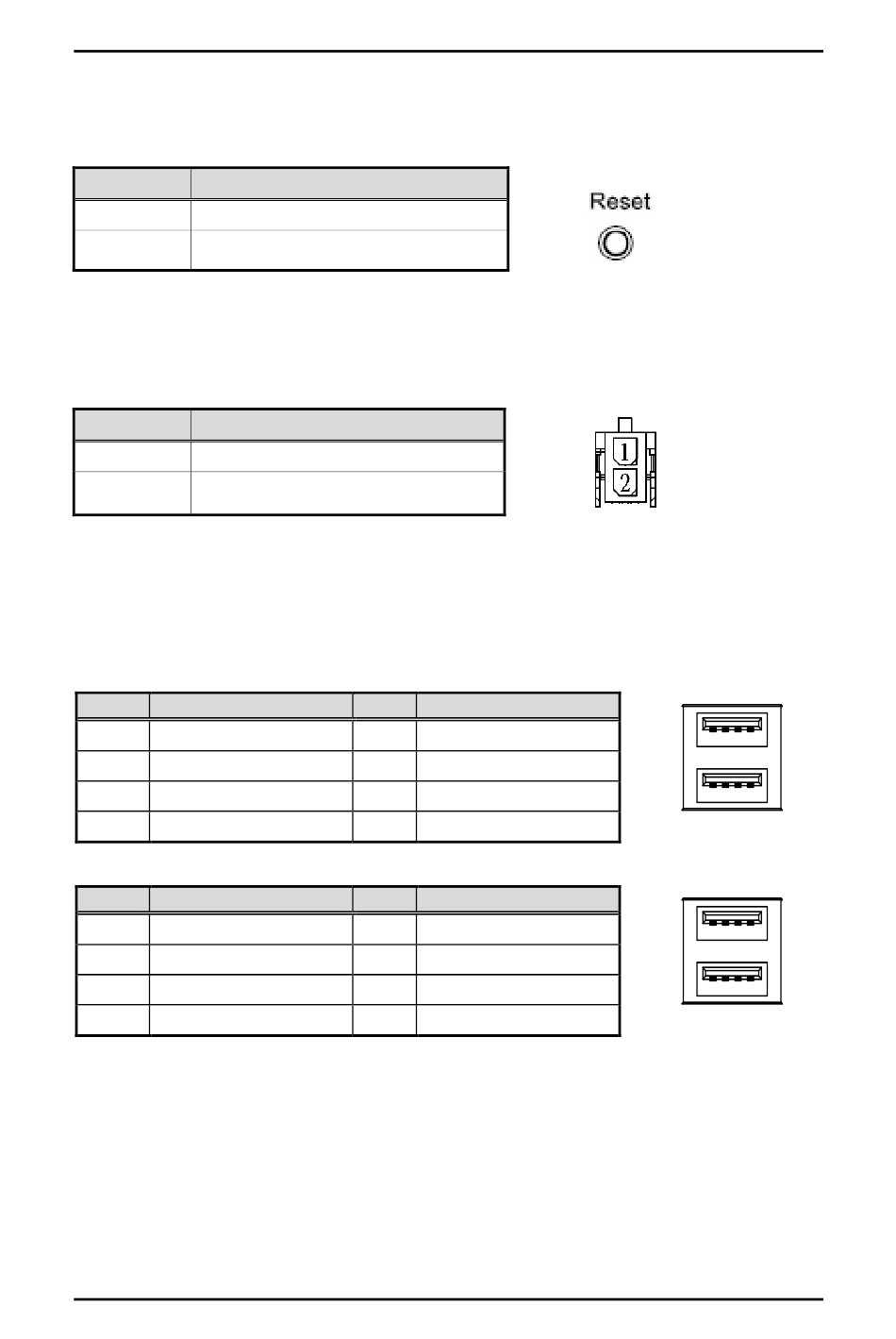

3.3.6
Reset button
The Reset button can allow users to reset eBOX100-312-FL during system abnormal situation.
Functions
On
Off
3.3.7
Remote Power Switch Connector
One 2-pin connector output for remote power on/off switch.
Functions
Short(1-2)
Open
3.3.8
USB 2.0 Port (CN1/11)
The CN1/CN11 is a Universal Serial Bus (compliant with USB 2.0 (480Mbps)) connector on
the rear I/O. It is commonly used for installing USB peripherals such as keyboard, mouse,
scanner, etc.
Pins
Signals
1
USB VCC (+5V_SBY )
2
USB #2_D-
3
USB #3_D+
4
GND
Pins
Signals
1
USB VCC (+5V_SBY )
2
USB #4_D-
3
USB #4_D+
4
GND
Jumper & Connector Settings
Descriptions
Reset system
Keep system status
Descriptions
Turn on/off system
Keep system status
Pins
5
USB VCC (+5V_SBY )
6
7
8
Pins
5
USB VCC (+5V_SBY )
6
7
8
eBOX100-312-FL Series user's Manual
Signals
USB #3_D-
USB #3_D+
GND
Signals
USB #5_D-
USB #5_D+
GND
CN11
5 6 7 8
1 2 3 4
CN1
5 6 7 8
1 2 3 4
