1. Installation
1
2
3
4
1
Field bus connection
(9-pin sub-D socket)
2
Switch module (can be removed)
3
Operating voltage connection for
electronics/load voltage connection
for CP valves (4-pin M12 plug)

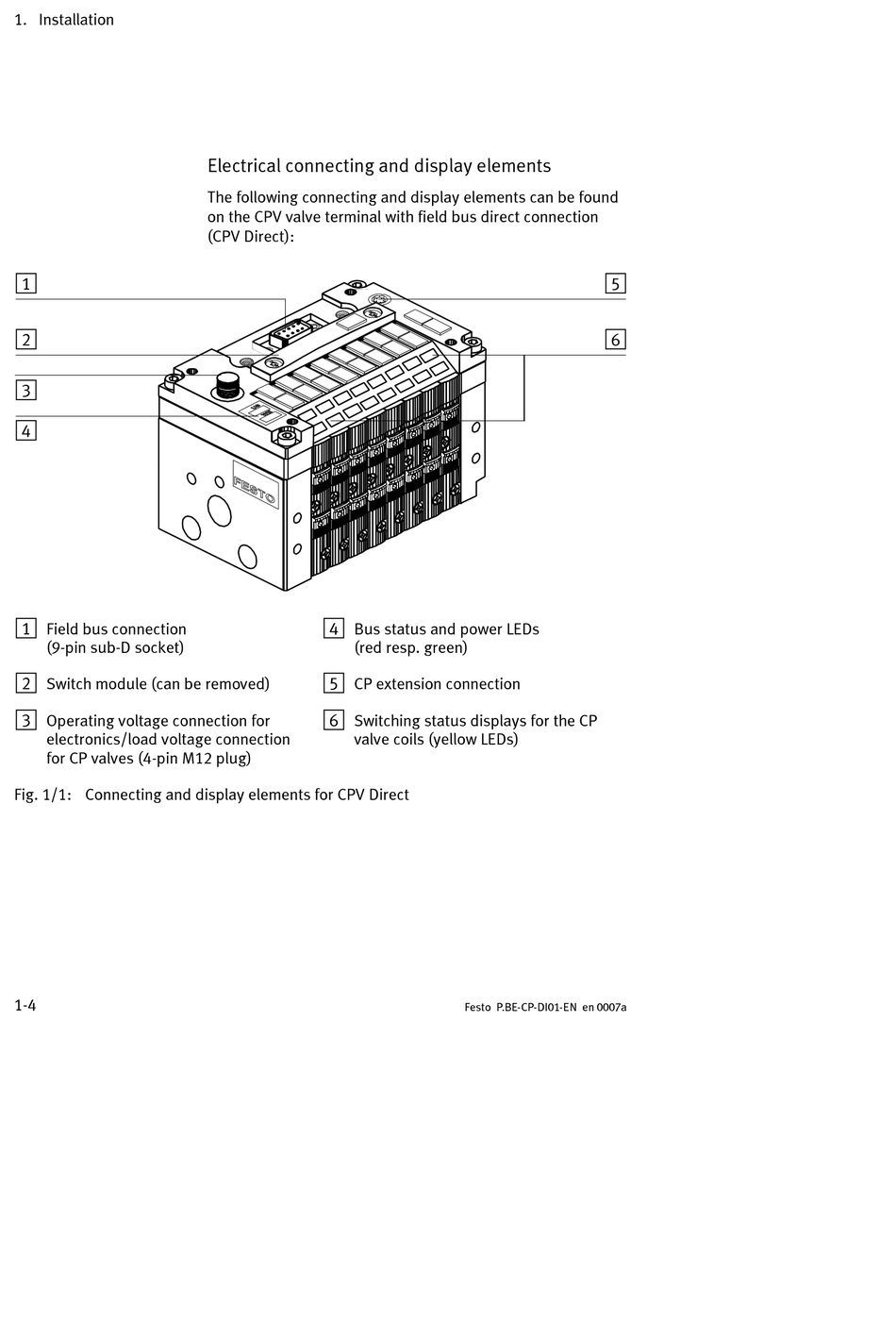

Fig. 1/1: Connecting and display elements for CPV Direct
1-4
Electrical connecting and display elements
The following connecting and display elements can be found
on the CPV valve terminal with field bus direct connection
(CPV Direct):
4
Bus status and power LEDs
(red resp. green)
5
CP extension connection
6
Switching status displays for the CP
valve coils (yellow LEDs)
5
6
