Tickets With Gap - Intermec EasyCoder 501 E Installation & Operation Manual

Media, cont.

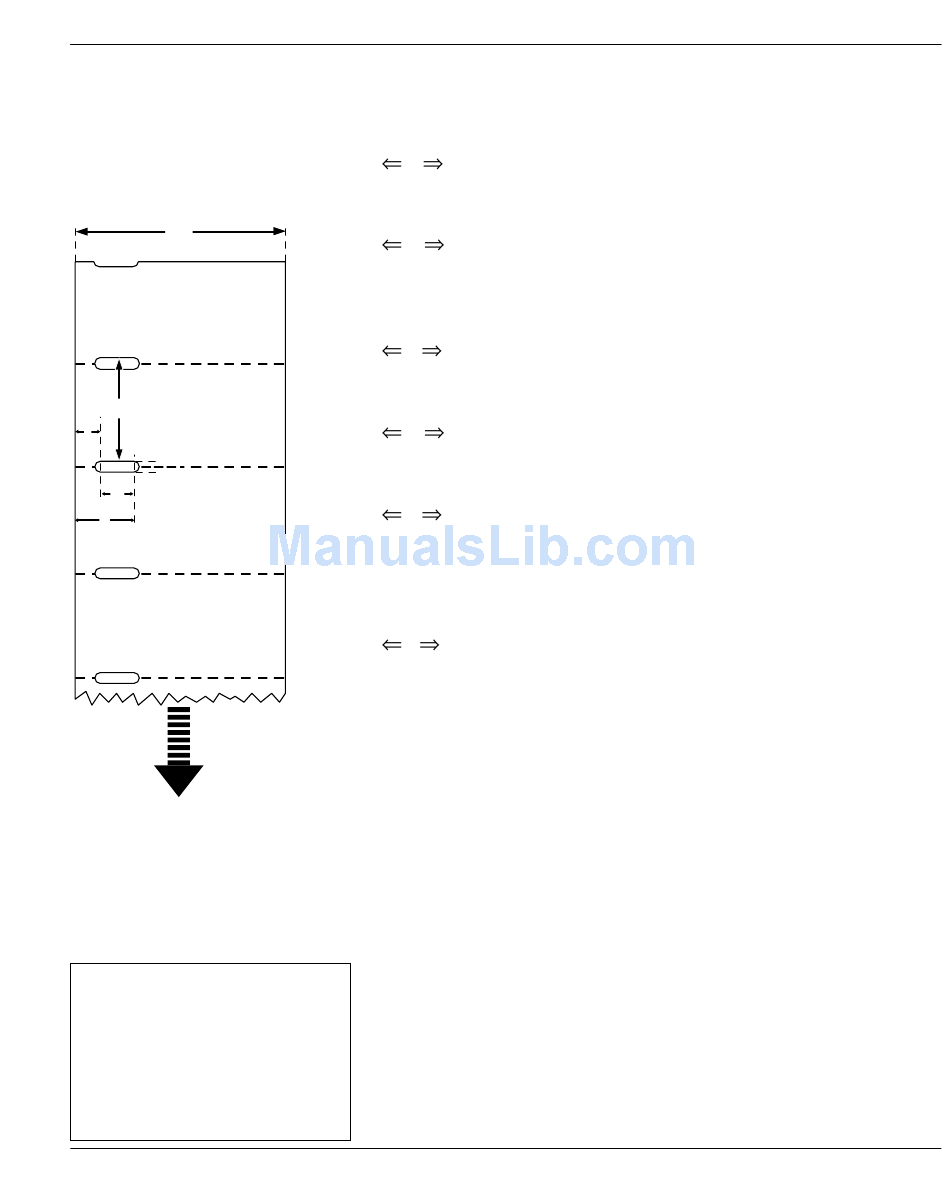

Tickets with Gap

a
b
c
f
d
e
TICKETS & TAGS
FEED
DIRECTION
1
/. The last third of a label (or
the equivalent) cannot be used
for printing, that is, the maxi-
mum print length is 1250 mm
(49.2 inches) at 8 dots/mm and
833 mm (32.8 inches) at 11.81
dots/mm.
Intermec EasyCoder 501 E – Installation & Operation Ed. 1
a Media Width
Maximum:
Minimum:
b Copy Length
Maximum (8 dots/mm)
Maximum (11.81 dots/mm)
Minimum (all):
c Detection Slit Start
The restriction of the minimum slit length must be observed and the
slit must not break the inner edge of the media.
d Detection Slit Length
The length of the detection slit (excluding corner radii) must be
minimum 5.0 mm (0.20 inches).
e Detection Slit End
Provided the restrictions of the minimum slit length and slit start
are observed, the distance from the inner edge of the media to the
outer end of the slit (excluding corner radius) may be maximum
50 mm (1.97 inches).
f Detection Slit Height
Maximum:
Recommended:
Minimum:
Perforation
Do not allow any perforation to break the edge of the media as this
may cause the media to split and jam the printer.
Media Type Setup
• Ticket (w gaps)
Appendix 2 Media Specifi cations
120.0 mm
25.4 mm
1
: 1875 mm
1
: 1250 mm
10 mm
10.0 mm
1.6 mm
1.2 mm
(4.72 inches)
(1.00 inches)
(73.8 inches)
(49.2 inches)
(0.39 inches)
(0.39 inches)
(0.06 inches)
(0.05 inches)
