Appendix 2 Media Specifications
Paper, cont'd.

Tickets with Gap

Tickets and Tags
Label Stop
Sensor
position
Paper feed
direction
Do not allow the detection slit
to perforate the edge of the web,
as this may cause the web to
split, resulting in a paper jam.

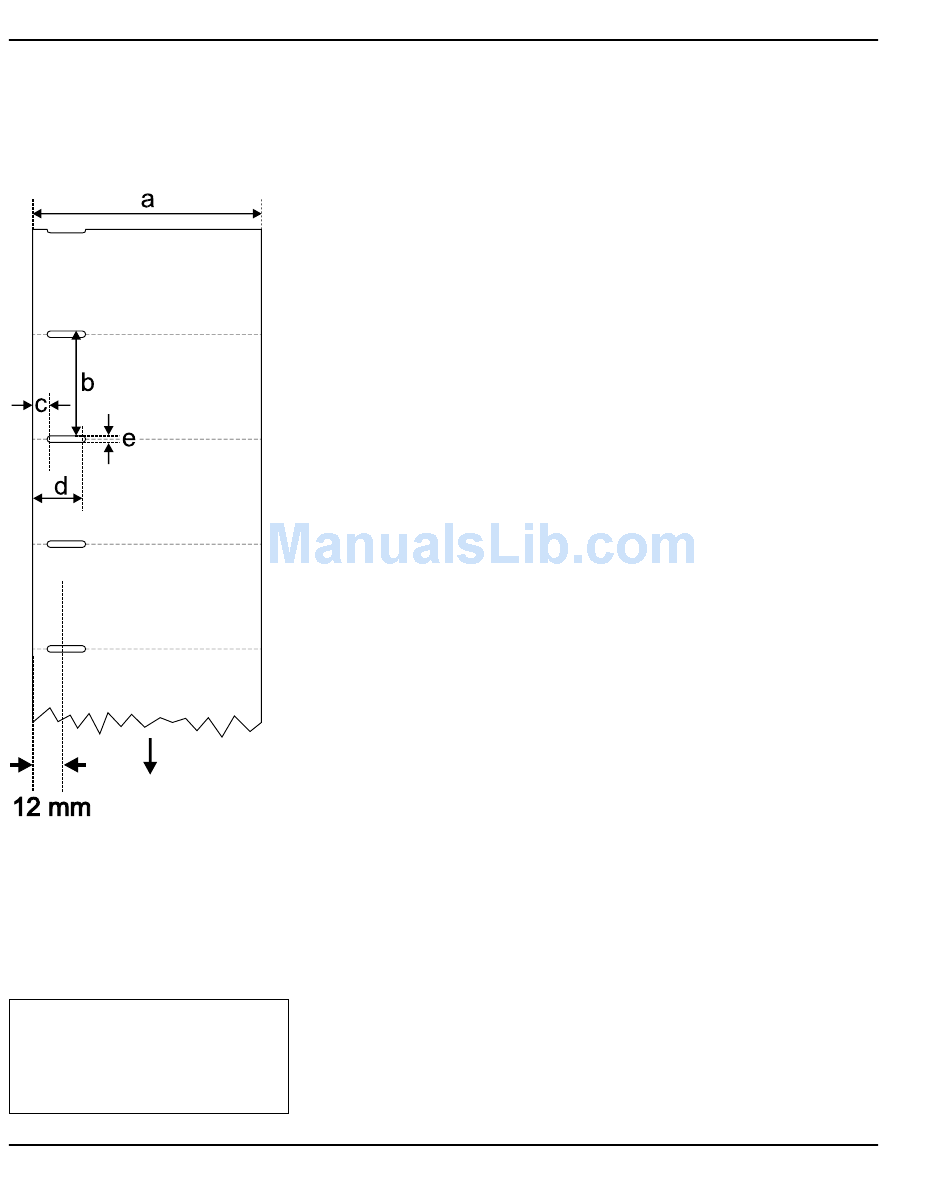

60
⇐ a ⇒ Web Width:
Maximum ................................ :
Minimum ................................ :
⇐ b ⇒ Copy Length:
Min. length (between slots) ...... :
⇐ c ⇒ Detection Slit Start:
The distance between the inner edge of the paper web and the start
of the detection gap (excl. corner radii) must be:
Minimum ................................ :
Maximum ................................ :
⇐ d ⇒ Detection Slit End:
The distance between the inner edge of the paper web and the end
of the detection gap (excl. corner radii) must be:
Minimum ................................ :
⇐ e ⇒ Detection Slit Height:
Maximum ................................ :
Recommended ......................... :
Minimum ................................ :
Media type setup:
• Ticket (w gaps)
Intermec EasyCoder E4 LinerLess – Installation & Operation Ed. 1
114.0 mm (4.5")
25.4 mm (1.00")
10 mm (0.39")
6 mm (0.24")
9 mm (0.35)
15 mm (0.59")
10.0 mm (0.39")
1.6 mm (0.06")
1.2 mm (0.05")
