System Board Components

This section displays the WS5A System Board components, connectors and
jumpers, and includes Revisions C, D, and F System Boards. The Revision E
System Board did not enter production.
Revision F System Boards will appear in mid 2012.
WS5A System Board - Primary Components (Revisions C, D, and F)
The Processor and ICH8M are mounted on the underside of the system board
to contact the thermal pads and copper heat sink.

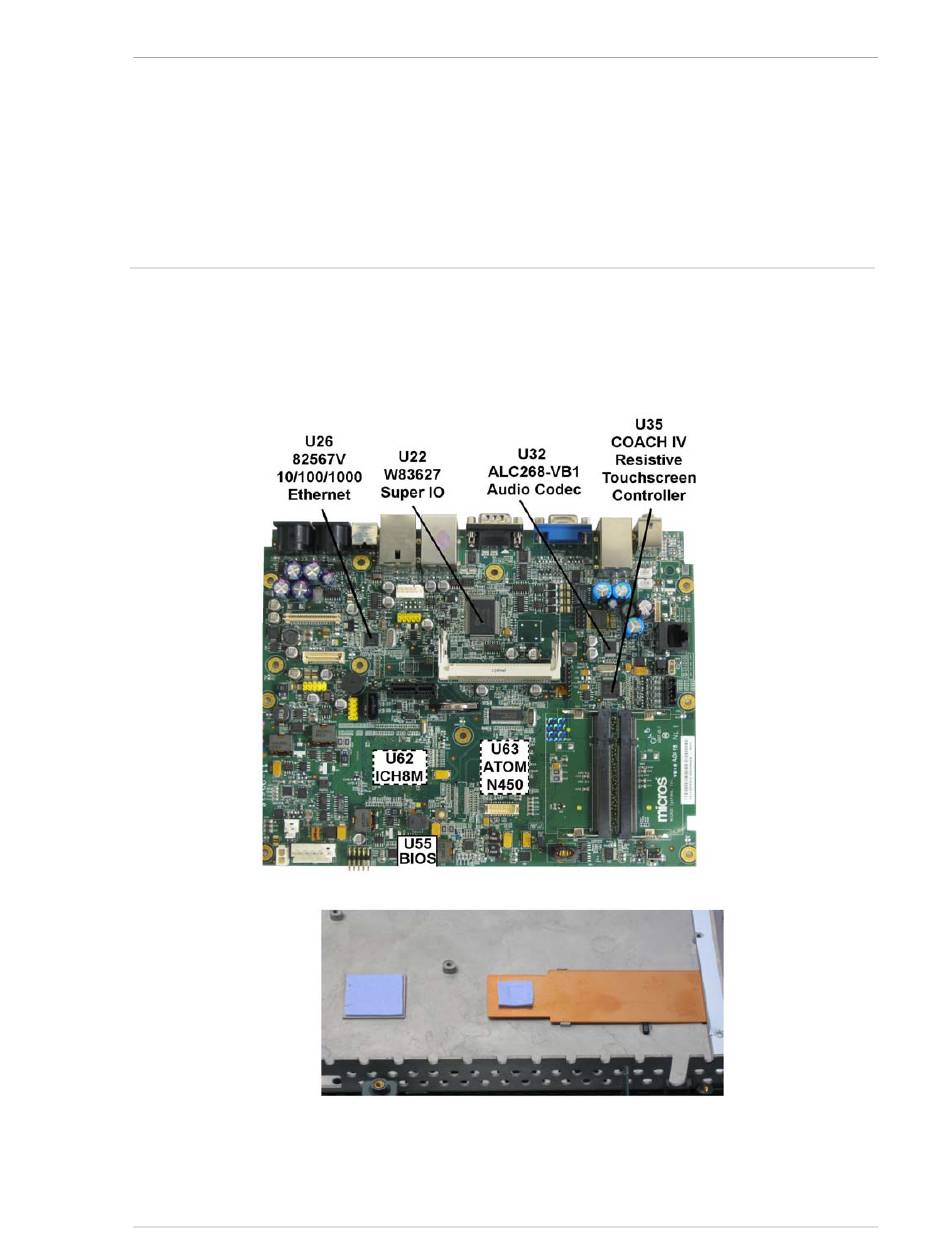

Figure 3-6: System Board Rev C, D, and F Primary Components and Heat Sink
