Connector and Cable Diagrams
Hook-up Cables
Ethernet

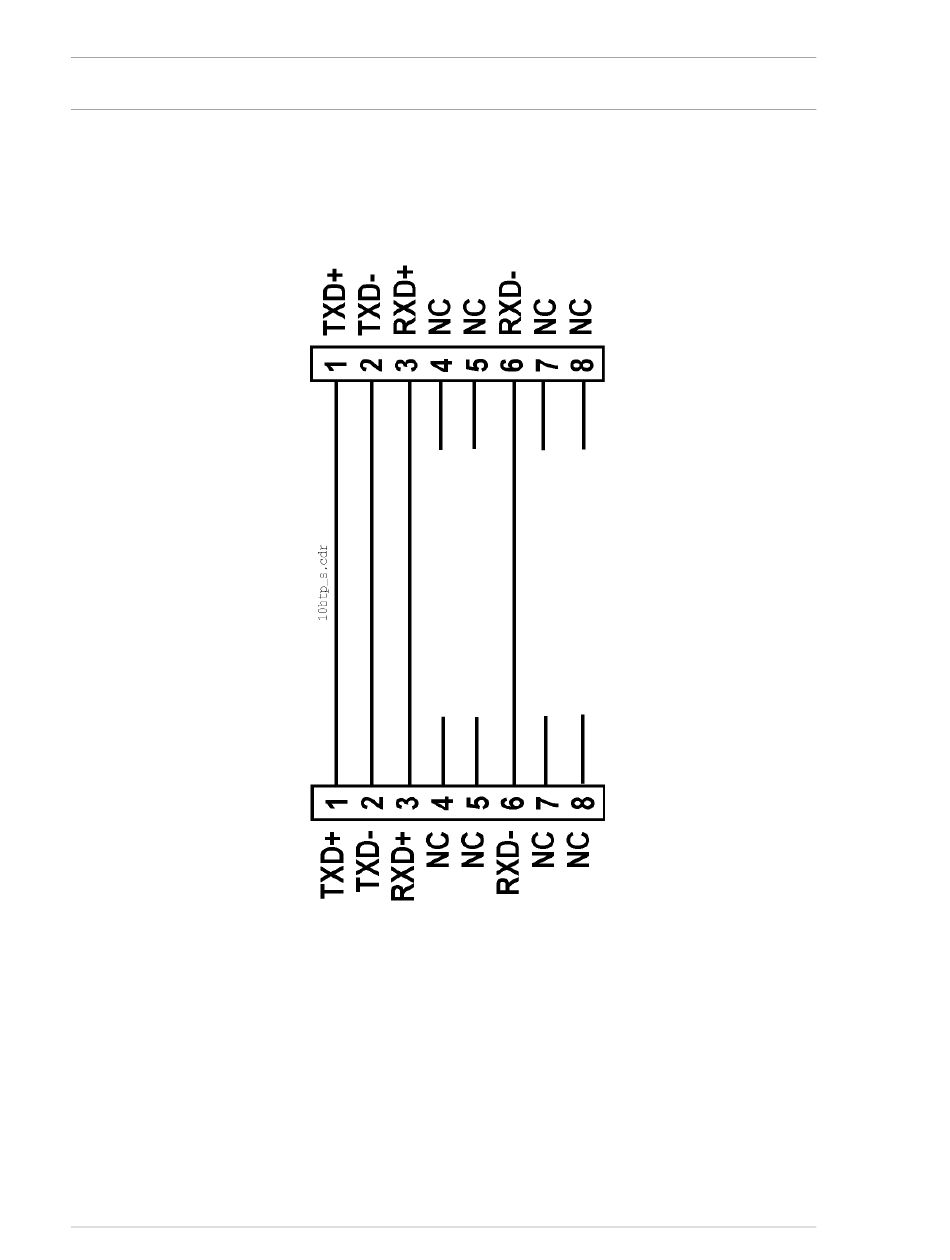

Figure B-14 shows a diagram of a standard Cat 5 Ethernet hook-up cable. This
cable would be connected from a workstation or server to the system hub.
Figure B-14: EIA/TIA-568-A Cat 5A Ethernet Hook-up Cable Diagram
B-10
Workstation 5A Setup Guide - Fourth Edition
