Disassembling the Workstation 5A

Disassembling the Workstation 5A

The following procedure describes how to disassemble the unit and access the
system board and peripheral components.
CAUTION: DOUBLE POLE/NEUTRAL FILTERING
The Workstation 5A Power Supply contains a permanently
connected fuse in the neutral line. After fuse operation, parts
of the power supply remain energized and present a shock
hazard as long as the AC Power Cord is connected.
Always disconnect the AC power cord before opening the unit
for service or configuration.
1. Remove all cables from the IO Panel including the AC Power cable before
disassembling the unit.
2. Place a towel or other soft cloth on you work surface to protect the
touchscreen, then place the workstation face down on this surface. If an
option such as the Finger Print reader is attached to the front cover, take
care not to rest the unit in the casing.
o The cover is held in place by a pair of captive screws assessable from
the underside of the unit as shown in Figure 3-1.
3. Loosen the captive screws as shown in the upper half of the Figure. Return
the unit to the normal operating position. Remove the top cover from the
base by lifting at the front as shown in the lower half of Figure 3-1.
3-2

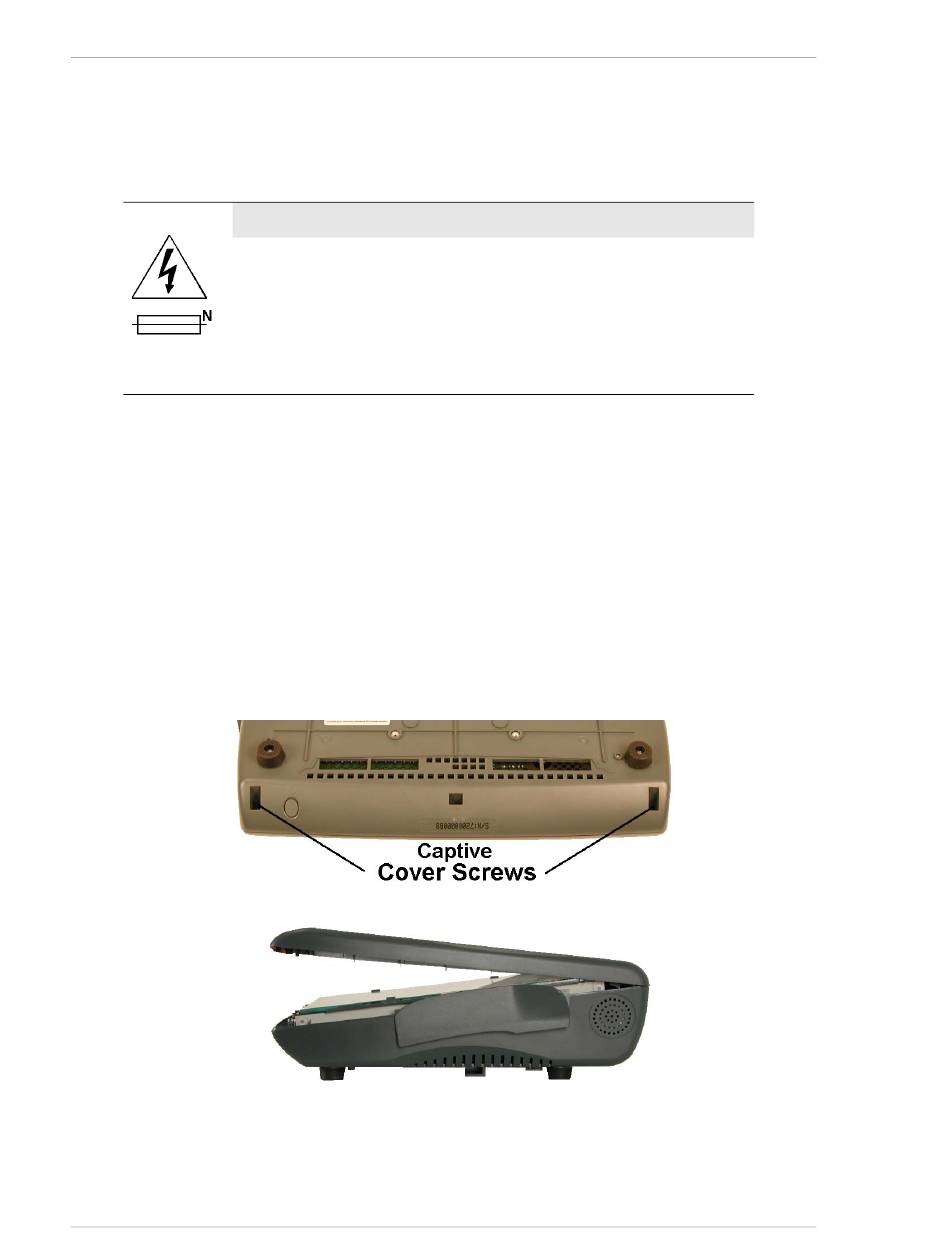

Figure 3-1: Removing the WS5A Top Cover
