What's Inside?
Installing Options
Workstation 5 or 5A Adjustable Stand and Pole Display
The kit consists of a the LCD customer display, 6" Pole, mounting bracket and
hardware.
1. Determine the location of the mounting bracket on the base plate. It can be
mounted to the left, right, or rear of the base plate.
2. Attach the mounting bracket to the base plate. Be sure to use the spacers
included in the kit between the base plate and bracket.
3. Refer to the numbered steps in Figure 3-30 to attach the pole to the bracket,
run the interface cable, and attach the LCD to the pole.
4. Rotate the LCD to the desired position and use a 1.5mm hex wrench to
tighten the set screw and lock the display in place.

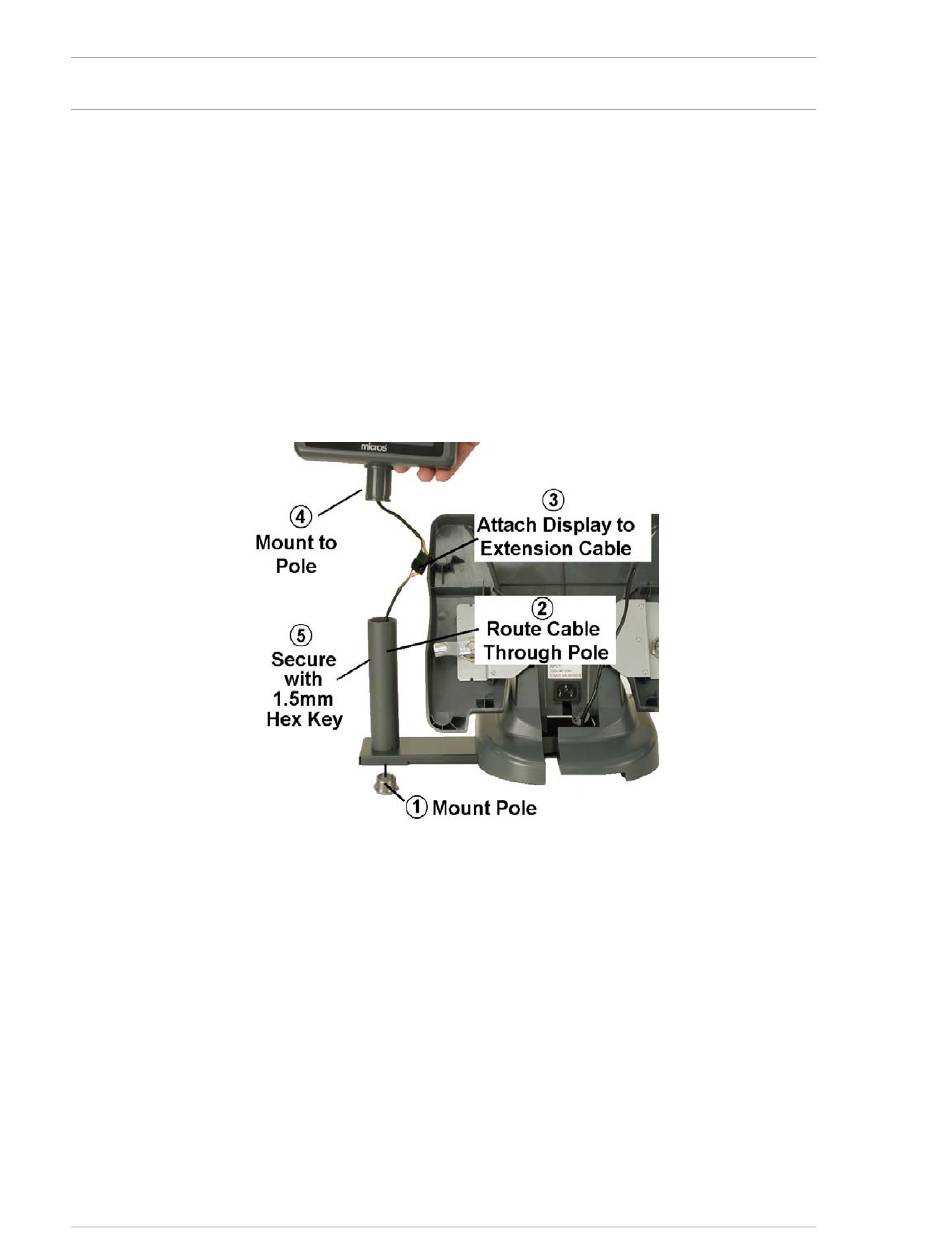

Figure 3-30: Assembling the WS5/WS5A Adjustable Stand Pole Display
5. Before placing the workstation on the Stand, connect the interface cable to
Customer Display IO Connector.
Testing the Adjustable Stand Pole Display
The LCD Pole Display is automatically detected by the API at power-up.
1. From the Windows Embedded CE 6.0 Desktop, touch My Device -> DOC
-> Utilities -> WS5A Diagnostics Utility. Touch the 'Cust Disp' tab. Press
the [Send] button to send a message to the LCD Customer Display.
