Installing and Operating the Workstation 5A
Workstation 5A Recovery
•
•

Pre-Boot Menu (BIOS Q1010m Only)

This BIOS Version moves WINCE and WIN32 Factory Restore to a Preboot
Menu, shown below.

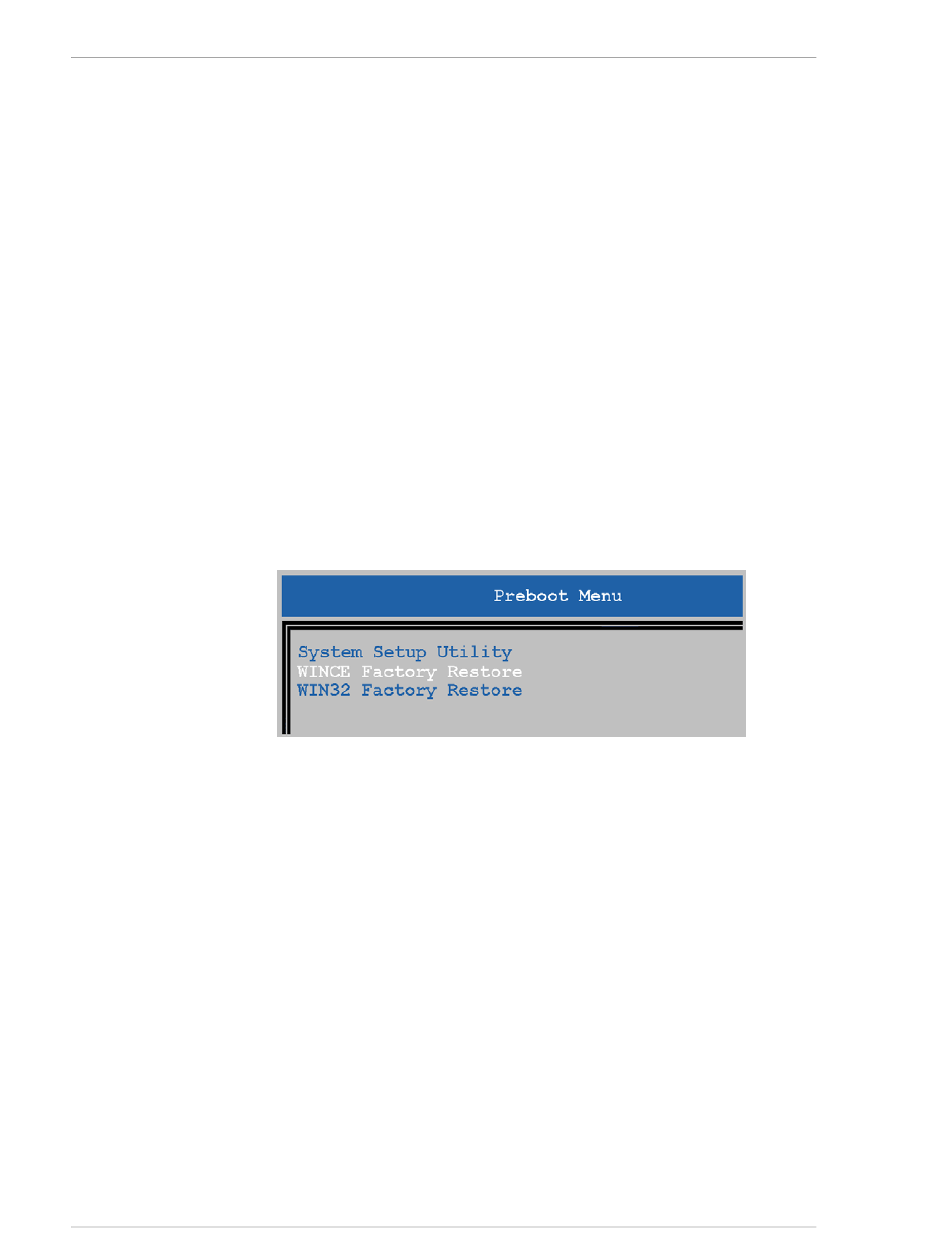

Figure 4-21: BIOS Version Q1010m Preboot Menu

WINCE Factory Restore

1. With a USB Keyboard attached, power-up the workstation with the
power button.
2. When the Blue Splash Screen appears, press the [Del] key to enter the
System Configuration Utility.
•
3. To start WINCE Factory Restore, select it from the Menu and press
[Enter].
• The workstation restarts, displays the Blue splash screen, then:
•
•
4-32
• If the path and image name are not specified correctly, an error
box appears, stating "Image file not found!" See page 4-36 for
more information.
When the image transfer is complete, the boot order is restored to
start from the original USB Hard Drive, and the workstation
restarts.
If the optional SATA Disk Drive is installed, re-enter the BIOS and
move 'SATA Drive 0' to the top of the BBS as shown below, then
save and restart.
0 - [SATA drive 0]
1 - [IDE 0/Pri Master] CF Card
2 - [PXE Boot]
3 - [None]
The Preboot Menu shown above appears.
Prompts for a login:
Type M1cr0s and press [Enter].
Prompts for a password:
Type Quant1c0 and press [Enter].
