Workstation 5A BIOS

Boot

Boot

System Boot Configuration

This tab includes the Boot Device Prioritization order, and enables the ICH8M
SATA and PATA controllers. The Figure below shows the Windows Embedded
CE Configuration.

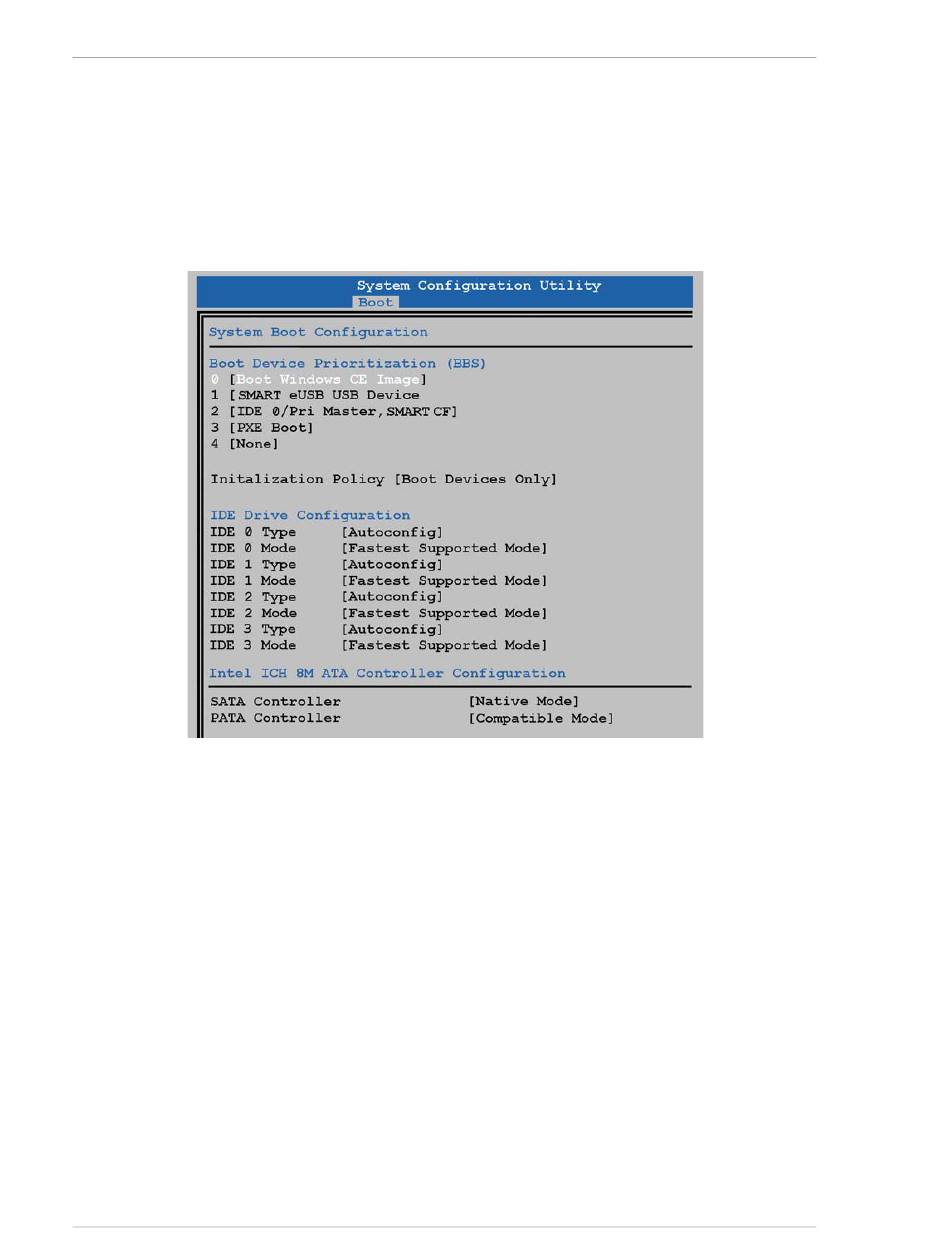

Figure 2-7: BIOS System Configuration Utility - Boot Tab

Boot Device Prioritization - BIOS Boot Specification (BBS)

This section contains the device boot order for the supported operating
systems. The BBS is populated based on the Factory Default settings selected
from the Exit tab. Each default is listed below. Note that BIOS Version Q2010g
adds new boot defaults.

Windows CE Boot Configuration (All BIOS Versions)

Selecting 'Reload WINCE Factory Default Settings from the Exit tab
populates the boot order as shown below.
0 - [Boot Windows CE Image] <- Required to Boot From NK.BIN file.
1 - [SMART eUSB USB Device] <- USB Hard Drive Brand/Model
2 - [IDE 0/Pri Master, CF 256M] <- 256M CF Card Installed
3 - [PXE Boot]
2-10 Workstation 5A Setup Guide - Fourth Edition
