Sio - Oracle MICROS Workstation 5A Setup Manual

Workstation 5A BIOS

SIO

SIO

The SIO selection displays the WS5A COM and LPT Port resources. The
COM port resources are factory configured and should not be changed.

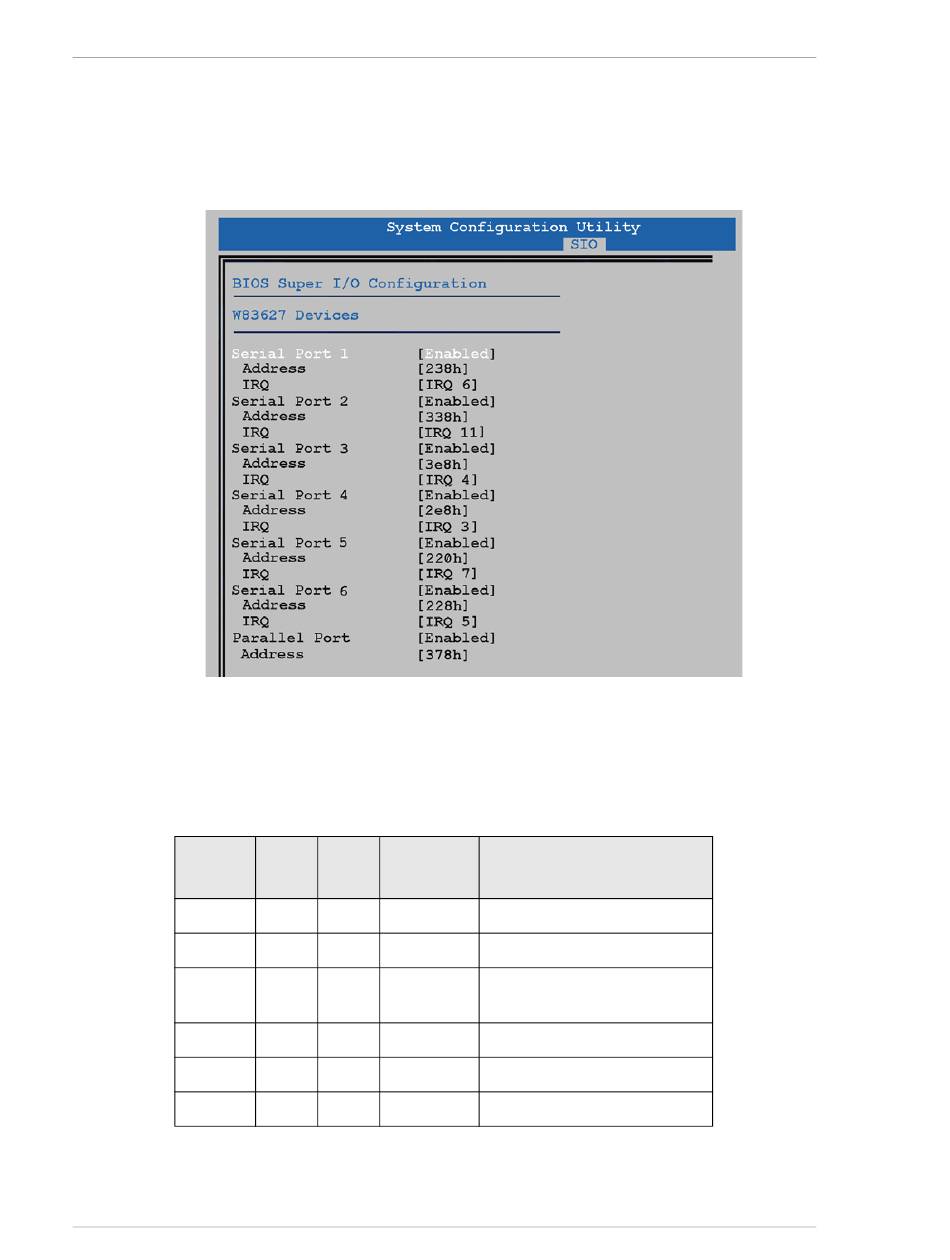

Figure 2-10: BIOS System Configuration Utility - SIO Tab
The table below describes the WS5A COM Port assignments and identifies the
IO Panel Connector. The resources apply to all System Board Revisions and
BIOS Versions.
PORT
COM1
COM2
COM3
COM4
COM5
COM6
2-14
I/O
IRQ SIO Port
Addr
238h 6 SIO Port A
338h 11 SIO Port C
3E8h 4 SIO Port B
2E8h 3 SIO Port D
220h 7 SIO Port E
228h 5 SIO Port F
Workstation 5A Setup Guide - Fourth Edition
Connector/
Function
CN2 - DB9M
CN8-2, RJ45-RS232
CN3/J2, Integrated/Pole
Display
CN9-B - IDN
CN9-A, RJ45-RS232
CN13, MSR
