Installing and Operating the Workstation 5A
Operation

Booting to Windows Embedded CE 6.0 R3

As the POST completes, the splash screen clears, and a series of custom
pre-boot firmware utilities start executing.
• If the Blue splash screen does not appear, or the operating system does
not start, refer to Chapter 5 for troubleshooting information.
The first pre-boot utility ensures that a CF Card and USB Hard Drive are
installed, since these are required components for Windows Embedded CE
6.0 R3.
Next, pre-boot Firmbase applications FlashCE and Platform Update
execute. Flash CE checks the CF Card for an NK.BIN file, then Platform
Update checks the CF Card for the BIOS binary file.

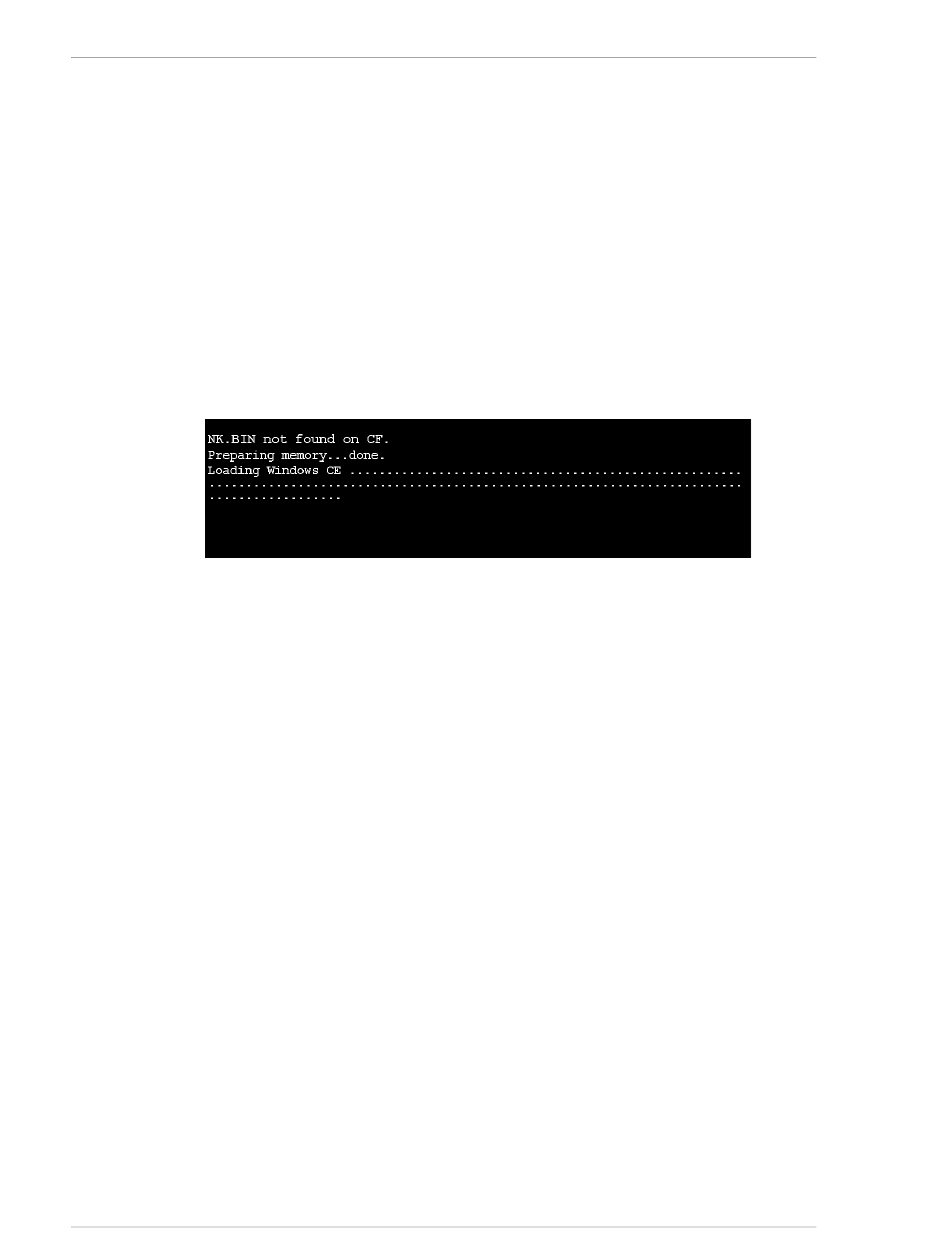

Figure 4-12: Booting to Windows Embedded CE 6.0
• The message 'NK.BIN not found on CF,' appears on the first line. This
message is produced by FlashCE and is a simply a statement that the
upgrade file is not present.
•
•
• The prompt 'Loading Windows CE' appears, followed a series of dots
that move from left to right across the screen as Windows Embedded
CE 6.0 starts up.
•
• After several seconds, the Windows Embedded CE 6.0 R3 desktop
appears. The Operator LED stops blinking and turns solid white.
• If a POS Application is already installed, it starts after the desktop
appears. If no application is installed, the CAL starts and presents a
password screen. See the 'Starting the Windows CE Workstation for
the First Time' section.
4-16
If the NK.BIN file is present on the CF Card, the message
'Updating the Operating System - Please Wait' appears on the
display.
If the BIOS Binary file is present, the message 'Updating the BIOS,
please wait.' See chapter 3 for more information about updating the
BIOS.
Each dot represents one block of data read from the NK.BIN file.
