POSReady Recovery CF - Recovery Button at Splash Screen

The Workstation 5A Recovery Button is accessed from the bottom of the unit
as shown in Figure 4-19.
1. Power off the workstation.
• If using BIOS Version Q2010g or Q2011d, connect a USB Keyboard to
enter the recovery password (unless the password requirement is
disabled).
2. Install the Recovery CF in the CF Riser Card.
• MICROS recommends the POSReady 2009 Recovery CF remain
installed in the CF Daughter Card at all times to comply with licensing
requirements.
3. Be sure to remove all USB Flash Drives, Dongles, Thumb Drives or
'Sticks' connected to the IO Panel USB Ports.
4. Use the power button to start the workstation.
5. Observe the LCD and press the Recovery Button when the Blue BIOS
splash /w MICROS logo screen appears, shown in the Figure below.

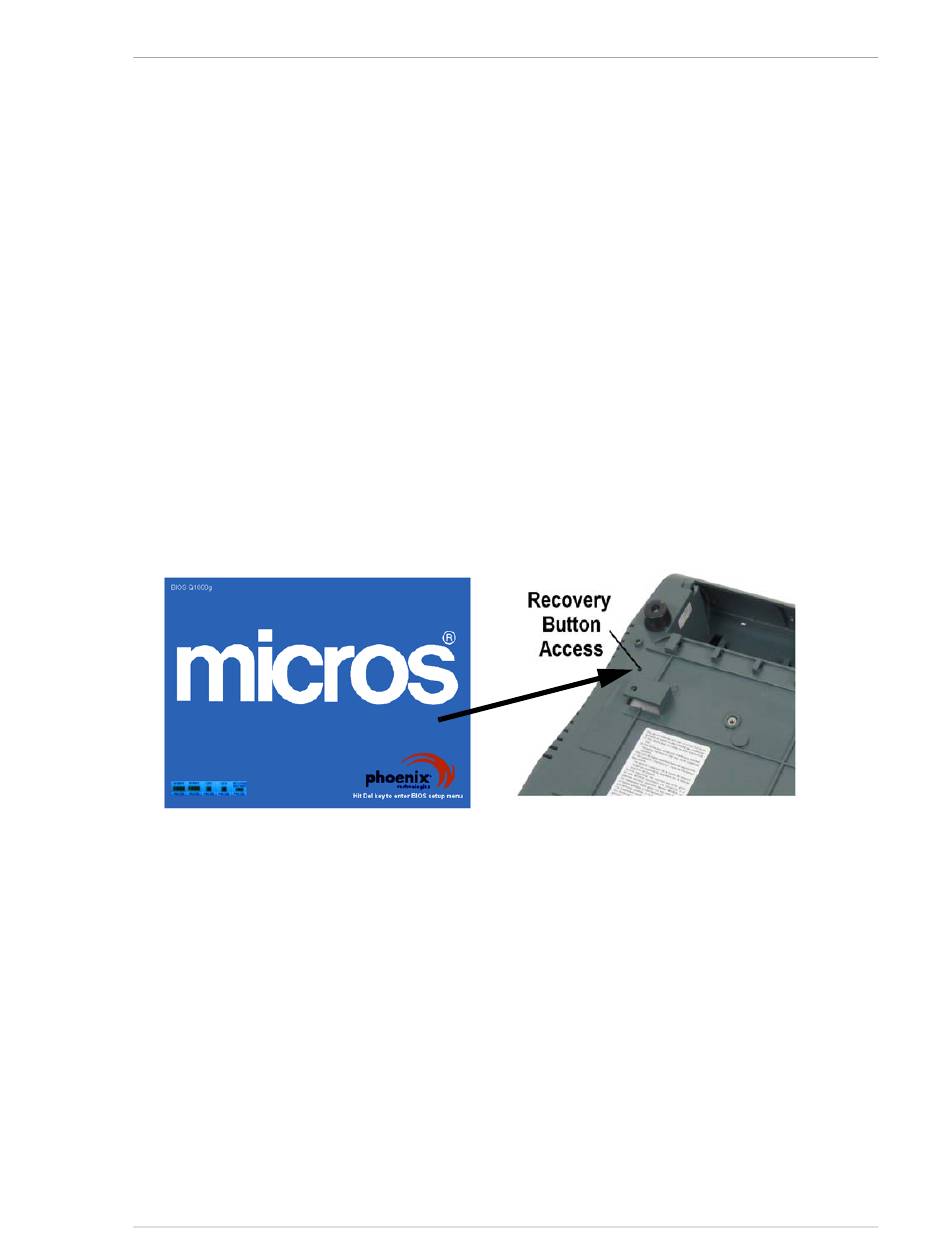

Figure 4-20: Press the Recovery Button when the Blue Splash Screen Appears
BIOS Q1000g (Password not Required)
• The workstation restarts, and boots from the Recovery CF. A series of
prompts appear, including 'Loading RAM Disk Image', followed by a
'Starting Windows Pre-boot Environment'.
• After a brief amount of time, a Command Window appears, followed
by 'Loading Recovery Script...'
• If the image specified in the RECOV.DAT file is present, Ghost32 starts
and transfers the image.
• If the path and image name are not specified correctly, an error box
appears, stating "Image file not found!" See page 4-36 for more
information.
