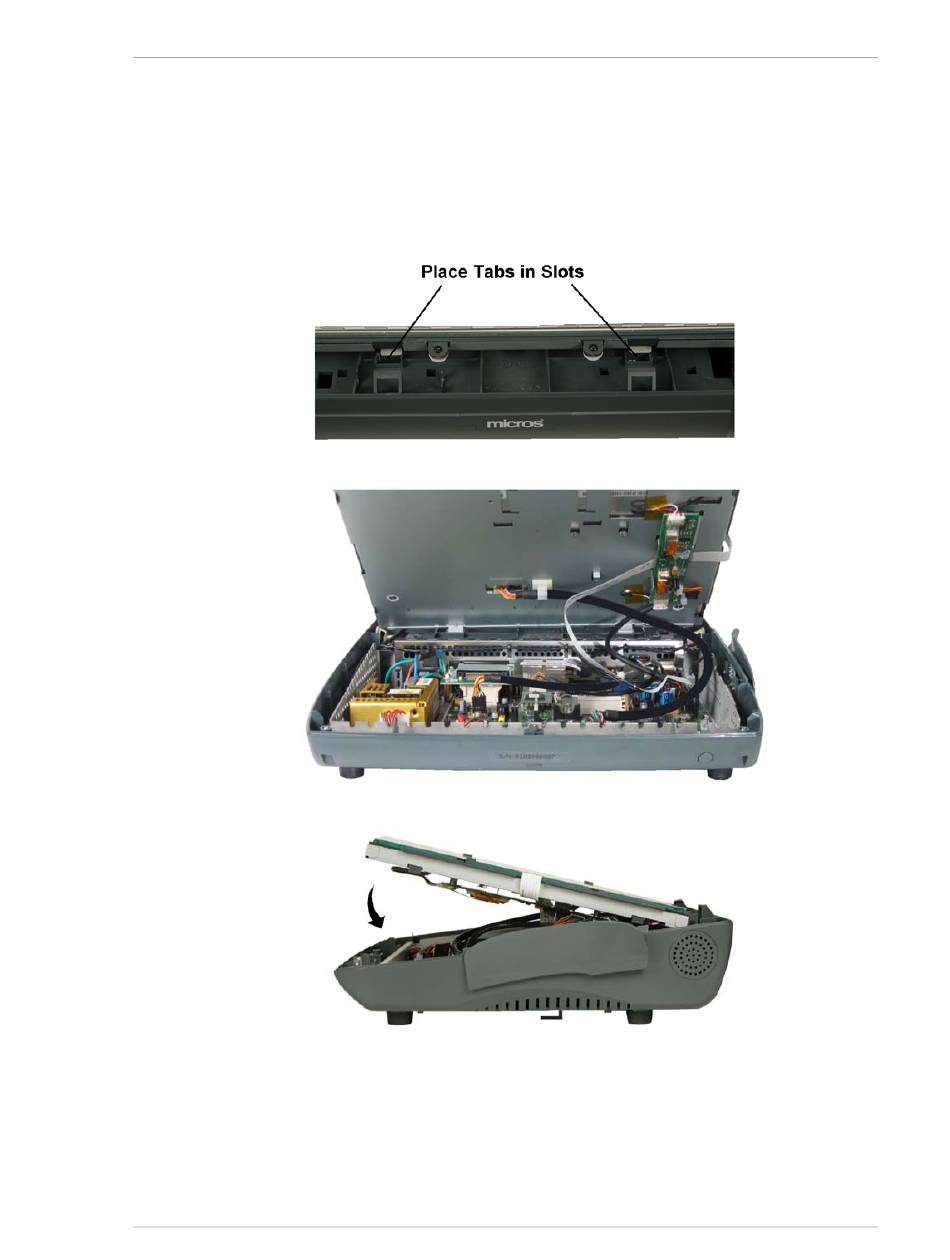

4. Install the LCD/Touchscreen Assembly in the base. The top of Figure 3-35,
below shows the tabs at the rear of the assembly and the slots in the base.
Insert the tabs into the base.
5. Before closing, make sure the LVDS cable is positioned as shown below
and the backlight cable does not rest on the chassis lip.
Figure 3-35: Installing the LCD/Touchscreen Assembly
6. Install the screw the secures the LCD/Touchscreen Assembly to the base.
Workstation 5A Setup Guide - Fourth Edition
What's Inside?
Reassembling the WS5A
3-39
