Installing and Operating the Workstation 5A

The IO Panel

Installing the CF Card

•

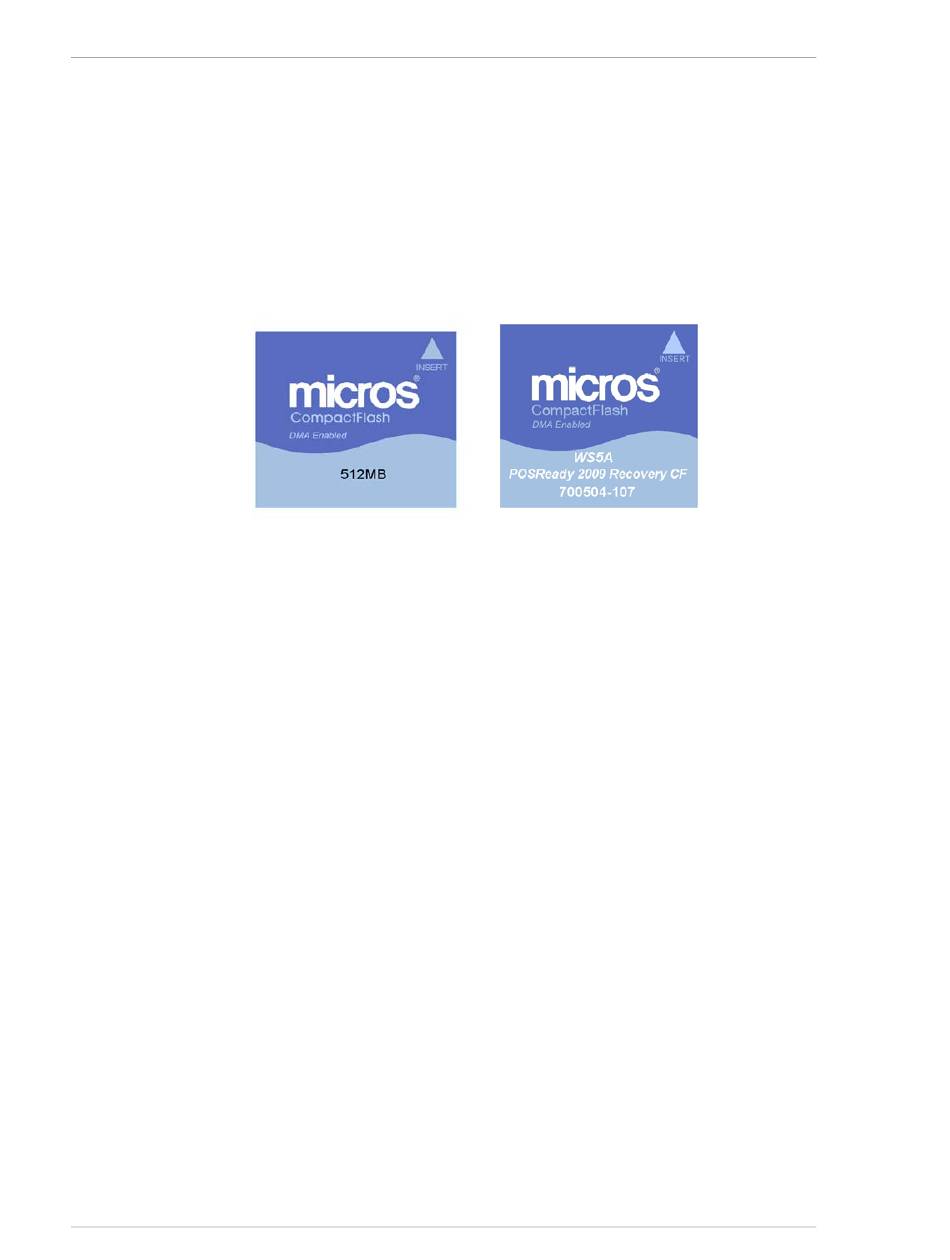

Figure 4-5, displays the custom CF labels that can assist you in

orienting the card when you install it.

•

As you face the IO Panel, install the card with the label showing and

the arrow in the upper left corner.

•

Very little force is required to insert the card. Push the card into the

socket until only a few millimeters are visible.

This connector supports either a stand mounted or remote pole Customer

Display. See Chapter 1 for more information about optional customer displays.

This pair of connectors support standard MICROS +12V cash drawers with

4-pin DIN connectors. +24V Cash Drawers are supported through a BIOS

setting.

This knock-out is reserved for a future option.

4-10

Figure 4-5: Installing the CF Card

Workstation 5A Setup Guide - Fourth Edition
