Installing and Operating the Workstation 5A
Operation
• The CAL is started using the 'Re-Configure CAL' shortcut.

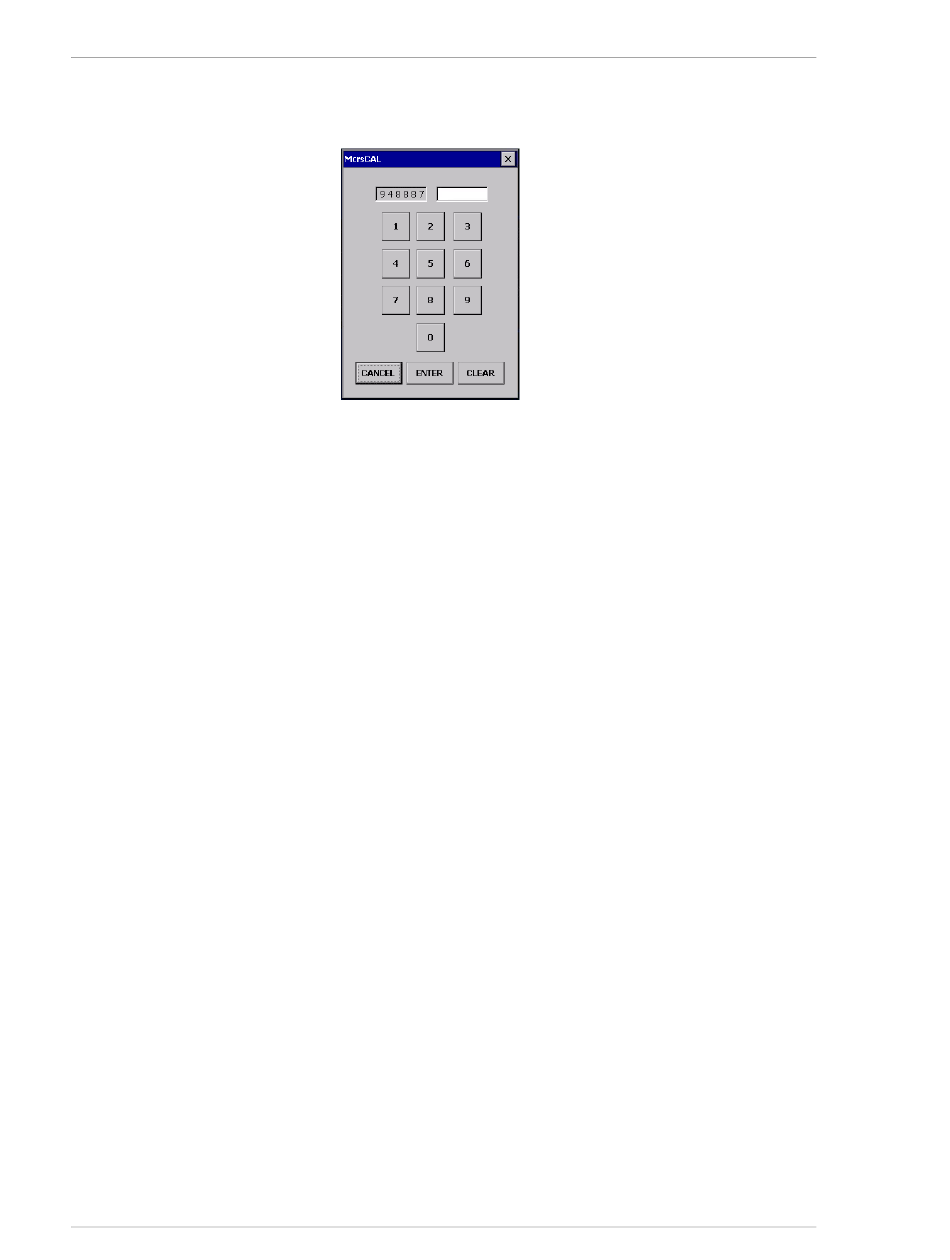

Figure 4-13: Windows CE CAL Password Entry Screen Keypad
The CAL requires a password to continue. Apply the following formula to
the six-digit number that appears at the upper left box.
3. Calculate the password, enter it in the upper right field and press [Enter]. In
this example, the password is 14 (9 x 4 + 8 + 7 = 51).
• After the password entry is complete, the CAL client conducts a search
for CAL servers.
4. Select the CAL Server. If the server is displayed, press [TAB], then use
[UP]/[DOWN] to select. When the server name is complete, press [Enter]
to proceed.
5. Select your Workstation 5A from the list. Double-click the entry.
• Each workstation is pre-programmed with a workstation name, IP
address, and other application related settings.
• If the version of the CAL on your workstation is older than the version
of CAL on the server, CAL will first update itself and reboot before
proceeding to download the application.
The Workstation proceeds to download the application 'package' to the CF
card, updates the registry and reboots when complete. After restarting, the
CAL automatically starts the application.

Using the Search Feature

• Type the name of the server, location, or property you are searching for
or select from the list if available.
• The [Search] button finds an exact match and any characters
concatenated to the match. For example, a search for 'm' will find m,
m1234, m1235, mm, mmm... etc.
4-18
Password = Digit 1 x Digit 2 + Digit 4 + Digit 6
Workstation 5A Setup Guide - Fourth Edition
