Series 2 Cash Drawer

The Series 2 Cash Drawer connector is an 8-pin Mini-IDN. You can convert this connector
into a traditional 4-pin IDN connector by using a P/N 300290-020 cable.
The following table describes the signal name and function of each pin:

Table 6 - Series 2 Cash Drawer Pin and Signal Reference

Pin #
1
2
3,7,8
4
5
6

Customer Display

The customer display port contains the following pins:

System Board Removable Components

You can remove the following components:
1. mSATA (MO-300A)
2. Half-slim SSD (MO-297) (not shown)
3. SD card
Technical Information

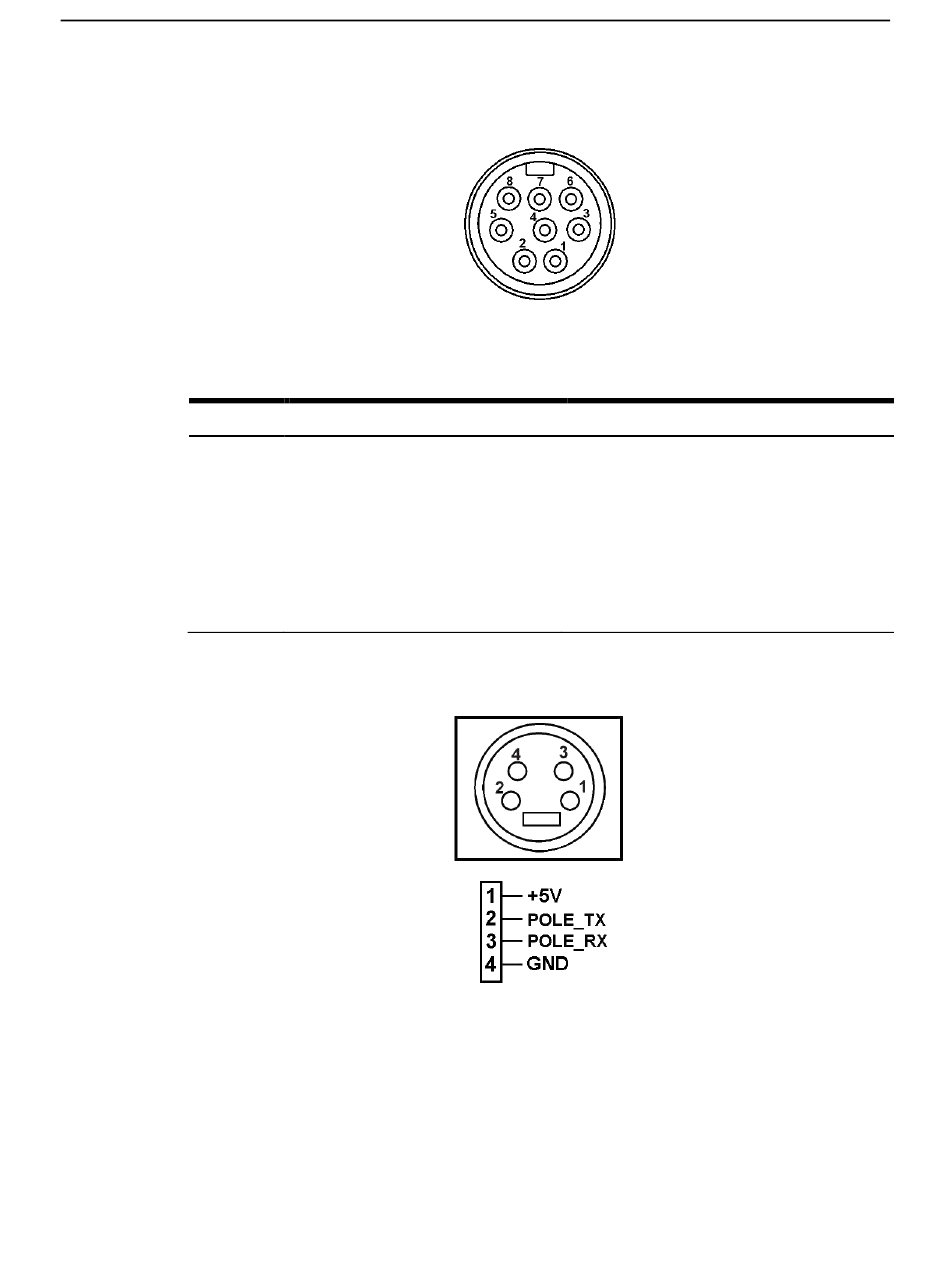

Figure 5 - Series 2 Cash Drawer Pin Reference

Signal name
VCC12 or VCC24
CD_OPEN
Ground
CD_ST
MCU_TX_5V
MCURX

Figure 6 - Customer Display Pin Reference

Description
Cash Drawer power
Open drawer
Signal grounds
Input status from cash drawer
Tx data to Cash Drawer
Rx data from Cash Drawer
