BIOS Version Q1000g: Login or Password not required or
supported. As of this writing, this BIOS version is installed on the
majority of Workstation 5As in the field.
•
BIOS Version Q1010m: A pre-defined log-in and password
required. The Login/Password cannot be disabled or changed.
•
BIOS Versions Q2010g and Q2011d: Requires a pre-defined
password to start recovery. The password requirement can be
disabled through the ODM tab.
The following pages contain detailed recovery procedures using the
Recovery Button or ODM tab.
WINCE Factory Restore - Recovery Button at Splash Screen

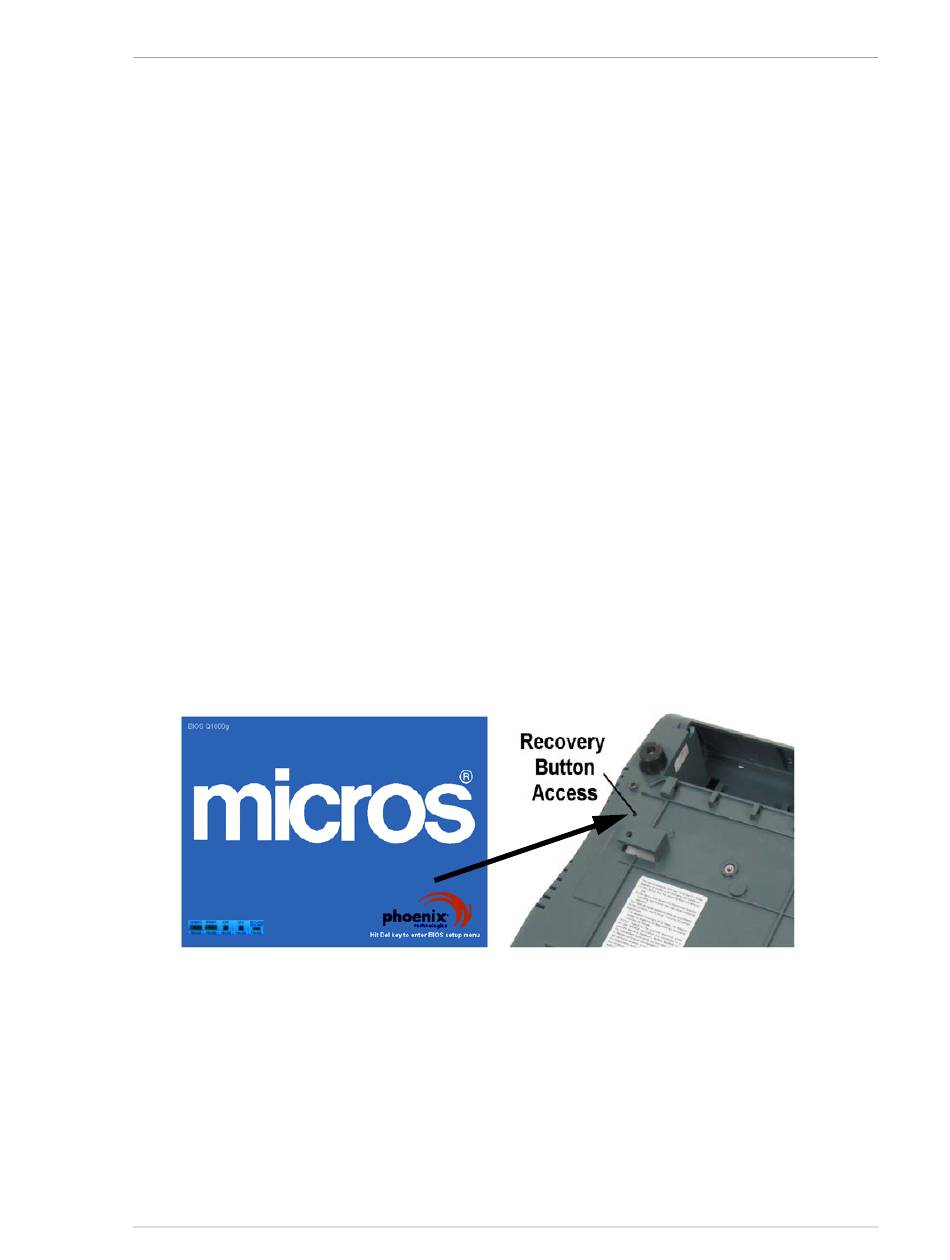

The Workstation 5A Recovery Button is accessed from the bottom of the unit
as shown below.
1. Power off the workstation.
•
If using BIOS Version Q1010m, Q2010g or Q2011d, connect a USB
Keyboard to enter the recovery password.
2. Be sure to remove all USB flash drives, sticks, or thumb drives, from the
IO Panel USB Connectors.
3. Power-up the workstation using the power button.
4. Observe the LCD and press the Recovery Button when the Blue BIOS
splash /w MICROS logo screen appears, shown in the Figure below.
Figure 4-19: Press the Recovery Button when the Blue Splash Screen Appears
BIOS Q1000g (Password not Required)
•
The workstation restarts, displays the Blue splash screen, then:
"Factory Recovery In Progress - Please Wait..."
•
Windows CE Factory Restore takes from three to five minutes to
complete, then formats the CF Card. The Workstation 5A restarts and
boots to Windows CE in the out-of-box state.
Workstation 5A Setup Guide - Fourth Edition
Installing and Operating the Workstation 5A
Workstation 5A Recovery
4-27
