Turning the Workstation from NOPOWER to ON

When the workstation is NOPOWER, the Operator LCD will be blank and the
Operator LED is off. See Chapter 1 for a description of the supported power
management states.
1. Be sure the workstation is connected to AC power.
2. Press the power button, then release it.
• The Operator LED starts flashing White.
• After several seconds, the LCD displays the BIOS splash screen shown
in the Figure below. The MICROS BIOS Version is displayed in the
upper left corner of the screen.
As the BIOS Splash Screen displays, the unit is performing a Power On
Self Test (POST) of the system board hardware. Each test is displayed
as a series of icons that appear at the lower left corner of the screen.
• If a USB keyboard is attached to the unit, pressing the [Del] key just
after the splash screen appears enters BIOS System Configuration
Utility. Refer to Chapter 3 for more information.
•
•
Workstation 5A Setup Guide - Fourth Edition
Installing and Operating the Workstation 5A

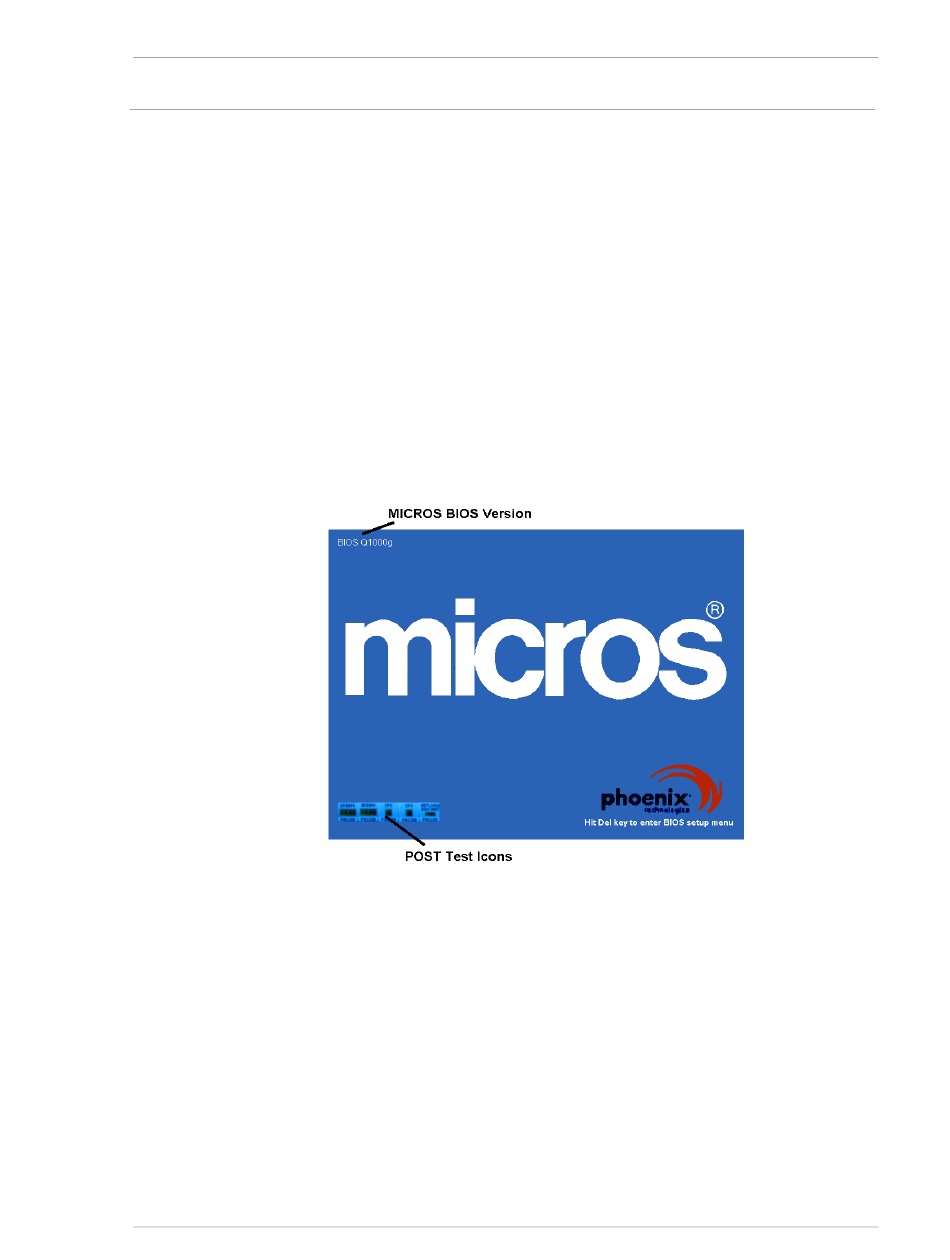

Figure 4-11: The BIOS Splash Screen
If the workstation contains Windows Embedded CE 6.0, see the
next page.
If the workstation contains a WIN32 operating system such as
POSReady 2009, see page 4-16.
Operation
4-15
