7 - Maintenance

The black rubber platen roller in the image printer,

The magstripe encoder in the image printer.
Cleaning the card path involves feeding a cleaning card into the manual feed slot and telling the EC2000
to move it through the path.

7.1.6 How to Clean the Card Path

To clean the image print head using a cleaning card, follow these steps (see
demonstration):
1) Obtain a cleaning card from the EC2000 Cleaning Kit.
2) Remove the cleaning card from its package and let it dry for one minute.
3) Open the EC2000's top access door (see section 6.5 Top Access Door Security).
4) Remove the image printer ribbon (see section 6.8.2 How to Install / Remove the Image Printer
Ribbon) and close the image printer.
5) Using the touchscreen, navigate to
Clean Printer...
6) Press the
7) Press the Clean Printer (Manual Feed)
show a popup dialog box. Leave it there for now.
8) Insert the cleaning card into the image printer's input slot on the right side (see Figure 7-2) and press
OK to close the dialog box. The EC2000 will run the cleaning card through the card path and eject it
into the card rejection bin when done.
9) If the cleaning card sticks in the manual feed slot, let it dry for one more minute and try again.
10) Remove and dispose of the cleaning card.
11) If you have not already done so, clean the card cleaning roller and print head.
12) Re-install the image printer ribbon.
13) Close the image printer (see section 6.8 Image Printer), and close the top access door.
ExpressCard 2000| Instant Issuance Card Personalization System | User Installation and Operation Manual
Page 54
Menu > Maintenance
button to launch the
Printer Utility
button to begin the cleaning process. The EC2000 will

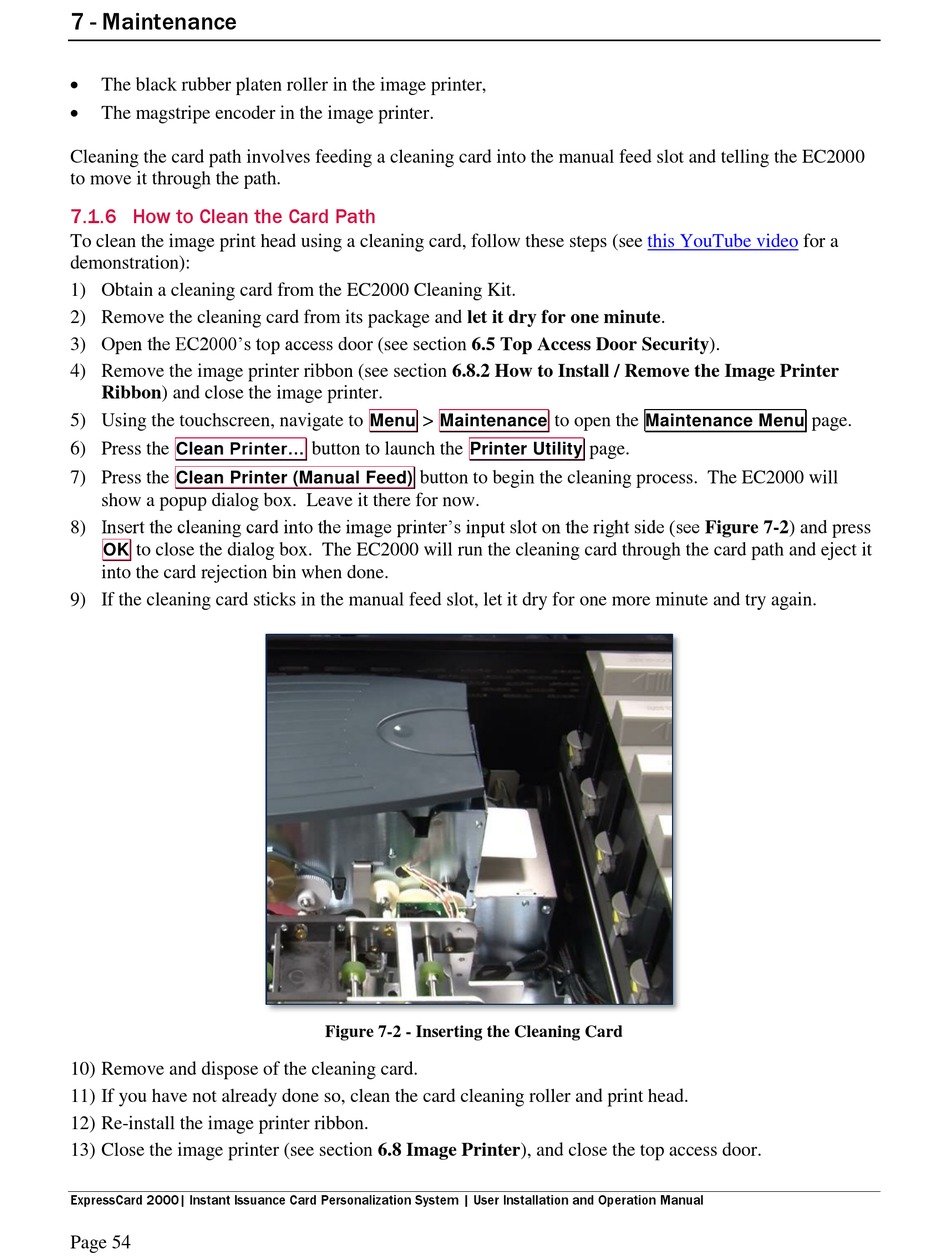

Figure 7-2 - Inserting the Cleaning Card
this YouTube video
to open the Maintenance Menu
page.
for a
page.
