6 - Operation
6.9

Foil Tipper

6.9.1 About the Foil Tipper

The EC2000 can tip embossed characters with multiple foil colors, depending on which type of tipper foil
is loaded. For instructions on inserting and removing tipper foil rolls, see section 6.9.2 How to Install /
Remove the Tipper Foil. To order tipper foil rolls specifically designed for use with the EC2000,
contact your sales representative or see Appendix A.

6.9.2 How to Install / Remove the Tipper Foil Roll

To replace the EC2000's tipper foil roll, follow these steps (see
1) Determine what color foil you wish to install and obtain a new tipper foil roll.
2) Open the top access door (see section 6.5 Top Access Door Security).

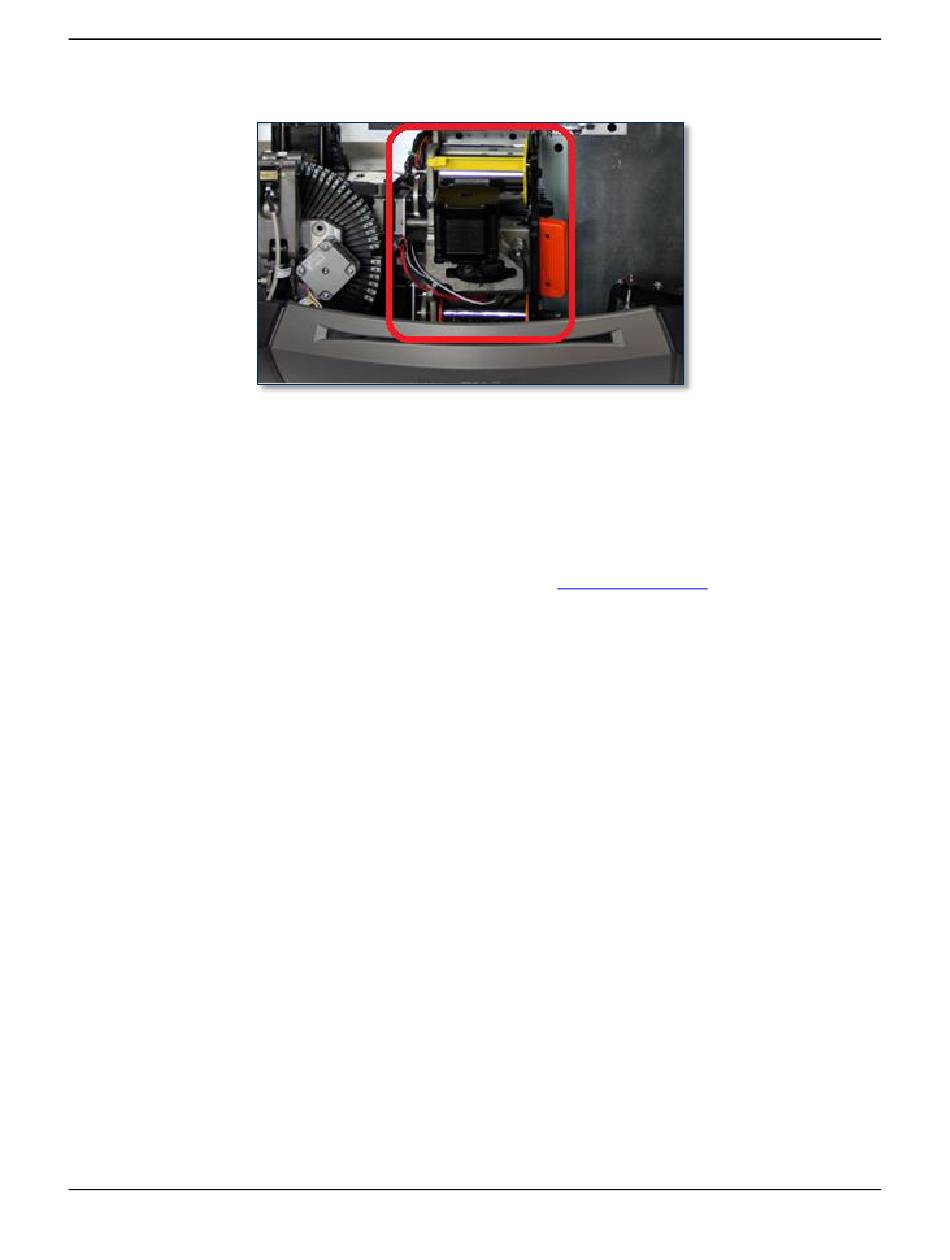

3) Locate the foil tipper on the inside front of the EC2000 (see section 2.2 Introduction to EC2000
Components for details).
4) Press down on the orange release lever on the right side of the foil tipper.
5) Gently pull the foil spool assembly to the right and remove it from the EC2000.
6) Pull the small yellow foil release tab at the end of the yellow spool.
7) Remove the tipper foil roll from the yellow spool and set it on the tabletop.
8) Remove the tipper foil roll from the orange spool and set it on the tabletop.
9) Dispose of the used tipper foil roll per your company's standard disposal procedures.
10) Place the orange core of the new roll on the orange spool, being careful to thread the foil under the
two foil guide pins as shown in Figure 6-27.
ExpressCard 2000| Instant Issuance Card Personalization System | User Installation and Operation Manual
Page 45
this YouTube video for a demonstration):
