6 - Operation
3) Locate the image print head inside the EC2000. See section 2.2 Introduction to EC2000
Components for details.
4) Press the image printer's release button to unlock it as shown in Figure 6-22.
5) Gently lift up the print head until it swings completely open and stays in position.
6) Lift both the supply spool and the takeup spool of the ribbon out of the image printer (Figure 6-24)
and set it aside.
ExpressCard 2000| Instant Issuance Card Personalization System | User Installation and Operation Manual
Page 41

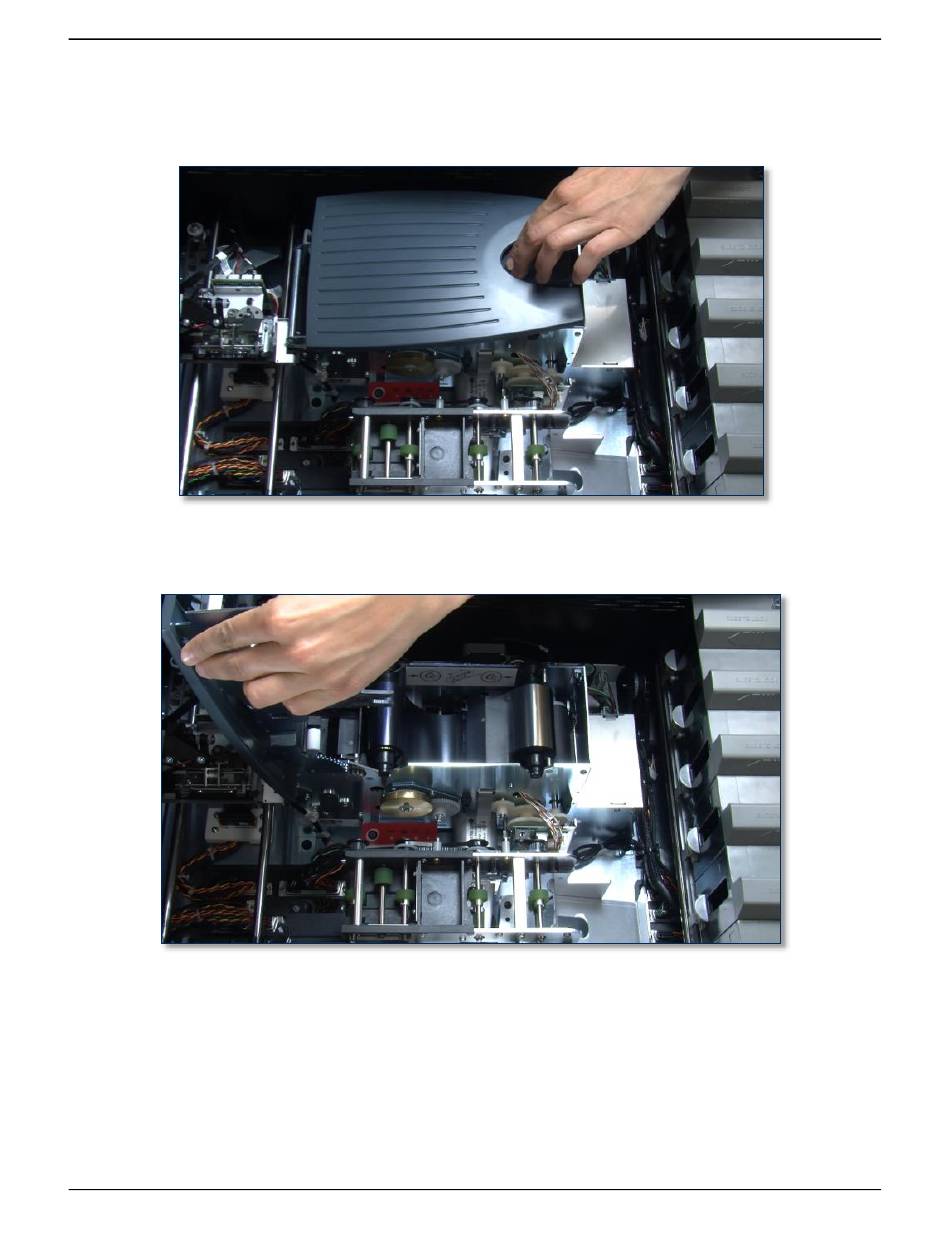

Figure 6-22 - Unlocking the Image Print Head
Figure 6-23 - Lifting the Image Print Head
