Magtek ExpressCard 2000 User's Installation And Operation Manual page 13

3 - Planning and Preparation

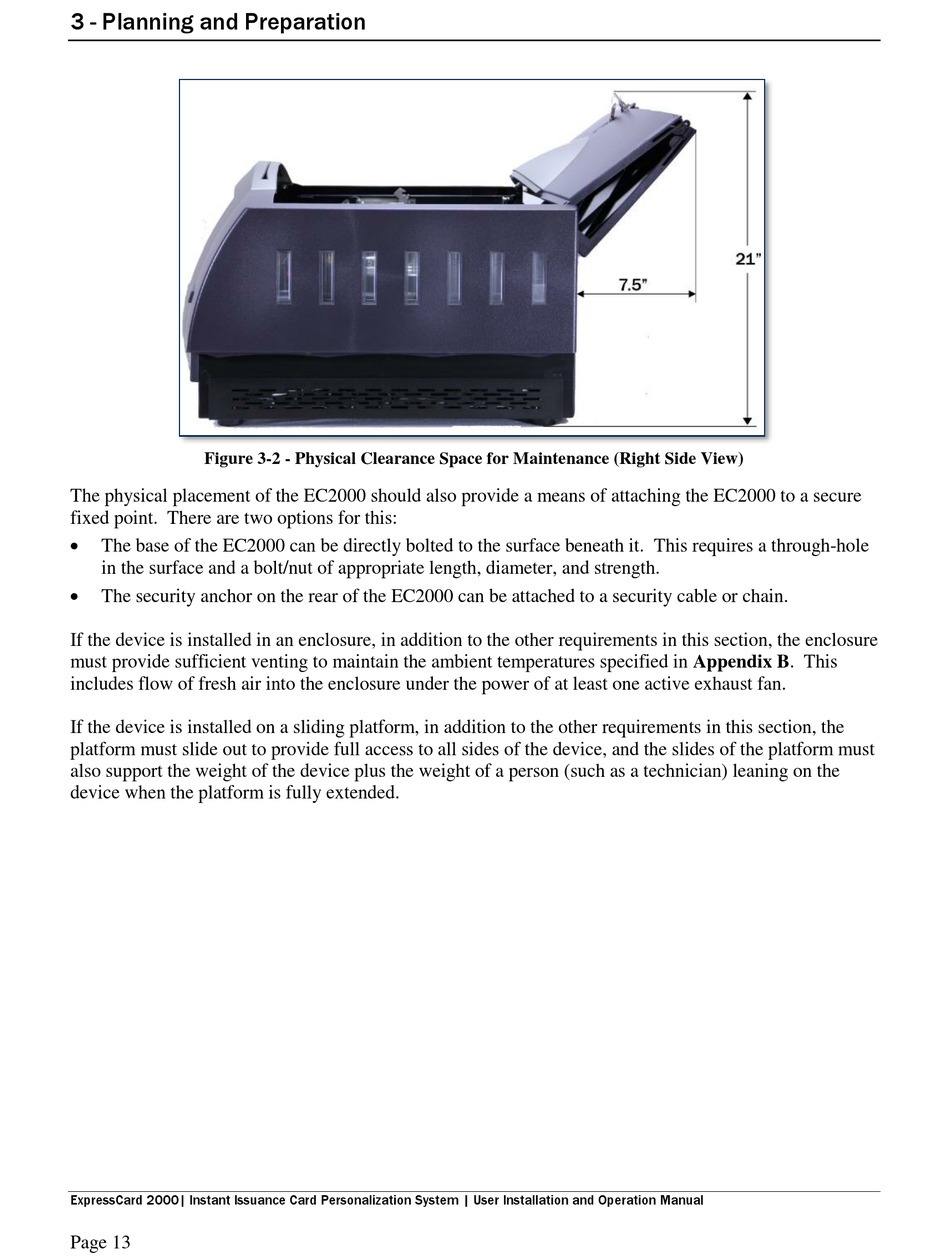

Figure 3-2 - Physical Clearance Space for Maintenance (Right Side View)
The physical placement of the EC2000 should also provide a means of attaching the EC2000 to a secure
fixed point. There are two options for this:

The base of the EC2000 can be directly bolted to the surface beneath it. This requires a through-hole
in the surface and a bolt/nut of appropriate length, diameter, and strength.

The security anchor on the rear of the EC2000 can be attached to a security cable or chain.
If the device is installed in an enclosure, in addition to the other requirements in this section, the enclosure
must provide sufficient venting to maintain the ambient temperatures specified in Appendix B. This
includes flow of fresh air into the enclosure under the power of at least one active exhaust fan.
If the device is installed on a sliding platform, in addition to the other requirements in this section, the
platform must slide out to provide full access to all sides of the device, and the slides of the platform must
also support the weight of the device plus the weight of a person (such as a technician) leaning on the
device when the platform is fully extended.
ExpressCard 2000| Instant Issuance Card Personalization System | User Installation and Operation Manual
Page 13
