7) MagTek recommends cleaning the card cleaning roller, card path, and print head when replacing the
ribbon. See section 7.1 Cleaning for more information.
To install a color or monochrome ribbon in the image printer, follow these steps:
1) Remove the ribbon from the packaging and remove any stickers or bands tying the spools together.
The spool with all the ribbon on it is called the supply spool, and the other end is the take-up spool.
2) Orient the ribbon so the supply spool is near the card stock hoppers. The ribbon stretched between
the two spools should be facing toward the ceiling (see Figure 6-25).
3) Place the supply spool between the notches near the hinge of the print head.
4) Unroll the take-up spool and place it between the notches on the other side of the print head.
5) Close the print head and press until you feel it lock.
6) Calibrate the ribbon sensor (see section 6.8.4 How to Select and Synchronize the Image Printer
Ribbon for details).
7) Close the EC2000's top access door.
ExpressCard 2000| Instant Issuance Card Personalization System | User Installation and Operation Manual
Page 42

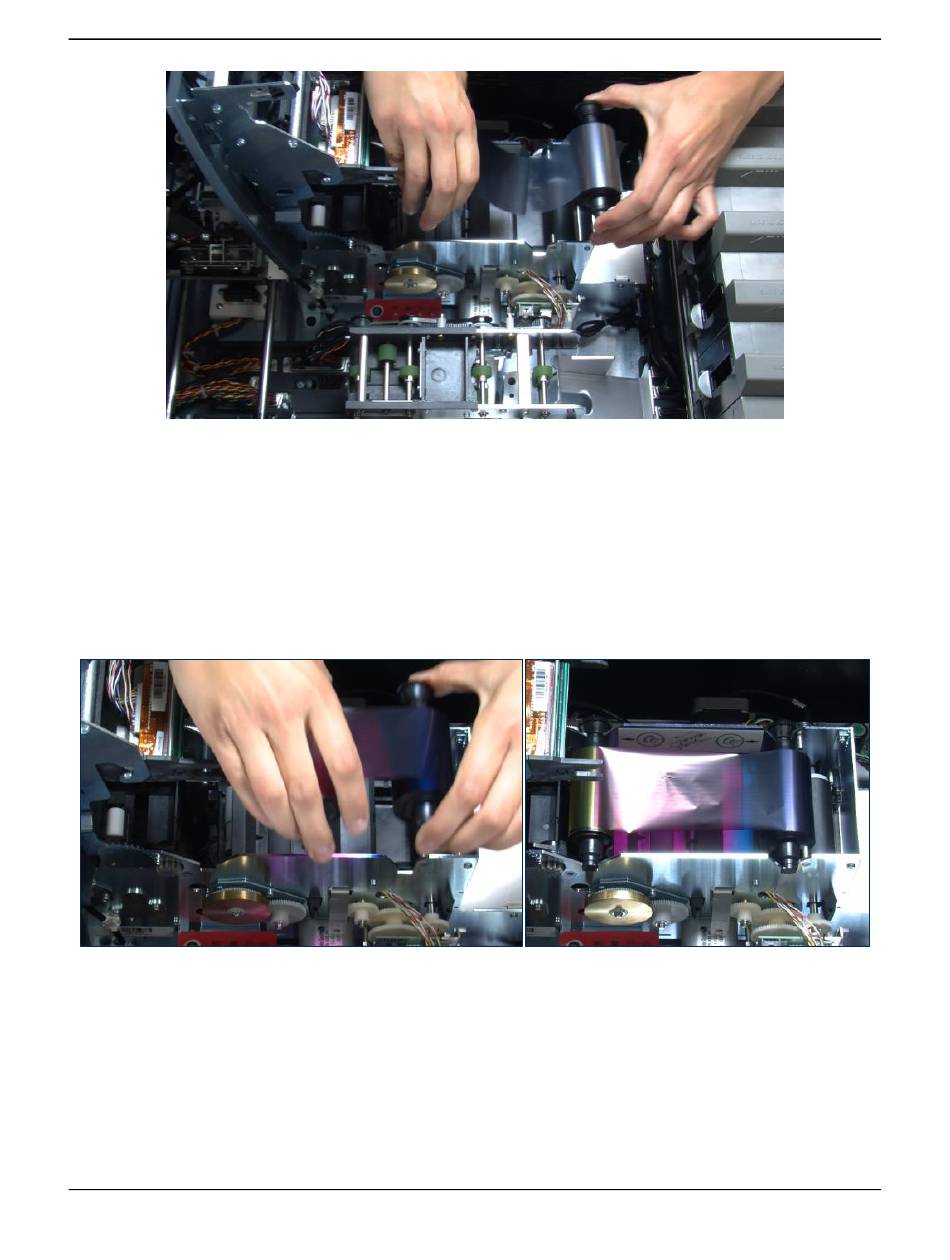

Figure 6-24 Removing the Image Printer Ribbon
Figure 6-25 – Inserting the Image Printer Ribbon
