6 - Operation
11) Pull the small yellow foil release tab at the end of the yellow spool, then place the large portion of the
new roll on the yellow spool as shown in Figure 6-26, being careful to thread the foil over the geared
guide pin and under the bottom guide pin.
12) Press the small yellow foil release tab at the end of the yellow spool to secure the new roll.
13) Rotate the orange core until you can press it firmly onto the orange spool. Continue rotating until the
foil is tight across the guide pins as shown in Figure 6-27.
14) Place the foil spool assembly back into the EC2000 foil tipper, carefully threading the foil under the
tipper heater. Press firmly until you feel a click. If the tipper foil spool assembly does not click
into place, rotate the orange spool a bit and try again.
15) Close and secure the top access door.
ExpressCard 2000| Instant Issuance Card Personalization System | User Installation and Operation Manual
Page 46

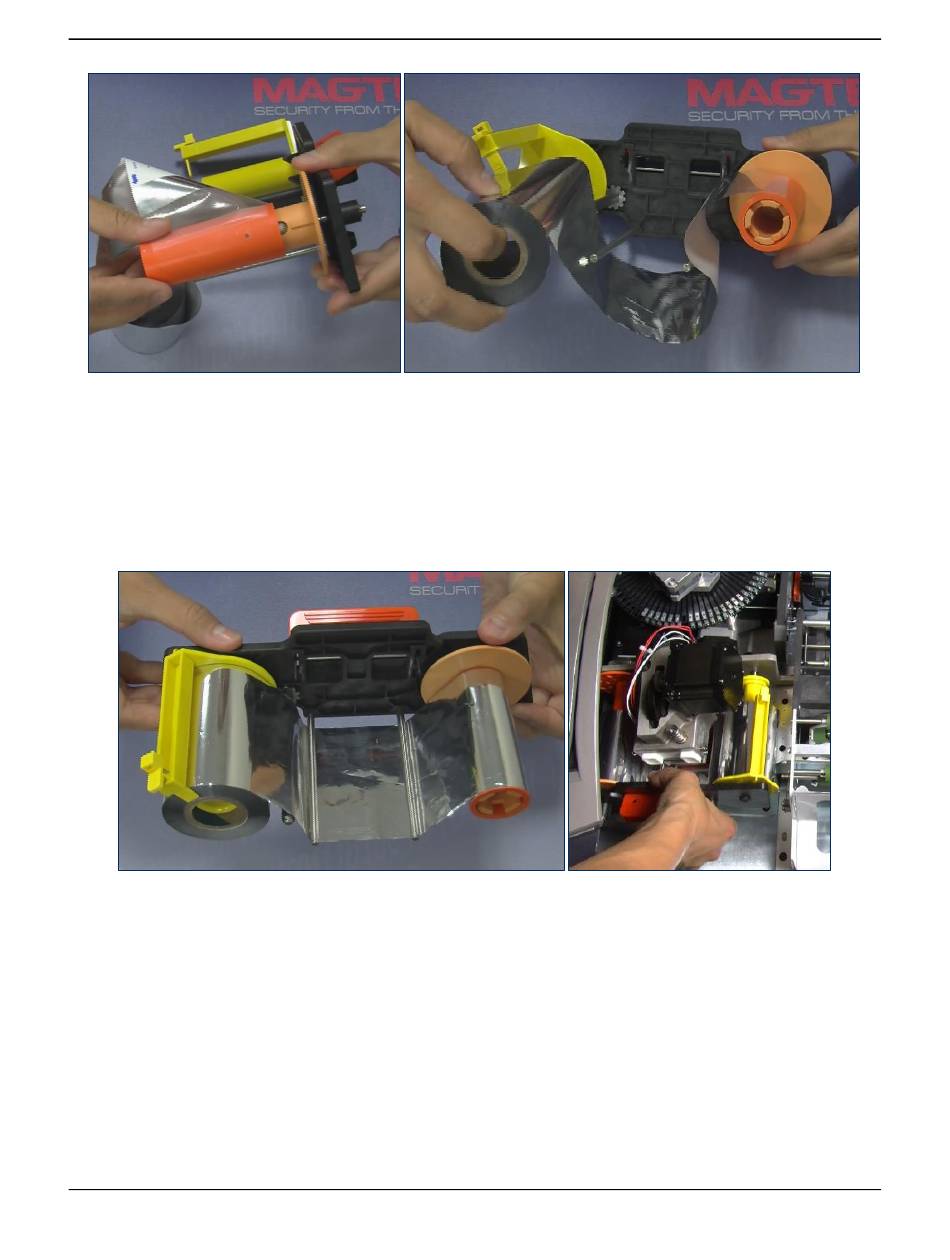

Figure 6-26 - Putting Foil Roll On Spool Assembly
Figure 6-27 - Re-inserting the Tipper Foil Spool Assembly
