6 - Operation

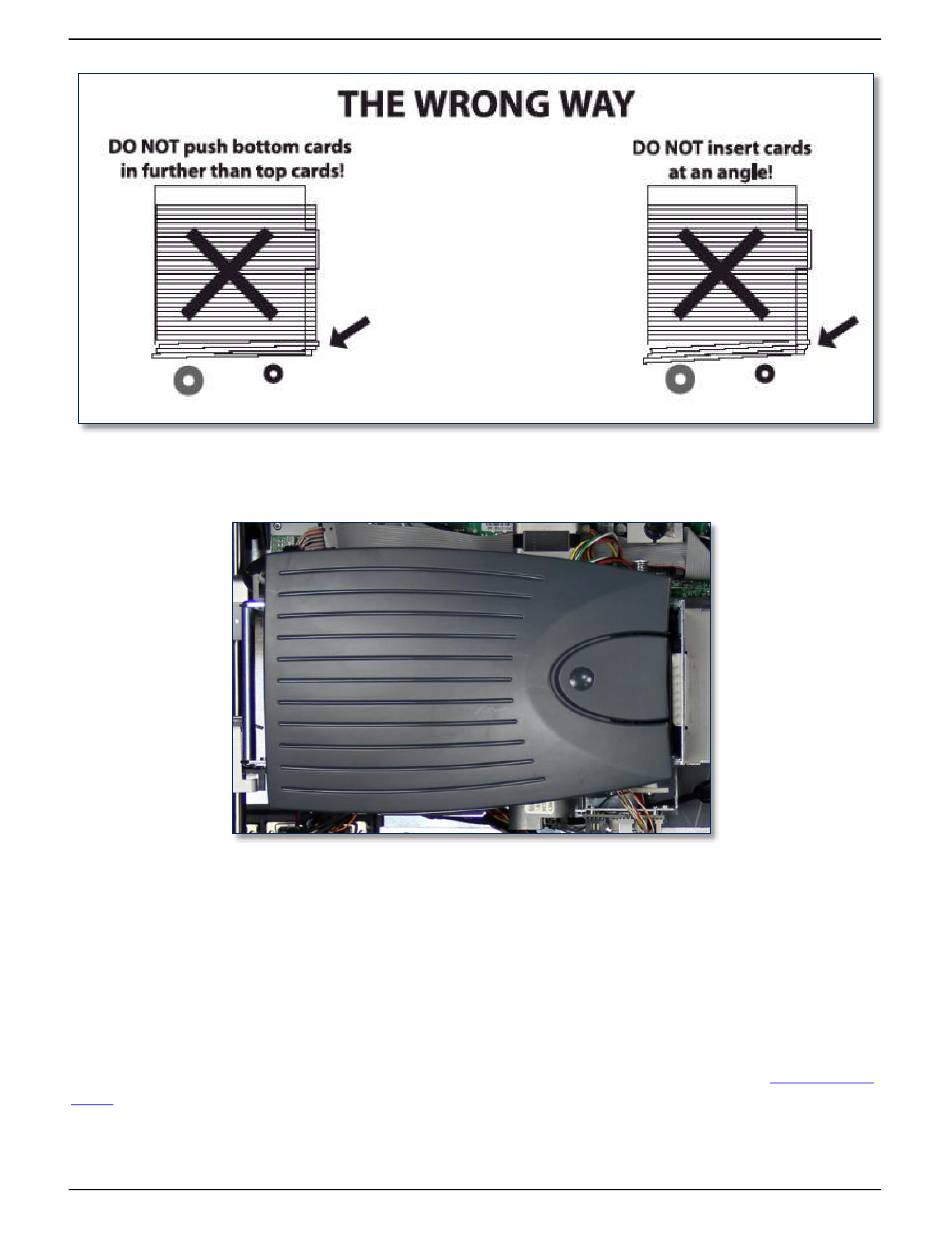

Figure 6-21 - Incorrect Card Stock Hopper Loading
6.8

Image Printer

6.8.1 About the Image Printer

Depending on which type of ribbon is loaded, the EC2000 can produce color or monochrome images on
the front and back of card stock. For instructions on loading ribbons into the image printer, see section
6.8.2 How to Install / Remove the Image Printer Ribbon. To order ribbons specifically designed for
use with the EC2000, contact your sales representative or see Appendix A.
Do not touch the colored portion of the ribbon; oil or dirt from hands can impair printing.

6.8.2 How to Install / Remove the Image Printer Ribbon

To remove the color or monochrome ribbon from the image printer, follow these steps (see this YouTube
video for a demonstration):
1) Open the top access door of the EC2000 (see section 6.5 Top Access Door Security for details).
2) Remove any jewelry or accessories that could touch the print head.
