5 - Installation
4) Determine whether the EC2000 will be connected to a local area network (for normal operation) or
will operate as a standalone device (for demonstration purposes only), and connect its network jack
(shown in Figure 5-4) via an appropriate cable. Using the wrong cable can cause connection errors:
a) If the EC2000 will be connected to a Local Area Network (LAN), use a standard Ethernet cable
to connect the EC2000 to the allotted Ethernet jack or network device.
b) If the EC2000 will be used in demonstration mode, use an Ethernet crossover cable to connect the
EC2000 directly to the demonstration computer.
5) Insert the provided AC power cord firmly into the EC2000's power connector (see Figure 5-5), and
connect the other end to a properly grounded AC socket-outlet.
6) Power on the EC2000 (see section 6.2 Powering On, Shutting Down for details).
7) Determine the EC2000's serial number (see section 6.1 Finding the Serial Number).
8) Contact MagTek Support Services and request help with these steps:
a) Learn default passwords, which are required to configure the device (see section 8.4 Passwords
for more information).
ExpressCard 2000| Instant Issuance Card Personalization System | User Installation and Operation Manual
Page 25

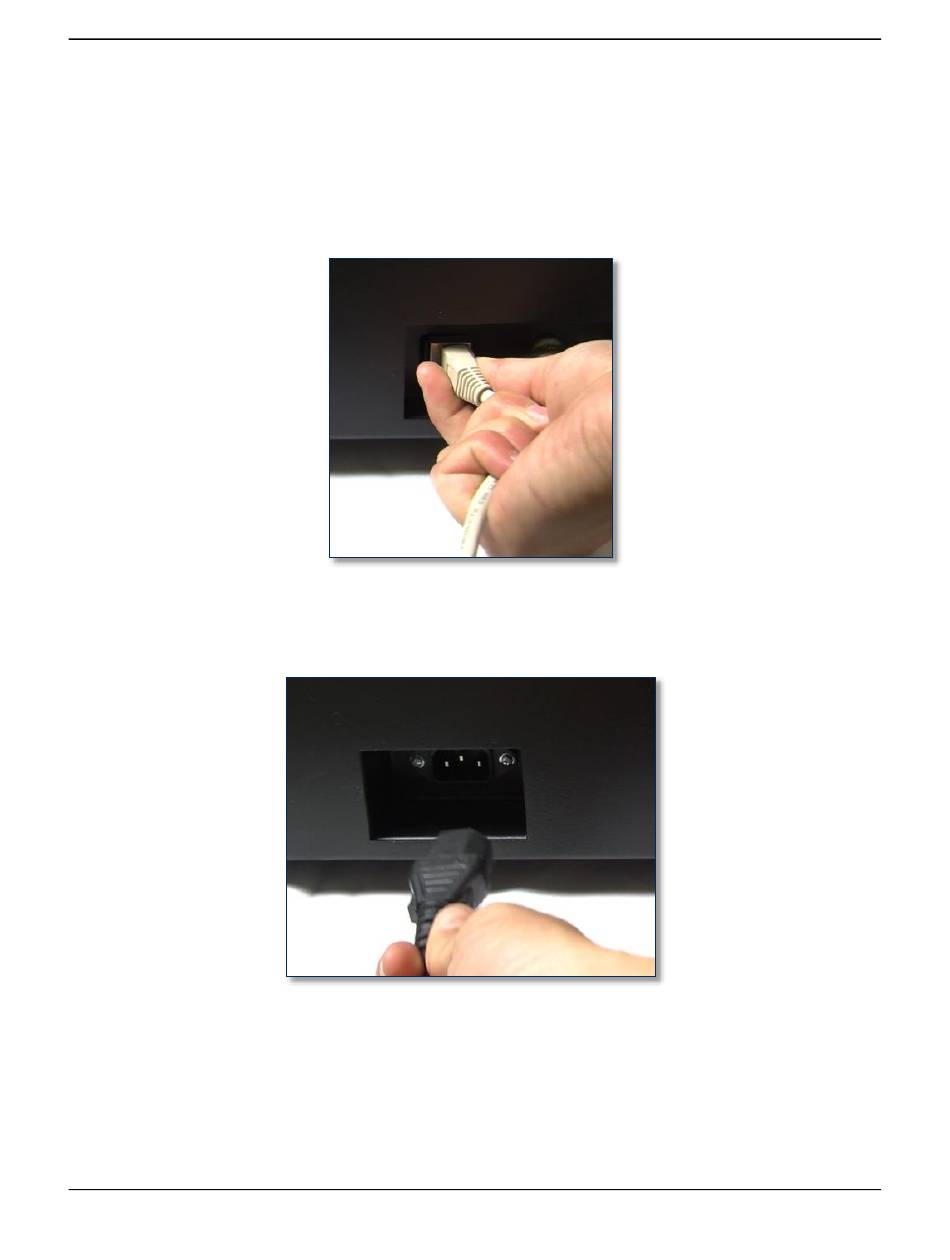

Figure 5-4 - Connecting the EC2000 to a Network
Figure 5-5 - Connecting the EC2000 to Power
