Selection
Step 4
Connect cable to frequency converter.

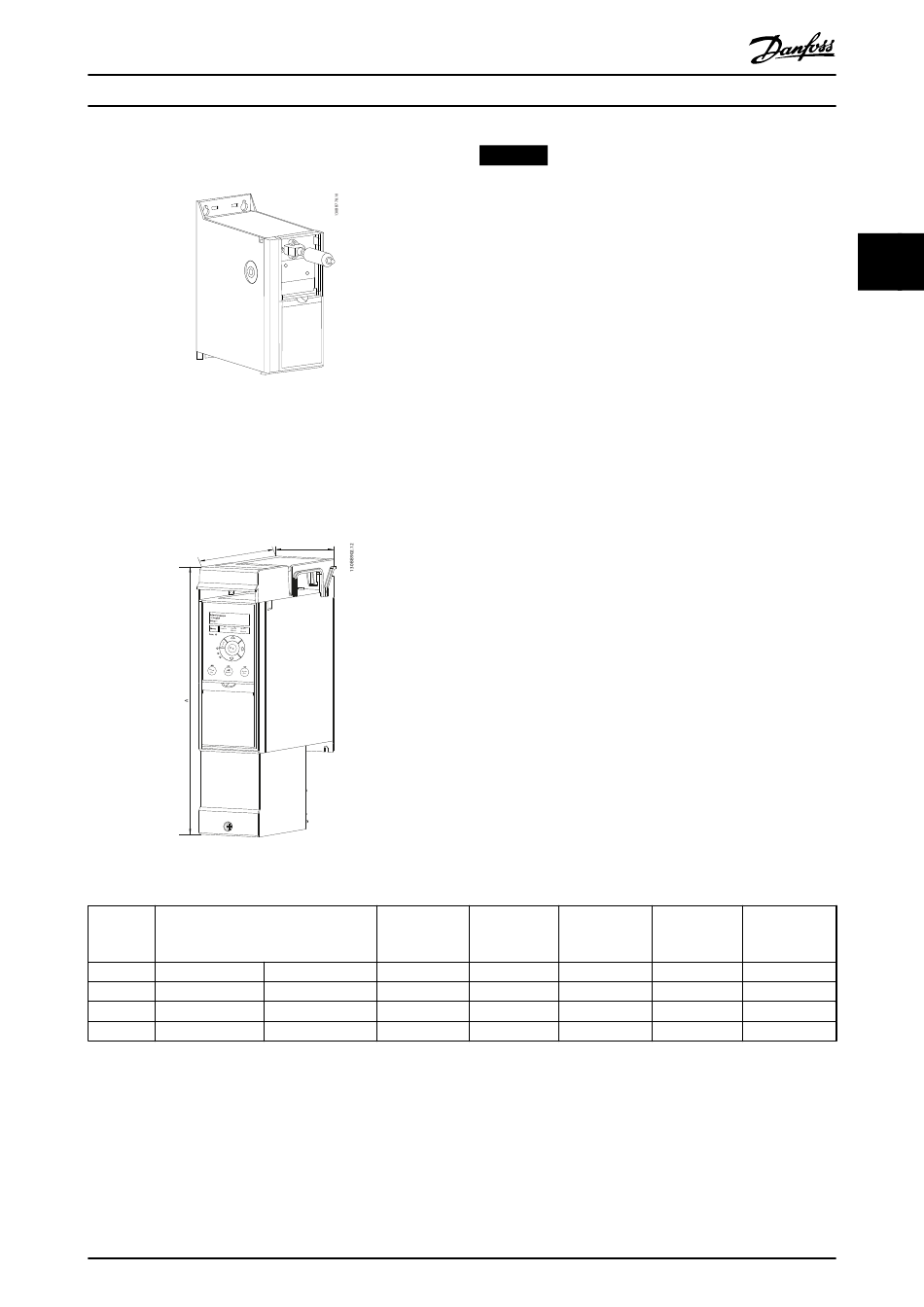

Illustration 3.4 Connect Cable

3.1.3 IP21/TYPE 1 Enclosure Kit

IP21/TYPE 1 is an optional enclosure element available for IP20 units.
If the enclosure kit is used, an IP20 unit is upgraded to comply with enclosure IP21/TYPE 1.
C
On
Warn.
Alarm
Illustration 3.5 H3–H5
Enclosure Cooling capacity
– 3x200–240 V
H3 –
H4 4–5 TR
H5 6.5 TR
Table 3.4 Enclosure Kit Specifications
MG18N202
Design Guide
B
Height [mm/
(in)] A
3x380–480 V –
4–5 TR 346 (13.6)
6.5 TR 374 (14.7)
– 418 (16.5)
Danfoss A/S © 12/2015 All rights reserved.
NOTICE
To fasten connector to the frequency converter, use the
provided thread cutting screws, tightening torque 1.3
Nm.
Width [mm/ Depth [mm/
(in)] B (in)] C
– –
106 (4.2) 210 (8.3)
141 (5.6) 245 (9.6)
161 (6.3) 260 (10.2)
IP21 kit Type 1 kit
ordering ordering
number number
– –
132B0214 132B0224
132B0215 132B0225
132B0216 132B0226
25
3 3
