How to Install

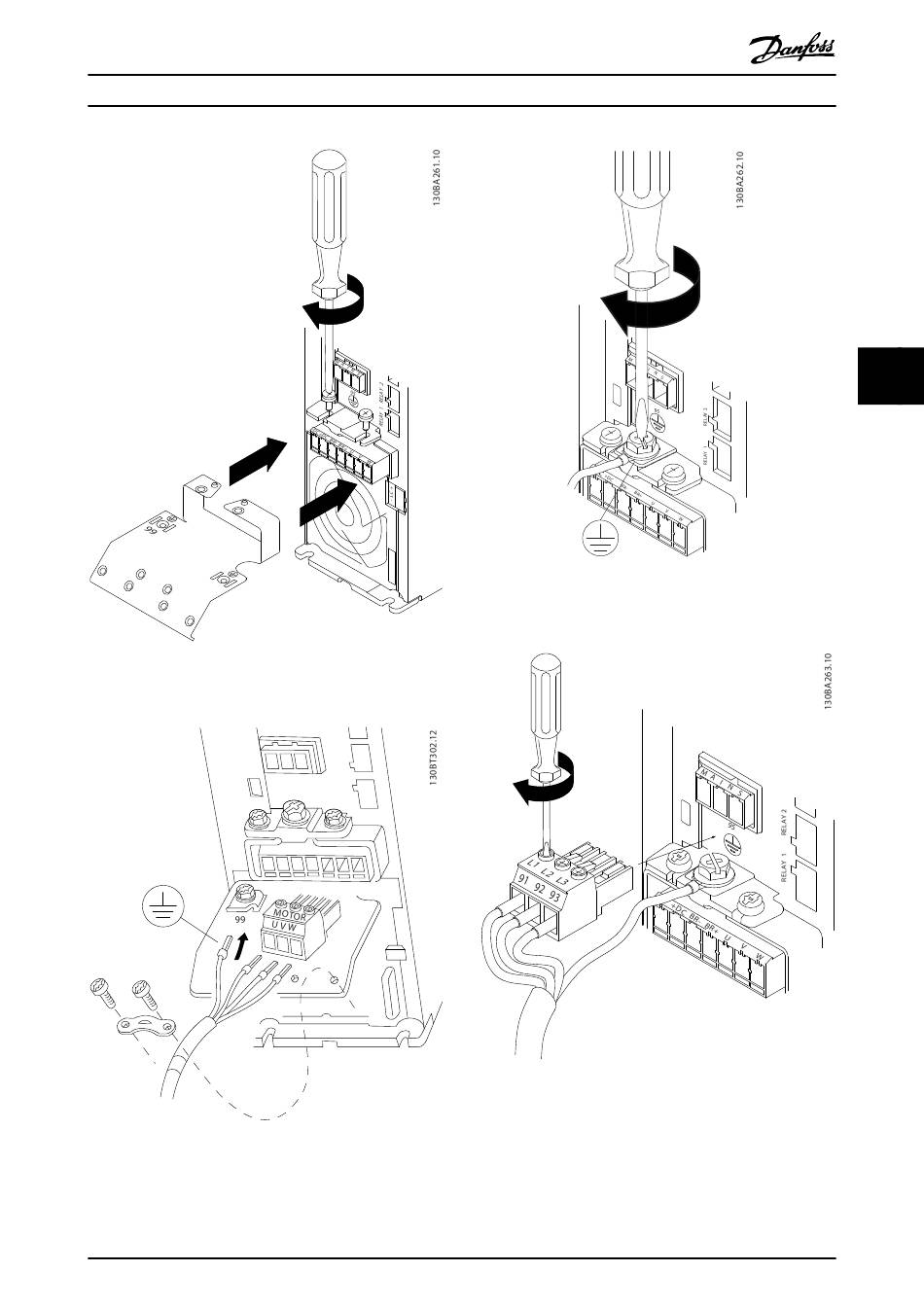

Illustration 5.3 Mount the 2 screws in the mounting plate,

slide it into place and tighten fully.

Illustration 5.4 H3–H5 Enclosure

MG18N202

Design Guide

Illustration 5.5 When mounting cables, first mount and tighten

the ground cable.

MOTOR

Illustration 5.6 Mount mains plug and tighten wires.
