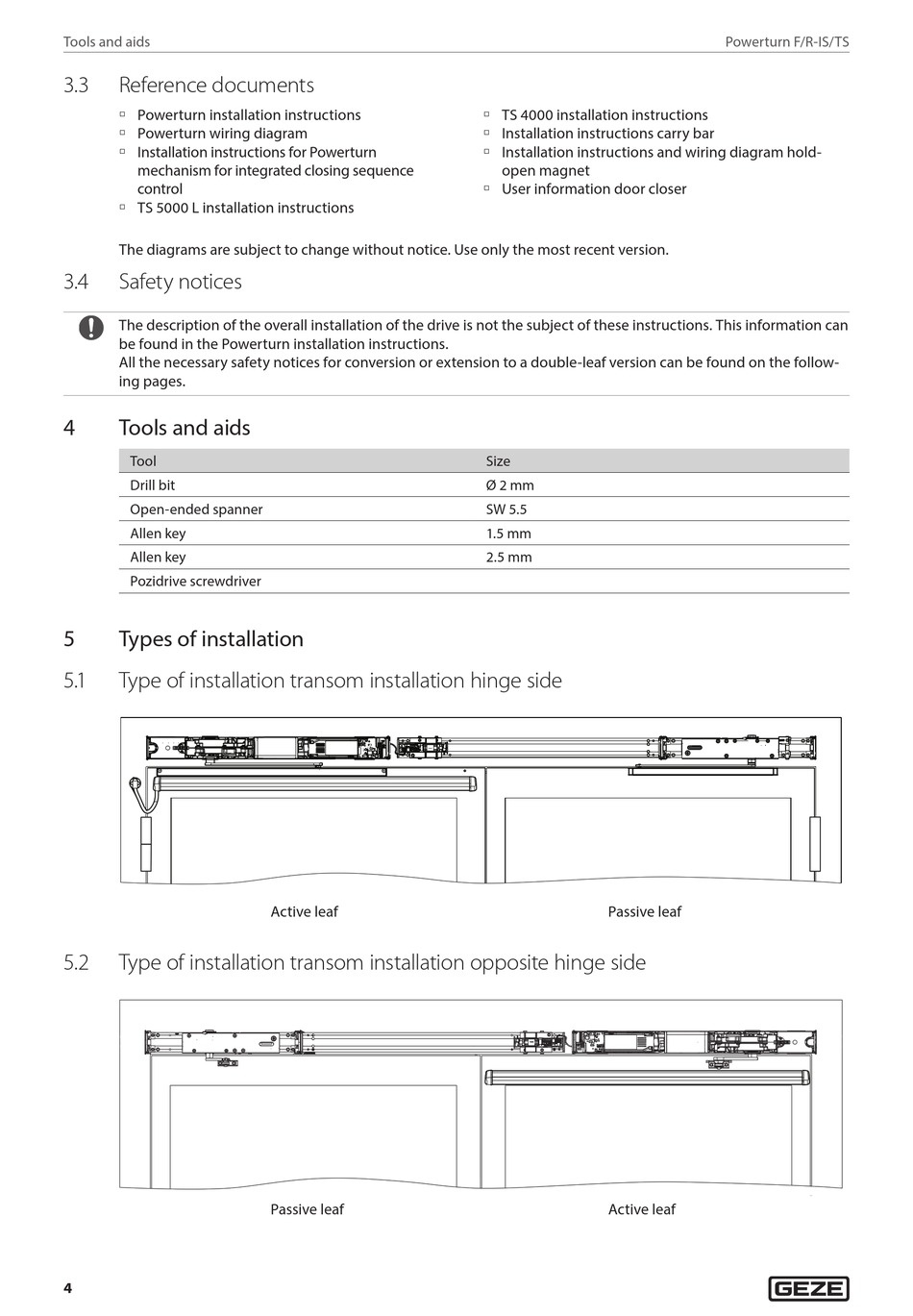

Reference Documents; Safety Notices; Tools And Aids; Types Of Installation - GEZE Powerturn IS/TS Installation Instructions Manual

Tools and aids

3.3

Reference documents

à Powerturn installation instructions
à Powerturn wiring diagram
à Installation instructions for Powerturn
mechanism for integrated closing sequence
control
à TS 5000 L installation instructions
The diagrams are subject to change without notice. Use only the most recent version.
3.4

Safety notices

The description of the overall installation of the drive is not the subject of these instructions. This information can
be found in the Powerturn installation instructions.
All the necessary safety notices for conversion or extension to a double-leaf version can be found on the follow-
ing pages.
4 Tools and aids
Tool
Drill bit
Open-ended spanner
Allen key
Allen key
Pozidrive screwdriver
5

Types of installation

5. 1

Type of installation transom installation hinge side

5.2

Type of installation transom installation opposite hinge side

4
Active leaf
Passive leaf
à TS 4000 installation instructions
à Installation instructions carry bar
à Installation instructions and wiring diagram hold-
open magnet
à User information door closer
Size
Ø 2 mm
SW 5.5
1.5 mm
2.5 mm
Passive leaf
Active leaf
Powerturn F/R-IS/TS
