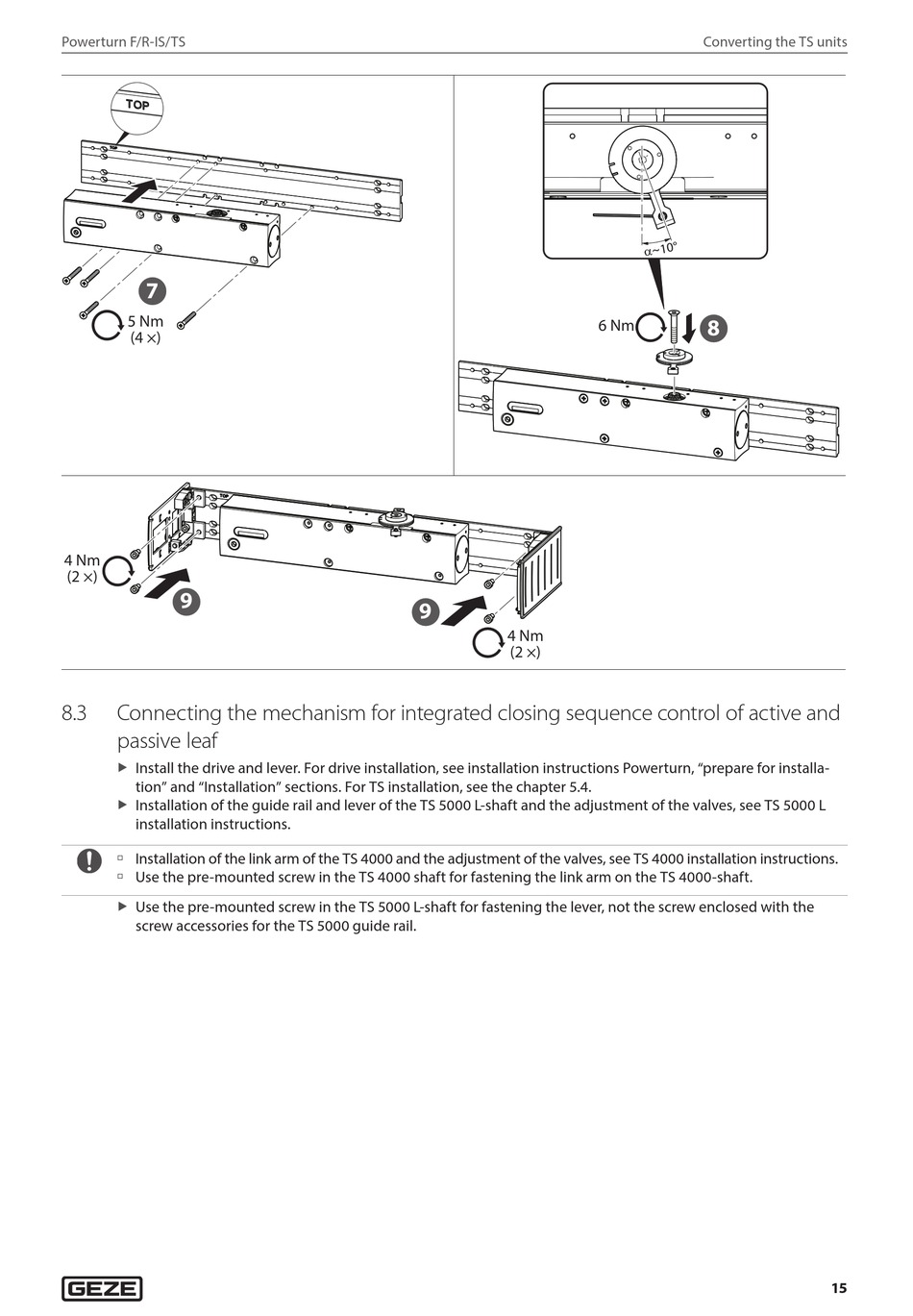

Powerturn F/R-IS/TS
7
5 Nm
(4 ×)
4 Nm
(2 ×)
9
8.3
Connecting the mechanism for integrated closing sequence control of active and
passive leaf
Install the drive and lever. For drive installation, see installation instructions Powerturn, "prepare for installa-
X
tion" and "Installation" sections. For TS installation, see the chapter 5.4.
Installation of the guide rail and lever of the TS 5000 L-shaft and the adjustment of the valves, see TS 5000 L
X
installation instructions.
à Installation of the link arm of the TS 4000 and the adjustment of the valves, see TS 4000 installation instructions.
à Use the pre-mounted screw in the TS 4000 shaft for fastening the link arm on the TS 4000-shaft.
Use the pre-mounted screw in the TS 5000 L-shaft for fastening the lever, not the screw enclosed with the
X
screw accessories for the TS 5000 guide rail.
9
4 Nm
(2 ×)
Converting the TS units
8
6 Nm
15
