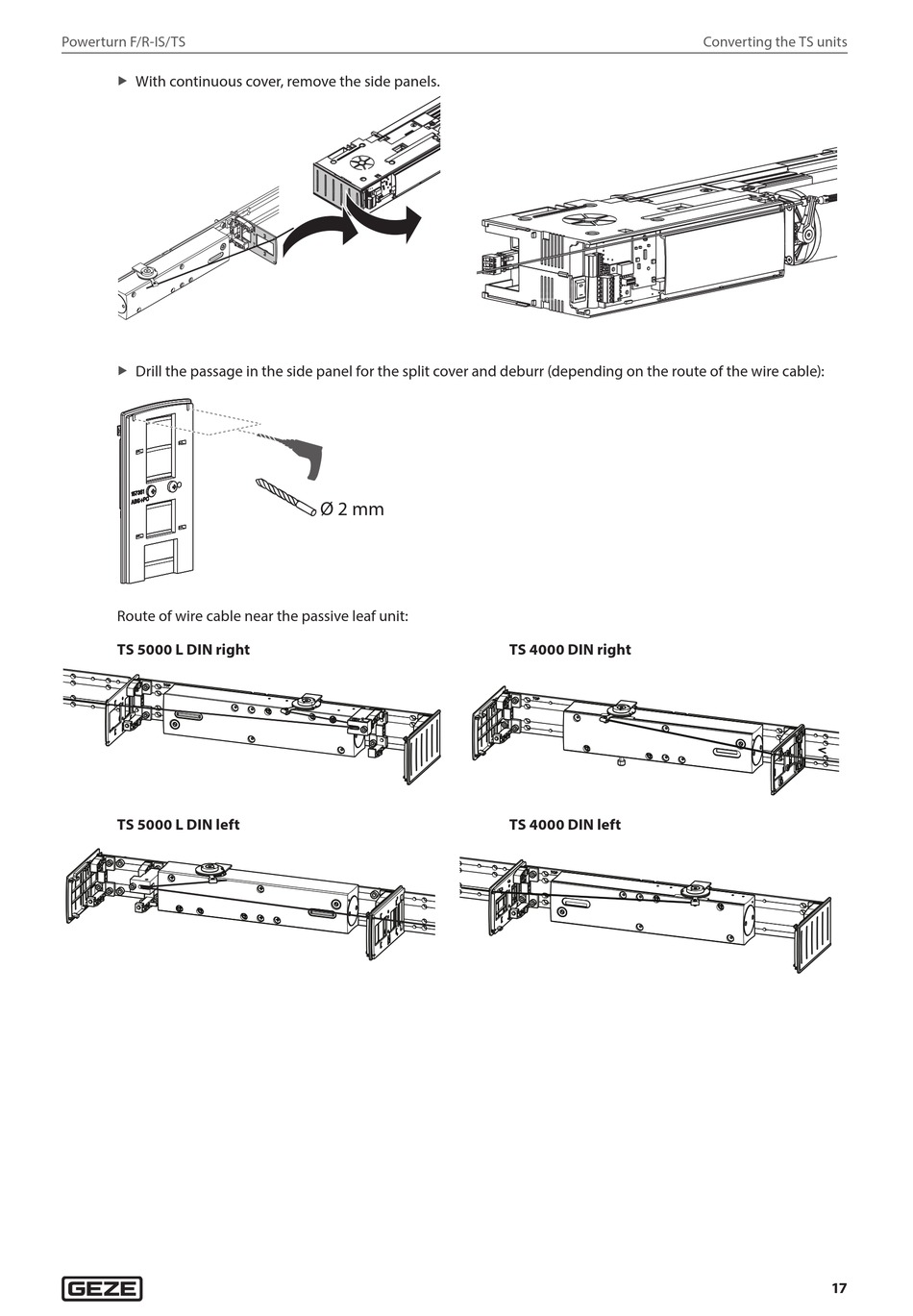

GEZE Powerturn IS/TS Installation Instructions Manual page 17

Powerturn F/R-IS/TS
With continuous cover, remove the side panels.
X
Drill the passage in the side panel for the split cover and deburr (depending on the route of the wire cable):
X
Route of wire cable near the passive leaf unit:
TS 5000 L DIN right
TS 5000 L DIN left
Ø 2 mm
TS 4000 DIN right
TS 4000 DIN left
Converting the TS units
17
