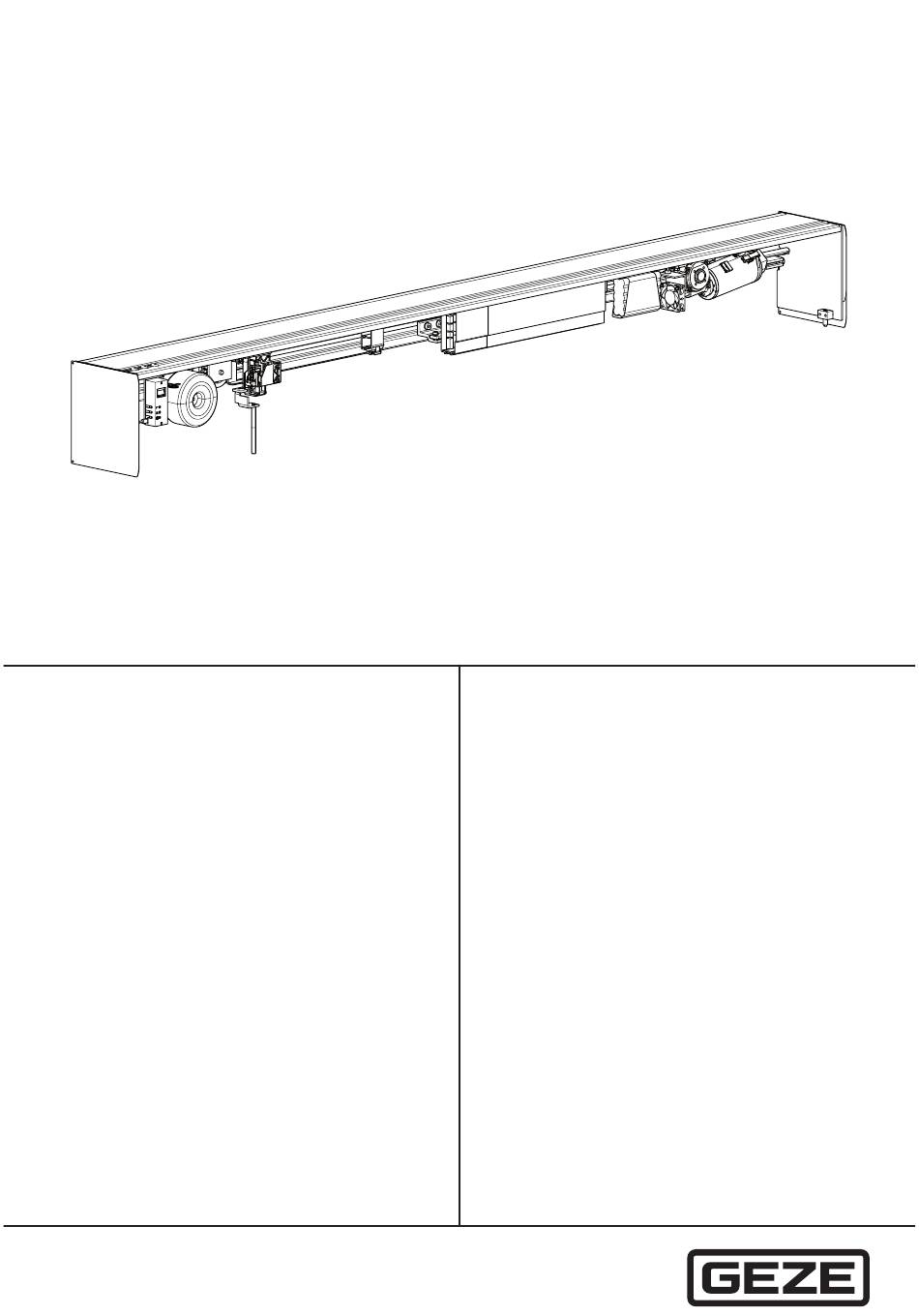

- Page 1 Powerdrive EN Pre-installation instructions Product family 192474-01...
-
Page 2: Table Of Contents
Powerdrive product family Contents Introduction................................3 Symbols and illustrations ....................................3 Revisions and validity......................................3 Product liability .........................................3 Reference documents .....................................3 Fundamental safety notes ............................4 Intended use........................................4 Safety notes ........................................4 Safety-conscious working .....................................5 Environmentally conscious working .................................5 Safety note related to transportation and storage ..........................5 Qualification ........................................5 About this document .............................6 Overview..................................6... -
Page 3: Introduction
Powerdrive product family Introduction Introduction 1. 1 Symbols and illustrations In these instructions, warning notices are used to warn against material damage and injuries. Always read and observe these warning notices. Observe all measures marked with the warning symbol and warning word. Warning notices Warning Warning word Meaning... -
Page 4: Fundamental Safety Notes
à in the installation variants / types of installation documented by GEZE à within the tested/approved area of application (climate / temperature / IP rating) Any other use is considered non-intended and will lead to the exclusion of all liability and warranty claims to GEZE. Safety notes à... -
Page 5: Safety-Conscious Working
Powerdrive product family Fundamental safety notes Safety-conscious working à Secure workplace against unauthorised entry. à Use only the cables specified on the cable plan provided. Cables must be shielded in compliance with the wiring diagram. à Secure loose, internal drive cables with cable ties. à... -
Page 6: About This Document
These instructions describe the pre-installation for automatic sliding door drives in the Powerdrive product family. Overview 4. 1 Diagrams Number Type Name 70506-0-001 Drive drawing Powerdrive PL/FR drives 70506-2-0240 Component drawing Cover version 200×90×6500 70506-2-0238 Component drawing Cover version 150×90×6500 70506-2-0218 Component drawing Cover, bespoke 200×105/90... -
Page 7: Components And Assembly Groups
Powerdrive product family Overview Components and assembly groups These illustrations show the equipment of a standard drive in 2-leaf and 1-leaf version, right and left hand slide to open. The structure of the assembly groups can vary depending on the drive equipment or version. Precise details about positioning of the individual components are provided on the drive drawing. -
Page 8: Pre-Mounting
Pre-mounting Powerdrive product family Pre-mounting The up-to-date drive drawing is applicable for the pre-installation work to be carried out. All components must be identified and installed in accordance with the drive drawing. 5. 1 Machining the track and cover Check profiles for damage. Cut the track and cover to the required length (see machining drawings, Chapter 4.1). -
Page 9: Installing Stop Buffers
Powerdrive product family Pre-mounting Installing stop buffers Slide the stop buffers (1) onto the track from the left and right. Tighten the Allen screws (2) of the stop buffer slightly. The exact position of the stop buffers (1) is specified during moving leaf installation. -
Page 10: Installing The Drive Components
Pre-mounting Powerdrive product family Installing the drive components The exact positioning of the components is given on the drive drawings. Illustrated: 2-leaf, ÖW 900 mm Illustrated: right hand slide to open, ÖW = 700 mm Illustrated: left hand slide to open, ÖW = 700 mm Legend: ÖW Opening width... -
Page 11: Installing Cable Guides
Powerdrive product family Pre-mounting Installing cable guides Cables can be cut! Lay cables in such a way that there are no cables near the moving parts. Cable guide spacing approx. 200 mm. Fix the cable guide (1) on the track (2). Connecting transformer and control unit Make sure that cables are cut to length and routed in such a way that they do not become jammed when the cover is positioned and cannot come into contact with moving components. - Page 12 Pre-mounting Powerdrive product family Fix the cable guide DCU (4) to the control unit Guide the transformer cable (1) between the control unit (2) and track (5). Alternatively, the transformer cable (1) can also be mounted on the front of the control unit. Fit the transformer cable (1) to terminal (5) of the transformer.
-
Page 13: Connecting Motor Gear Unit And Control Unit
Powerdrive product family Pre-mounting Connecting motor gear unit and control unit Powerdrive PL Lay the rotary encoder cable (2) and motor connection cable (3) to the control unit. Insert the connector into the control unit (4). Powerdrive PL-FR Route the rotary encoder cable (2), motor connection cable (3) and motor connection cable of the second motor gear unit (1) to control unit. -
Page 14: Connecting The Tooth Belt Locking Mechanism (Optional) And Control Unit
Pre-mounting Powerdrive product family Connecting the tooth belt locking mechanism (optional) and control unit Plug the cable for tooth belt locking mechanism (1) in at the control unit (2). Lay the cable for tooth belt locking mechanism (1) through the cable guide to the tooth belt locking mechanism (optional) (3), shorten if necessary, strip and attach the insulated wire-end ferrules. -
Page 15: Fitting The Transformer Ground
Powerdrive product family Pre-mounting 5. 1 0 Fitting the transformer ground Connect the earthing cable (1) from the transformer to the device flat plug (2). The track is not earthed if there is a poor connection between earthing jumper (3) and track. Check whether the setscrews (4) of the earthing jumper (3) penetrate the anodised layer of the track. -
Page 16: Installing The Side Plates
Pre-mounting Powerdrive product family 5. 1 2 Installing the side plates Screw the side plates (2) to side of the track with 4.8 x 13 countersunk tapping screws (1). Screw the retaining block (4) to the side plates (2) on the inside with 4.8 x 13 countersunk tapping screws (3). Screw the threaded pins (5) completely into the retaining blocks (4) from below. -
Page 17: Connecting The Rechargeable Battery And Control Unit
Powerdrive product family Pre-mounting 5. 1 3 Connecting the rechargeable battery and control unit CAUTION! Risk of injury due to impact and crushing! When the rechargeable battery cable (1) is plugged in, the pulley on the motor gear unit may move suddenly. Do not reach into the area of moving parts. -
Page 18: Device Safety Test And Production Test
Device safety test and production test Powerdrive product family Device safety test and production test WARNING Risk of fatal injury due to electric shock! The electrical system (230 V/115 V) may only be connected and disconnected by a professional electrician or specialist electrical technician. - Page 19 Powerdrive product family Device safety test and production test...
