Powerturn F/R-IS/TS

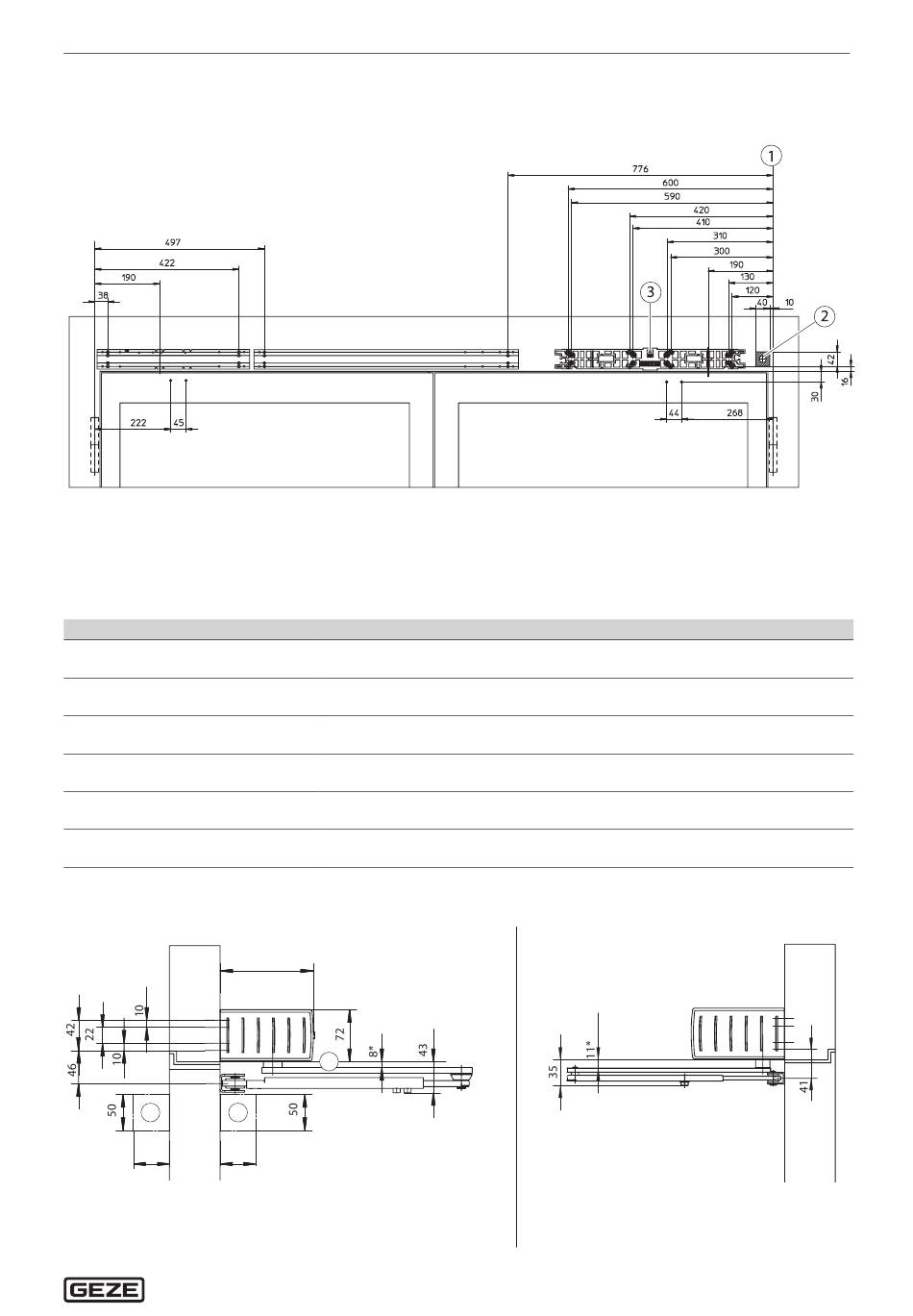

5.4.2 Type of installation transom installation opposite hinge side
Fastening - DIN right
1 Dimensional reference centre of hinge/bottom edge of frame
2 Covered line-feed possible in the hatched area, e.g. Ø 20 mm for the mains connection or low-voltage connec-
tion
3 Orientation arrow for precise positioning of the mounting plate
Fastening means
Drive fastening
TS attachment
Intermediate base plate attachment
Fastening for the Powerturn link arm
Fastening for the TS 4000 link arm
Fastening the adapter for the Powerturn
sensor link arm
Space requirement and fastening
Powerturn link arm
5 5
50 50
4 Base lower edge of lintel
5 Space requirement for sensors
* Important functional dimension
Steel/aluminium doors
8 countersunk head screws M6 × 25 and riveting nuts M6 8 wood screws with
4 cylinder head screws M6 × 20 and riveting nuts M6
4 cylinder head screws M6 × 25 and riveting nuts M6
2 cylinder head screws M6 × 16 and riveting nut M5
2 cylinder head screws M5 × 16 and riveting nut M5
2 countersunk head screws M6 × 20 and riveting nut M6 2 wood screws with
130
4
Fastening DIN left
Timber doors
countersunk head Ø6 × 50
4 wood screws with cylinder
head Ø6 × 50
4 wood screws with cylinder
head Ø6 × 50
2 wood screws with cylinder
head Ø5 × 20
2 wood screws with cylinder
head Ø5 × 20
countersunk head Ø5 × 35
Link arm TS 4000
Types of installation
