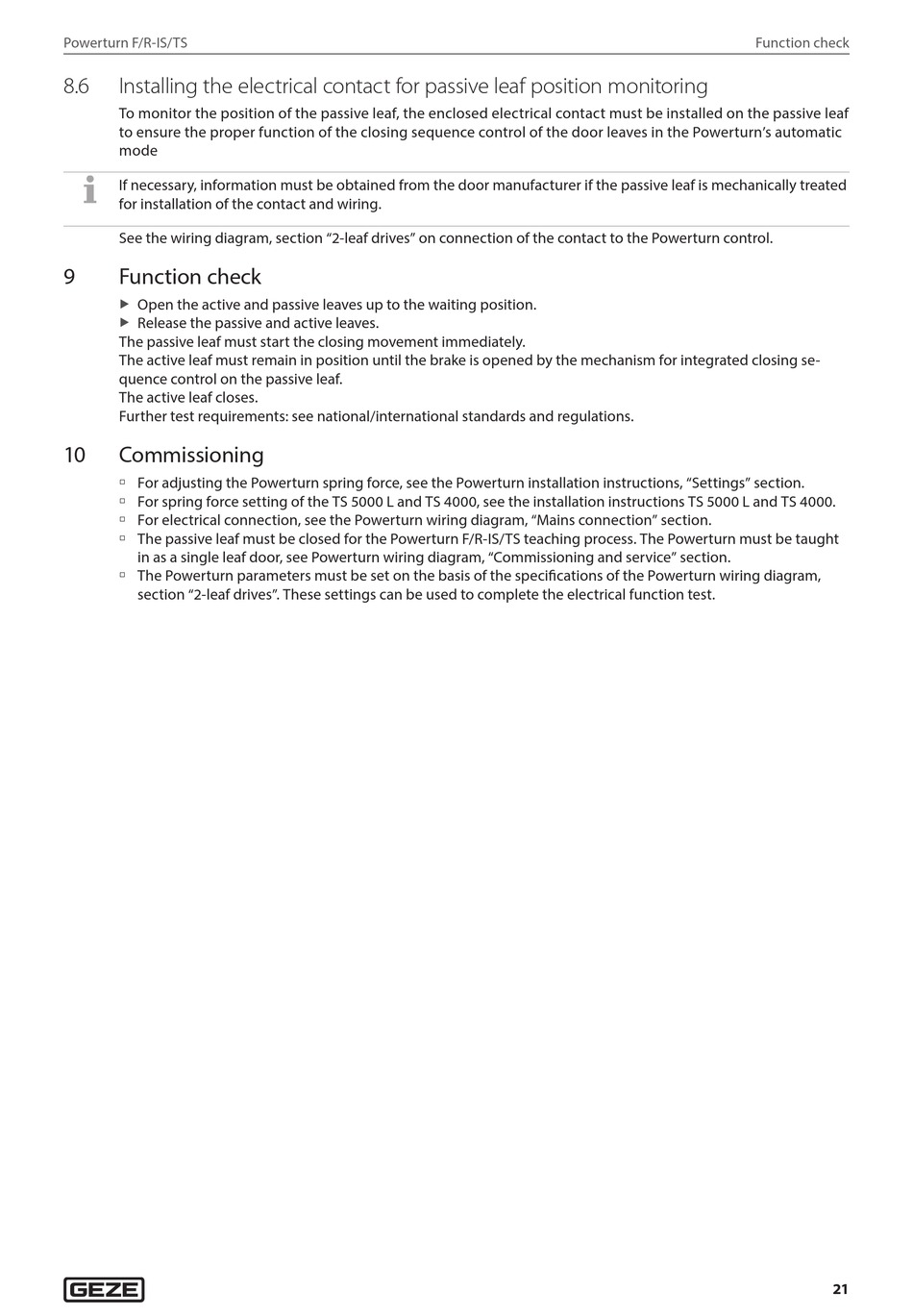

Installing The Electrical Contact For Passive Leaf Position Monitoring; Function Check; Commissioning - GEZE Powerturn IS/TS Installation Instructions Manual

Powerturn F/R-IS/TS
8.6

Installing the electrical contact for passive leaf position monitoring

To monitor the position of the passive leaf, the enclosed electrical contact must be installed on the passive leaf
to ensure the proper function of the closing sequence control of the door leaves in the Powerturn's automatic
mode
If necessary, information must be obtained from the door manufacturer if the passive leaf is mechanically treated
for installation of the contact and wiring.
See the wiring diagram, section "2-leaf drives" on connection of the contact to the Powerturn control.
9

Function check

Open the active and passive leaves up to the waiting position.
X
Release the passive and active leaves.
X
The passive leaf must start the closing movement immediately.
The active leaf must remain in position until the brake is opened by the mechanism for integrated closing se-
quence control on the passive leaf.
The active leaf closes.
Further test requirements: see national/international standards and regulations.
10

Commissioning

à For adjusting the Powerturn spring force, see the Powerturn installation instructions, "Settings" section.
à For spring force setting of the TS 5000 L and TS 4000, see the installation instructions TS 5000 L and TS 4000.
à For electrical connection, see the Powerturn wiring diagram, "Mains connection" section.
à The passive leaf must be closed for the Powerturn F/R-IS/TS teaching process. The Powerturn must be taught
in as a single leaf door, see Powerturn wiring diagram, "Commissioning and service" section.
à The Powerturn parameters must be set on the basis of the specifications of the Powerturn wiring diagram,
section "2-leaf drives". These settings can be used to complete the electrical function test.
Function check
