Install Carry Bar; Install Hold-Open Magnet - GEZE Powerturn IS/TS Installation Instructions Manual

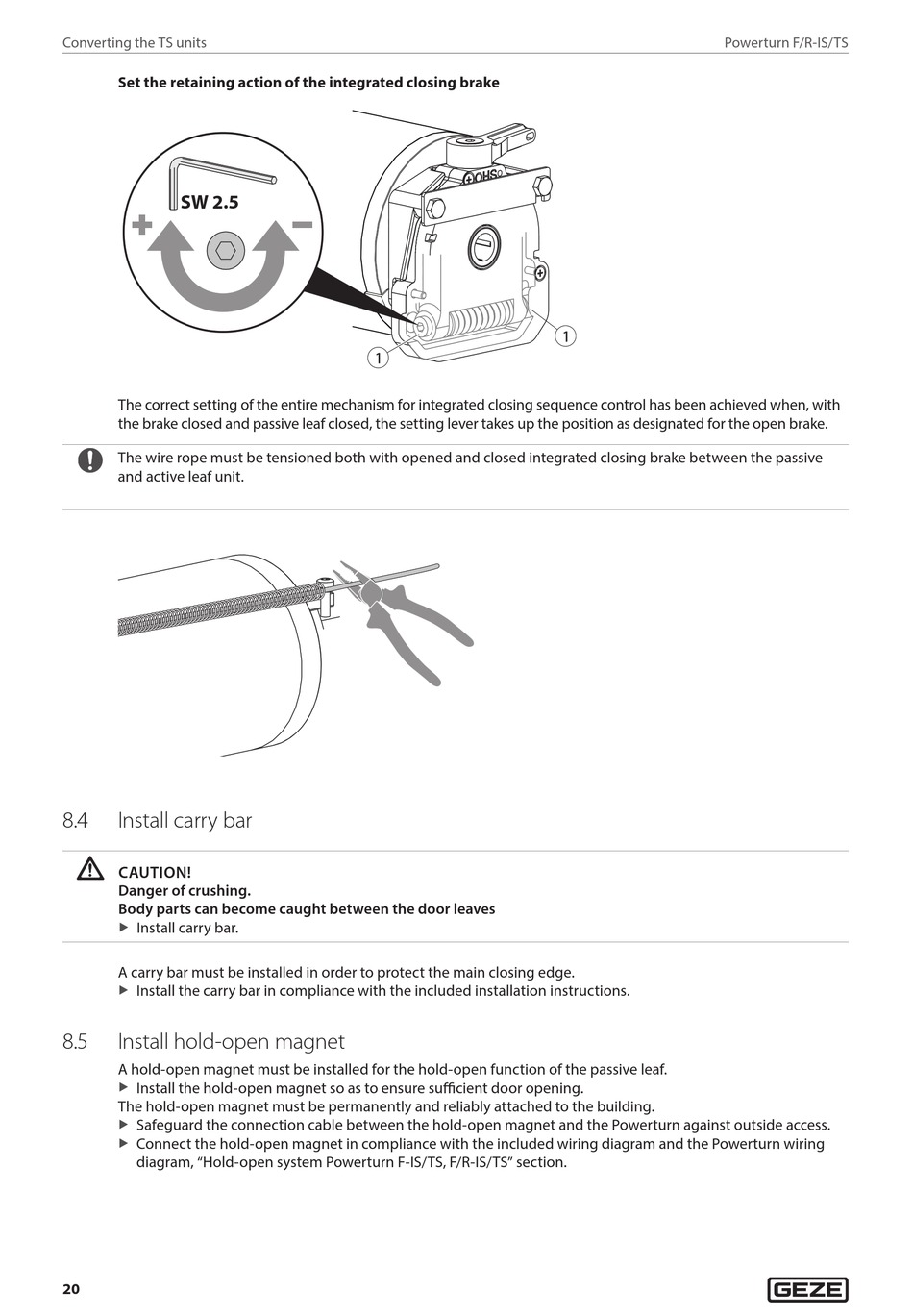

Converting the TS units
Set the retaining action of the integrated closing brake
SW 2.5
The correct setting of the entire mechanism for integrated closing sequence control has been achieved when, with
the brake closed and passive leaf closed, the setting lever takes up the position as designated for the open brake.
The wire rope must be tensioned both with opened and closed integrated closing brake between the passive
and active leaf unit.
8.4

Install carry bar

CAUTION!
Danger of crushing.
Body parts can become caught between the door leaves
Install carry bar.
X
A carry bar must be installed in order to protect the main closing edge.
Install the carry bar in compliance with the included installation instructions.
X
8.5

Install hold-open magnet

A hold-open magnet must be installed for the hold-open function of the passive leaf.
Install the hold-open magnet so as to ensure sufficient door opening.
X
The hold-open magnet must be permanently and reliably attached to the building.
Safeguard the connection cable between the hold-open magnet and the Powerturn against outside access.
X
Connect the hold-open magnet in compliance with the included wiring diagram and the Powerturn wiring
X
diagram, "Hold-open system Powerturn F-IS/TS, F/R-IS/TS" section.
