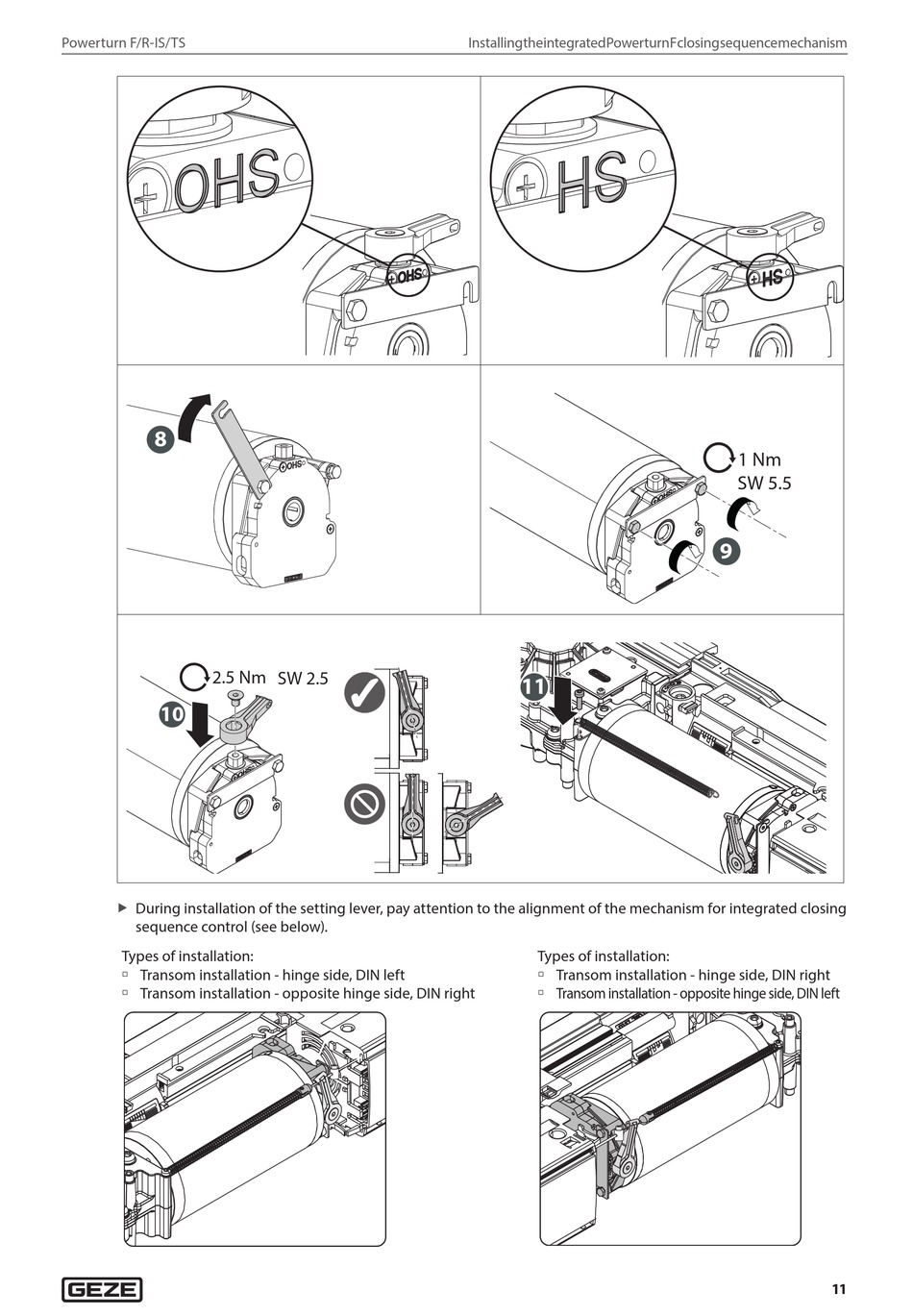

Powerturn F/R-IS/TS
8
2.5 Nm
10
During installation of the setting lever, pay attention to the alignment of the mechanism for integrated closing
X
sequence control (see below).
Types of installation:
à Transom installation - hinge side, DIN left
à Transom installation - opposite hinge side, DIN right
SW 2.5
Installing the integrated Powerturn F closing sequence mechanism
11
Types of installation:
à Transom installation - hinge side, DIN right
à Transom installation - opposite hinge side, DIN left
1 Nm
SW 5.5
9
11
