Slimdrive EMD
EN Installation and service instructions
Slimdrive EMD-F
167776-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Slimdrive EMD-F and is the answer not in the manual?

Questions and answers

Related Manuals for GEZE Slimdrive EMD-F

Summary of Contents for GEZE Slimdrive EMD-F

  • Page 1 Slimdrive EMD EN Installation and service instructions Slimdrive EMD-F 167776-01...

  • Page 2: Table Of Contents

    Slimdrive EMD / Slimdrive EMD-F Contents Symbols and means of representation .........................3 Revisions and validity .................................3 Product liability ..................................3 Reference documents ................................3 Safety instructions ..............................4 Intended use........................................4 Safety instructions ......................................4 Safety conscious working ....................................4 Inspection of the installed system ................................5 Environmentally conscious working .................................5...

  • Page 3: Symbols And Means Of Representation

    Slimdrive EMD / Slimdrive EMD-F Symbols and means of representation Warnings In these instructions, warnings are used to warn against material damage and injuries. Always read and observe these warnings. Observe all the measures that are marked with the warning symbol and warning word.

  • Page 4: Safety Instructions

    à The country-specific laws and regulations are to be observed during safety-related tests. à If unauthorised changes are made to the system, GEZE cannot be held liable in any way whatsoever for any resulting damage, and the approval for use in escape routes or emergency exists ceases.

  • Page 5: Inspection Of The Installed System

    Slimdrive EMD / Slimdrive EMD-F Tools and aids à Before working on the electrical system: à Disconnect the drive from the 230 V mains and check to ensure that it is not supplied with power. à Disconnect the control unit from the 24 V battery.

  • Page 6: Scope Of Delivery And Completeness

    Scope of delivery and completeness Slimdrive EMD / Slimdrive EMD-F Scope of delivery and completeness Open packaging units and check for completeness. Door drive Slimdrive EMD or EMD-F with roller guide rail or link arm à Drive unit à 1 drive à...

  • Page 7: Product Description

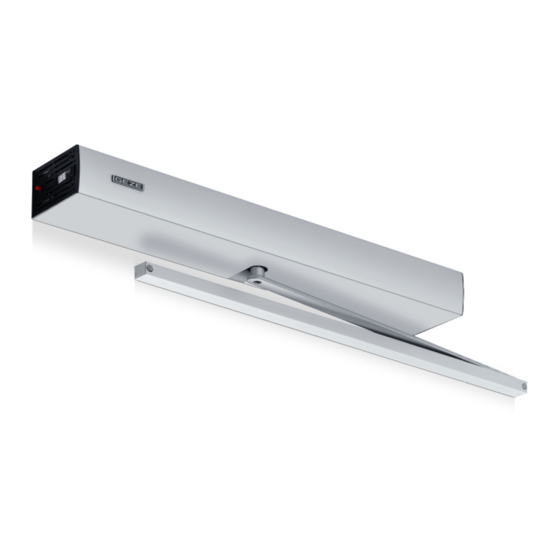

    Slimdrive EMD / Slimdrive EMD-F Product description Product description 5. 1 System description and technical data The Slimdrive EMD or EMD-F à is a swing door drive with full automatic operation actuated by sensors or switches. à operates electrically during opening and closing.

  • Page 8: Basic Structure And Extension

    Product description Slimdrive EMD / Slimdrive EMD-F Basic structure and extension 5.2. 1 Drive Side parts Control unit Base plate Energy storage device (EMD-F only) Drive axle, continuous Motor-gearing unit Transformer Hood anodised or coloured (2-leaf version also available with continuous or intermediate cover) 5.2.2...

  • Page 9: Types Of Installation, Hinge Action

    Slimdrive EMD / Slimdrive EMD-F Product description Types of installation, hinge action à The 2-leaf version corresponds to that of the 1-leaf installation type. à The opening angle of the door always has to be limited by a door stop.

  • Page 10: Installation

    Installation Slimdrive EMD / Slimdrive EMD-F Installation 6. 1 General installation information à Observe all the instructions. Incorrect installation can result in serious injuries. à The specified ambient temperature range at the installation location of the drive must be observed.

  • Page 11: Fitting Dimensions For The Installation Types

    Slimdrive EMD / Slimdrive EMD-F Installation Fitting dimensions for the installation types 6.2. 1 Transom installation hinge side with roller guide rail (single-leaf) Drilling pattern left hand (ISO 6) and right hand (ISO 5) mirrored. Attachment with mounting plate Direct attachment...
  • Page 12 Installation Slimdrive EMD / Slimdrive EMD-F 6.2.2 Transom installation opposite hinge side with roller guide rail à Not recommended for external doors. à Drilling pattern left hand (ISO 6) and right hand (ISO 5) mirrored. à This installation type is not permitted for use on fire protection doors.
  • Page 13 Slimdrive EMD / Slimdrive EMD-F Installation 6.2.3 Transom installation opposite hinge side with link arm (single-leaf) à Drilling pattern left hand (ISO 6) and right hand (ISO 5) mirrored. Attachment with mounting plate Direct attachment Ø 15-20 mm Ø 15-20 mm Ø...
  • Page 14 Installation Slimdrive EMD / Slimdrive EMD-F 6.2.4 Door leaf installation hinge side (single-leaf) à Drilling pattern left hand (ISO 6) and right hand (ISO 5) mirrored. Check whether the door can be opened wide enough. Connect all the cables with door transmission to the junction boxes (concealed/surface mounting).
  • Page 15 Door leaf width Hinge clearance B3 The drives Slimdrive EMD and Slimdrive EMD-F for double-leaf doors are equipped with an electronic closing sequence control. However, only the Slimdrive EMD-F with mechanical closing sequence control is permitted for use on fire proof doors in compliance with EN 1158.
  • Page 16 Dimensional reference centre of Concealed cable routing for mains connection 230 V / 50 Hz hinge Active leaf Door leaf width Hinge clearance B3 The drives Slimdrive EMD and Slimdrive EMD-F for double-leaf doors are equipped with an electronic closing sequence control.
  • Page 17 Slimdrive EMD / Slimdrive EMD-F Installation 6.2.7 Transom installation opposite hinge side with link arm (double-leaf) Use fitting template as with single-leaf version. Attachment of 2x EMD or EMD-F with intermediate mounting plate Attachment of 2x EMD or EMD-F with continuous mounting plate...
  • Page 18 Installation Slimdrive EMD / Slimdrive EMD-F The drives Slimdrive EMD and Slimdrive EMD-F for double-leaf doors are equipped with an electronic closing sequence control. However, only the Slimdrive EMD-F with mechanical closing sequence control is permitted for use on fire proof doors in compliance with EN 1158.

  • Page 19: Installing The Drive

    Slimdrive EMD / Slimdrive EMD-F Installation Installing the drive During drive installation, ensure that the connection cables are not pinched. Pull the hood off. If necessary, screw the mounting plate on. Align the drive (see drawings in section 6.2). Use the M5 screws or the chipboard screws provided to screw the drive in place.
  • Page 20 Installation Slimdrive EMD / Slimdrive EMD-F Attach the spindle covers (1) and (2) to the drive. 6.6.2 Spindle covers from date of manufacture 2013 There is only a minimum difference between the two spindle covers. There is a symbol for an oblong hole on the back of the left-hand spindle cover, which is on the gear as well (see arrows).

  • Page 21: Mounting The Lever (For Installation With Roller Guide Rail)

    Slimdrive EMD / Slimdrive EMD-F Installation Mounting the lever (for installation with roller guide rail) ATTENTION! Danger of injury The mounted and pre-tensioned arm is braked electrically. If a motor cable is disconnected, the stored ener- gy of a tensioned lever is freed without braking and the lever accelerates back into its initial position.
  • Page 22 Installation Slimdrive EMD / Slimdrive EMD-F 6.7.2 Transom installation opposite hinge side with roller guide rail Coat the thread of the screw (2) from the start of the thread about 5-10 mm with medium duty screw locking paint. Set the lever (1) in place as shown by the dashed line on the drawing and fasten using screw (2) (tightening torque = approx.

  • Page 23: Mounting The Link Arm

    Alternative to the lever with roller guide rail Observe the instructions in the link arm packaging. The max. lever pre-tension specified here for Slimdrive EMD-F must never be exceeded. Type of installation: Transom installation opposite hinge side. Link arm version...

  • Page 24: Mounting The Integrated Opening Restrictor

    Installation Slimdrive EMD / Slimdrive EMD-F Dismantling Move the door to the closed position. The locking spring is relaxed. Loosen link arm screw(s). The pre-tension is released, the dashed position is reached. Dismantle the link arm. Mounting the integrated opening restrictor The following description illustrates transom installation hinge side for left hand (ISO 6).

  • Page 25: Installing The Actuation Sensors

    Slimdrive EMD / Slimdrive EMD-F Installation Fix opening restrictor (3) in place using 2 screws. 2,5 mm Push the opening restrictor to the desired position and tighten using Allen key 2,5 mm ±6 mm 6. 1 0 Installing the actuation sensors à...

  • Page 26: Electrical Connection

    Electrical connection Slimdrive EMD / Slimdrive EMD-F Electrical connection 7. 1 Mains connection ATTENTION! Danger of fatal injury due to electric shock! Get a qualified electrician to connect and disconnect the electrical system (230 V). Perform the power connection and equipment earth conductor test in accordance with VDE 0100 Part 610.

  • Page 27: Settings

    Slimdrive EMD / Slimdrive EMD-F Settings Settings The settings described here only apply for the Slimdrive EMD-F, no settings are required for the Slimdrive EMD. 8. 1 Setting the closing force A hook wrench size 20-22 mm is required for setting.

  • Page 28: Closing Speed In De-Energised State

    Settings Slimdrive EMD / Slimdrive EMD-F 8. 1 .3 Settings for link arm Damage to the drive and door system! Application EN 6 (1) is not permitted when a link arm is used. Closing speed in de-energised state This special case occurs in the event of a power failure or fire alarm or when the drive is switched off electrically.

  • Page 29: Service Mode

    Slimdrive EMD / Slimdrive EMD-F Service mode 8.3.2 Setting from date of manufacture 2013 Use a wedge or similar to fix the door in position where the latching action is to begin. Insert a slot-head screwdriver (blade width 6 mm) in the notch of the cam plate and lever against the housing wall.

  • Page 30: Service And Maintenance

    Electrical brake in deenergized state The Slimdrive EMD-F has a brake which is controlled electrically for the closing speed. This is operable during a power failure, with an electrically deactivated device and in the case of a fire alarm (generator principle).

  • Page 31: Maintenance Work

    Slimdrive EMD / Slimdrive EMD-F Service and maintenance ATTENTION! Risk of burns due to hot motor! The motor in the drive can become very hot after continuous operation or poor ease of movement or other defects. Disconnect the system from the mains network before working on the motor.
  • Page 32 E-Mail: danmark.se@geze.com Tel. +49 (0) 7152 203 594 www.geze.at www.geze.hu www.geze.dk E-Mail: leonberg.de@geze.com Baltic States Iberia Singapore GEZE GmbH Baltic States office GEZE Iberia S.R.L. GEZE (Asia Pacific) Pte, Ltd. GEZE GmbH E-Mail: office-latvia@geze.com E-Mail: info@geze.es E-Mail: gezesea@geze.com.sg Niederlassung Süd-Ost www.geze.com www.geze.es...
