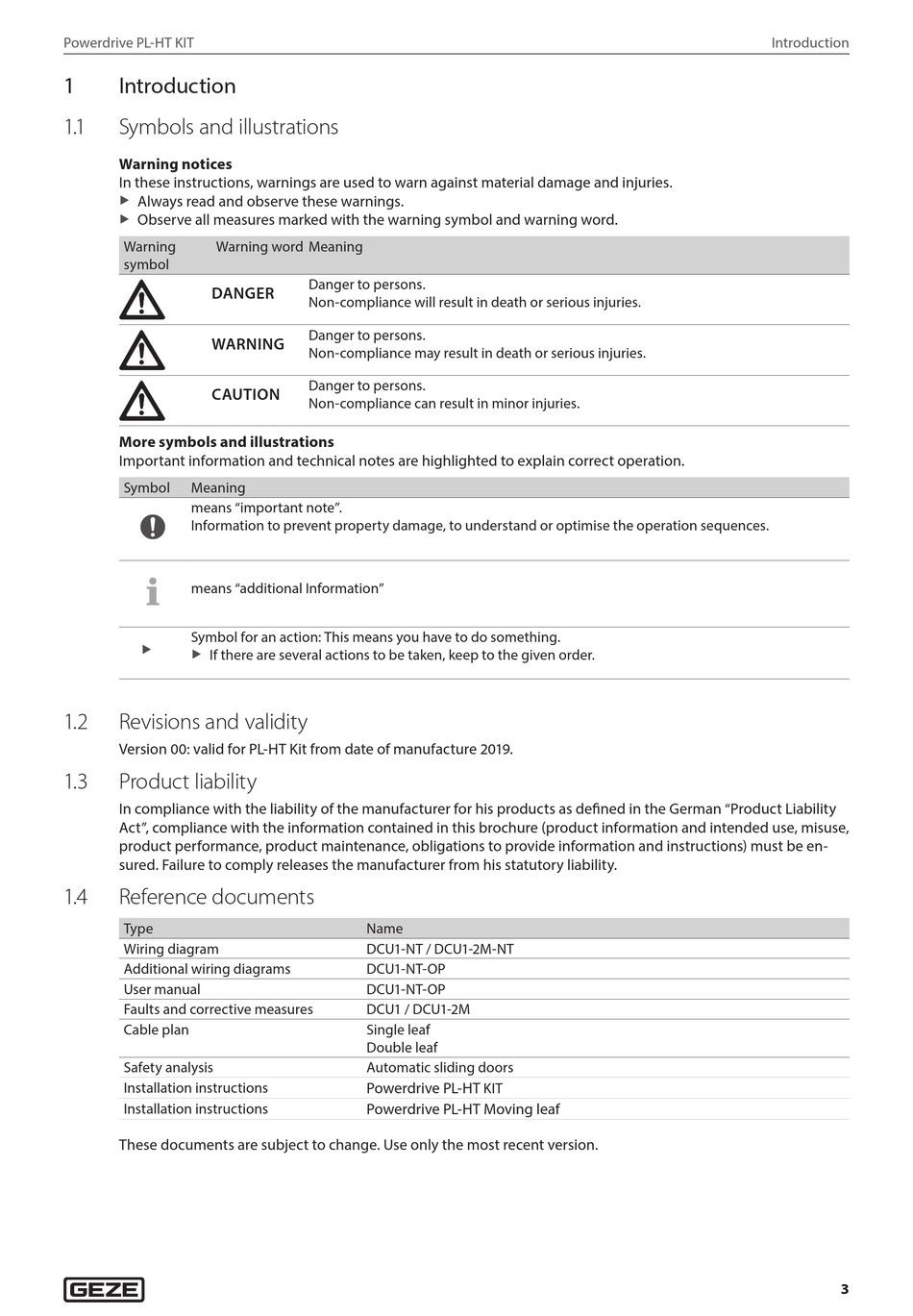

Introduction

1. 1

Symbols and illustrations

Warning notices
In these instructions, warnings are used to warn against material damage and injuries.
Always read and observe these warnings.
X
Observe all measures marked with the warning symbol and warning word.
X
Warning Warning word Meaning
symbol
DANGER
WARNING
CAUTION
More symbols and illustrations
Important information and technical notes are highlighted to explain correct operation.
Symbol Meaning
means "important note".
Information to prevent property damage, to understand or optimise the operation sequences.
means "additional Information"
Symbol for an action: This means you have to do something.
X
If there are several actions to be taken, keep to the given order.
X
1.2

Revisions and validity

Version 00: valid for PL-HT Kit from date of manufacture 2019.
1.3

Product liability

In compliance with the liability of the manufacturer for his products as defined in the German "Product Liability
Act", compliance with the information contained in this brochure (product information and intended use, misuse,
product performance, product maintenance, obligations to provide information and instructions) must be en-
sured. Failure to comply releases the manufacturer from his statutory liability.
1.4

Reference documents

Type
Wiring diagram
Additional wiring diagrams
User manual
Faults and corrective measures
Cable plan
Safety analysis
Installation instructions
Installation instructions
These documents are subject to change. Use only the most recent version.
Danger to persons.
Non-compliance will result in death or serious injuries.
Danger to persons.
Non-compliance may result in death or serious injuries.
Danger to persons.
Non-compliance can result in minor injuries.
Name
DCU1-NT / DCU1-2M-NT
DCU1-NT-OP
DCU1-NT-OP
DCU1 / DCU1-2M
Single leaf
Double leaf
Automatic sliding doors
Powerdrive PL-HT
Powerdrive PL-HT Moving leaf
KIT
