Powerturn F/R-IS/TS
5.3

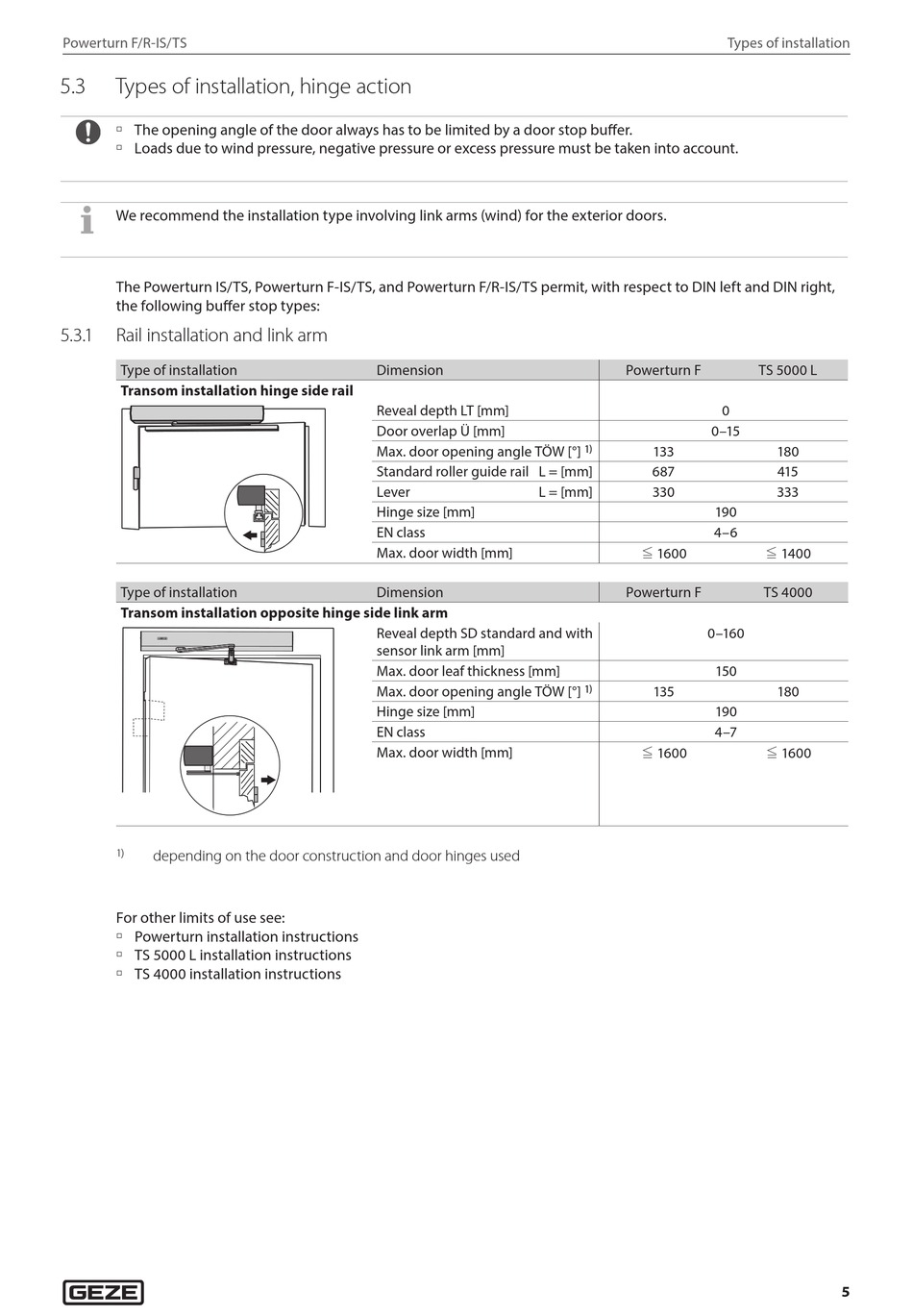

Types of installation, hinge action

à The opening angle of the door always has to be limited by a door stop buffer.
à Loads due to wind pressure, negative pressure or excess pressure must be taken into account.
We recommend the installation type involving link arms (wind) for the exterior doors.
The Powerturn IS/TS, Powerturn F-IS/TS, and Powerturn F/R-IS/TS permit, with respect to DIN left and DIN right,
the following buffer stop types:
5.3. 1 Rail installation and link arm
Type of installation
Transom installation hinge side rail
Type of installation
Transom installation opposite hinge side link arm
1) depending on the door construction and door hinges used
For other limits of use see:
à Powerturn installation instructions
à TS 5000 L installation instructions
à TS 4000 installation instructions
Dimension
Reveal depth LT [mm]
Door overlap Ü [mm]
Max. door opening angle TÖW [°]
Standard roller guide rail L = [mm]
Lever L = [mm]
Hinge size [mm]
EN class
Max. door width [mm]
Dimension
Reveal depth SD standard and with
sensor link arm [mm]
Max. door leaf thickness [mm]
Max. door opening angle TÖW [°]
Hinge size [mm]
EN class
Max. door width [mm]
Types of installation
Powerturn F
0
0–15
1) 133
687
330
190
4–6
O
1600
Powerturn F
0–160
150
1)
135
190
4–7
O
1600
TS 5000 L
180
415
333
O
1400
TS 4000
180
O
1600
5
