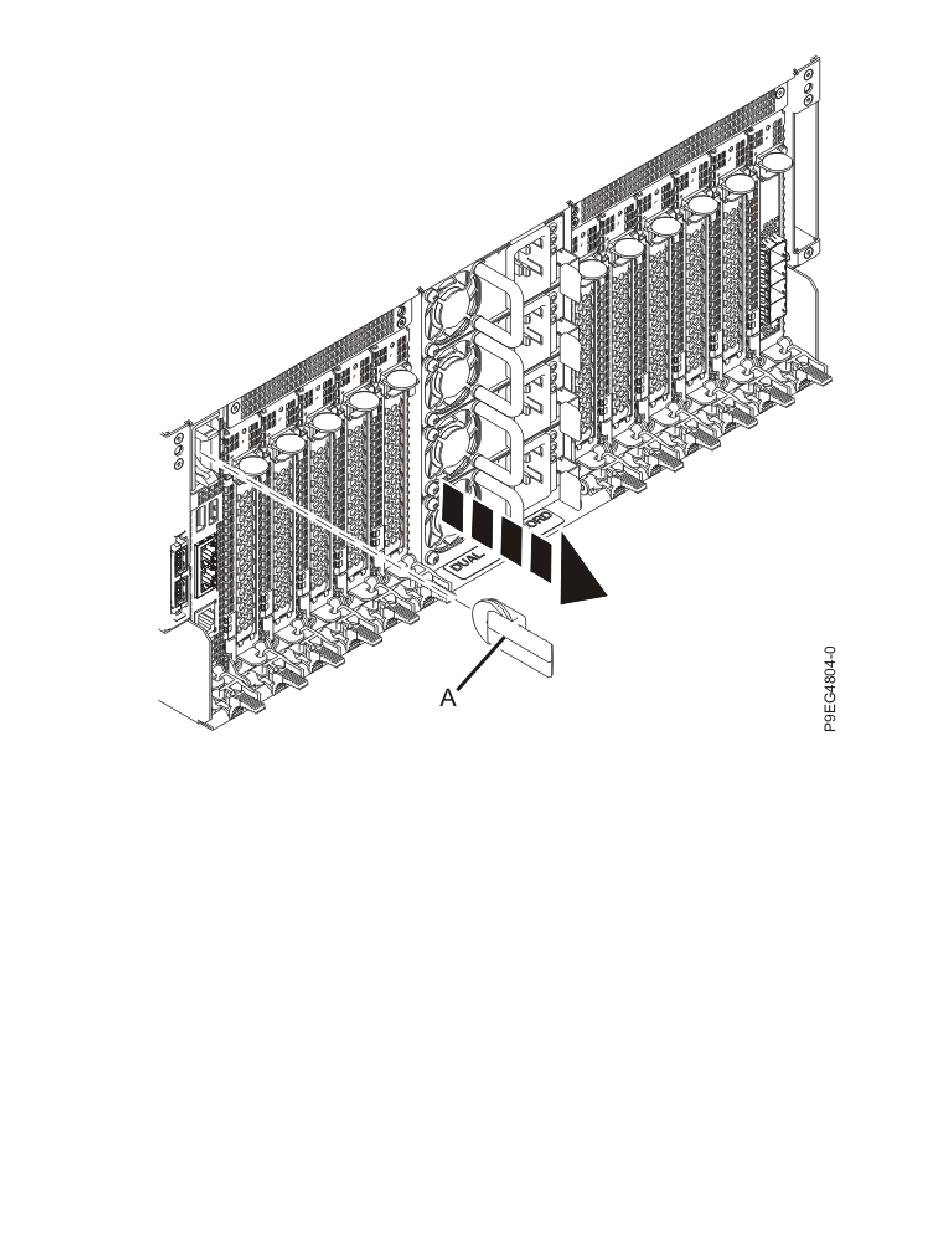

Figure 56: Removing the time-of-day battery
Replacing the time-of-day battery in the 9040-MR9
To replace the time-of-day battery, complete the steps in this procedure.
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Insert the time-of-day battery (A) into its slot as shown in the following figure; the + (plus) side of the
battery orients towards the outside of the server. Then, replace the battery cover (B).
Time-of-day battery for the 9040-MR9 73
