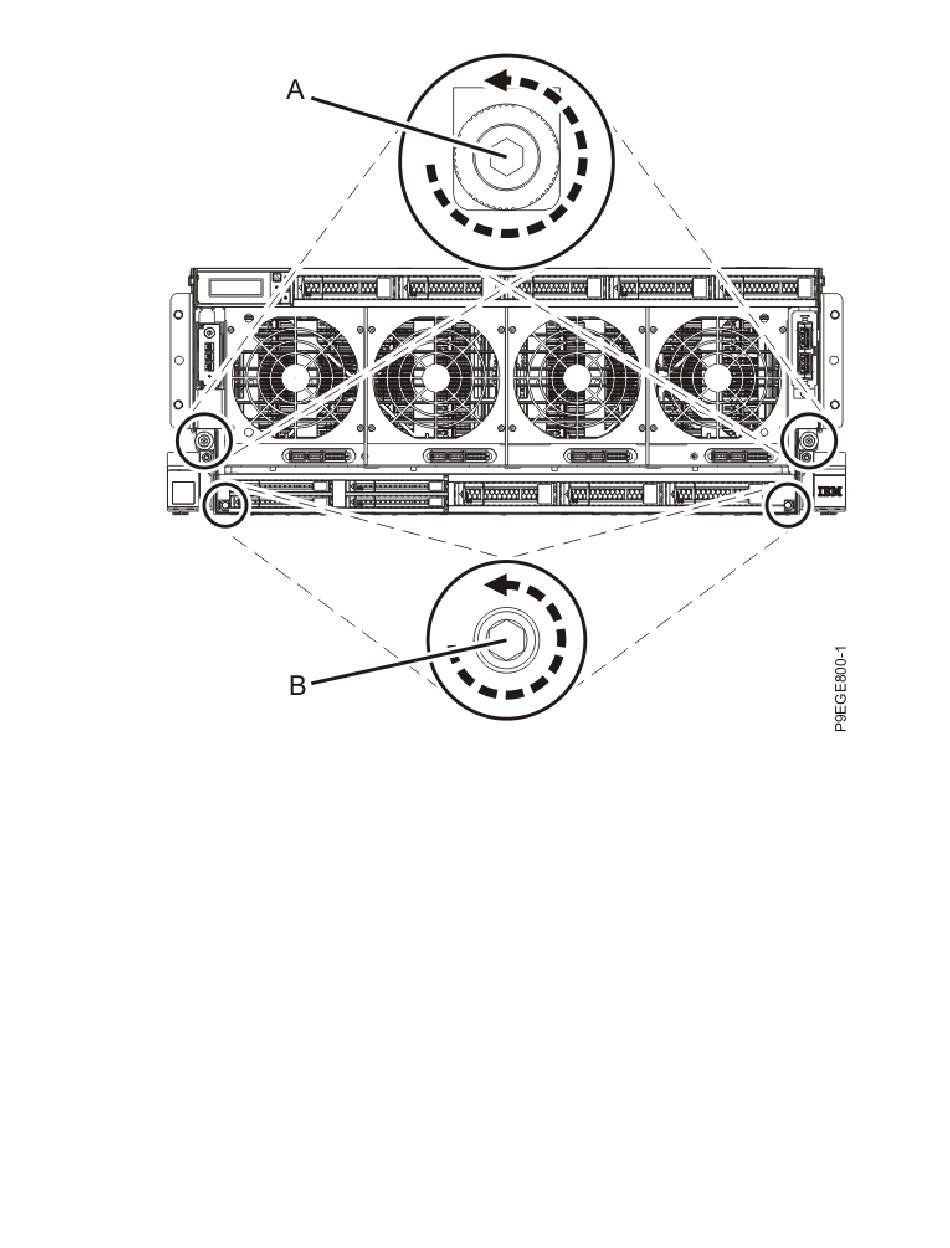

Figure 64: Loosening the disk drive backplane screws
c) Grasp the disk drive backplane with two hands as indicated by the blue squares in the following
figure. Pull the disk drive backplane approximately 2.5 cm (1 in) straight out from the front of the
system.
If you pull the disk drive backplane with one hand, it might twist sideways.
86 Power Systems: Temple's Zeppelin procedures for install, remove, replace
