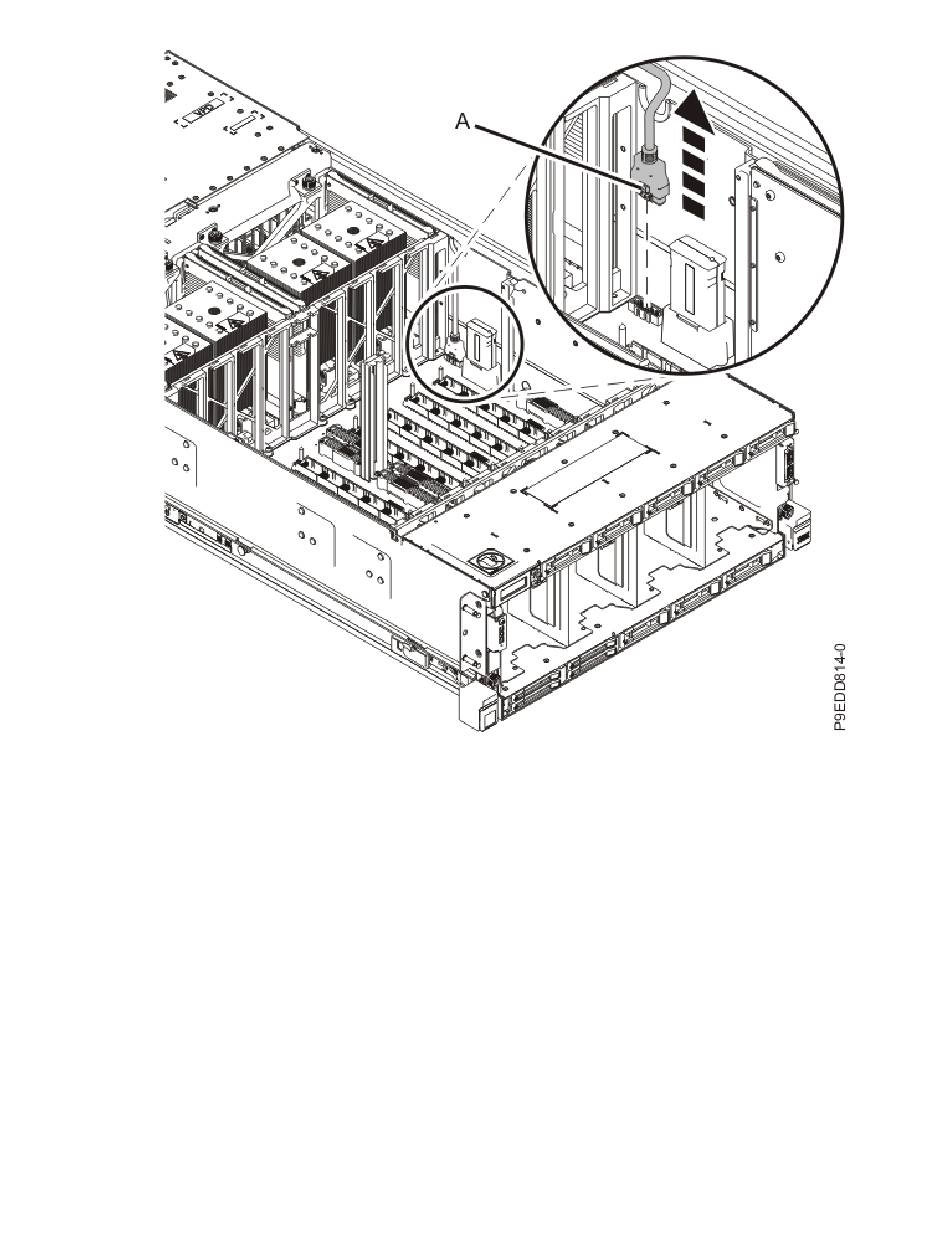

Figure 118: Disconnecting the rear USB cable from the system backplane
b) Route the rear USB cable over the side of the system to prevent it from interfering with the
removal of the system backplane.
16. Remove the vital product data (VPD) card from location P1-C24.
a) Grasp the VPD card by the plastic housing. Refer to the following image.
b) Pull the VPD card out of its slot on the system backplane.
140 Power Systems: Temple's Zeppelin procedures for install, remove, replace
