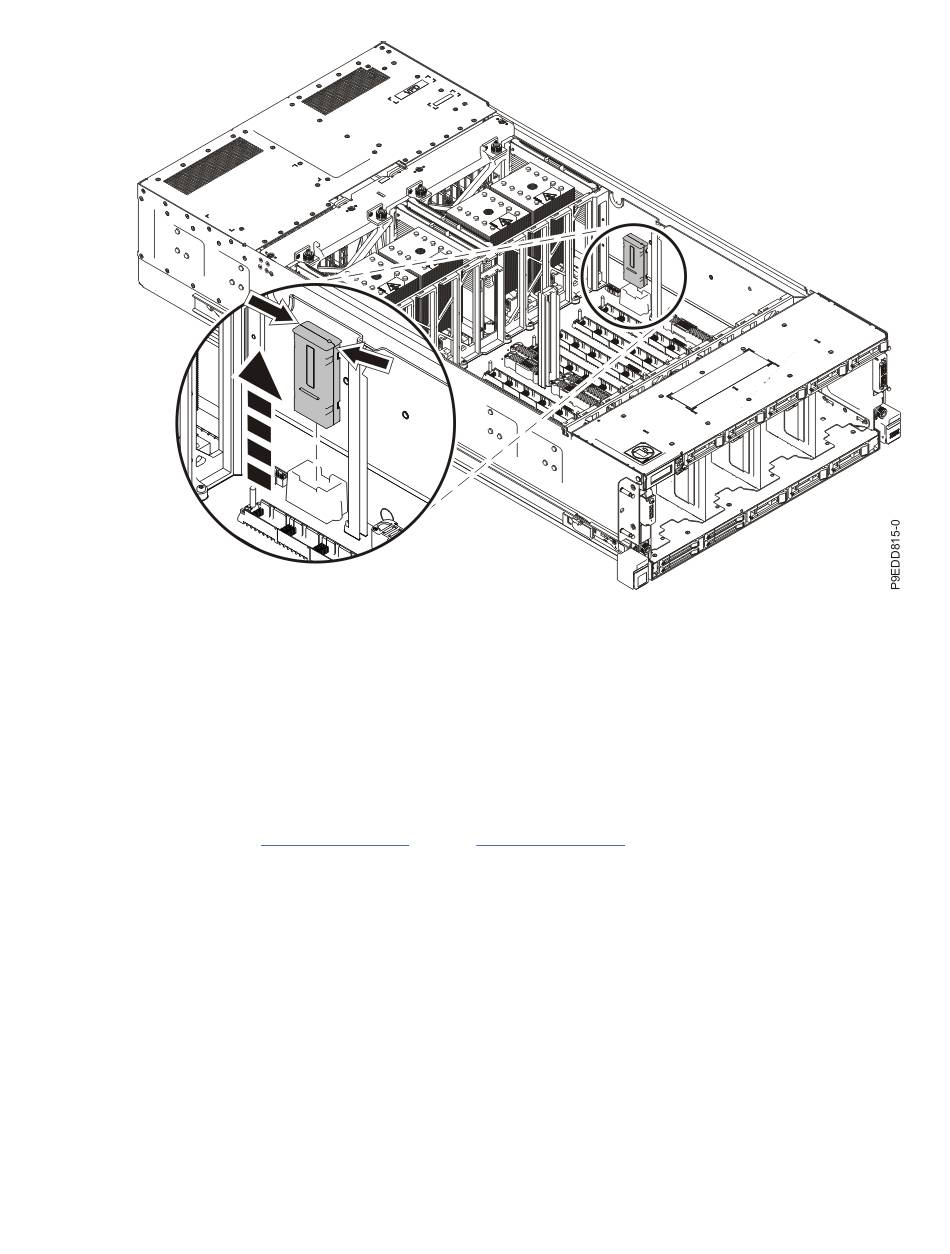

Figure 119: Removing the VPD card
17. Remove the processor voltage regulator modules or processor voltage regulator fillers from locations
P1-C13, P1-C16, P1-C17, and P1-C20.
a) Unlock the levers (A) to release the voltage regulator module or filler from its connector. Refer to
the following image.
b) Rotate the levers in the direction shown.
c) While holding the voltage regulator module or filler by its levers, pull upward to remove the
voltage regulator module or filler from its slot.
d) Place the voltage regulator module or filler on an appropriate ESD surface.
e) Repeat steps "17.a" on page 141 through "17.d" on page 141 to remove the remaining processor
voltage regulator modules or fillers.
SAS cables in the 9040-MR9 141
