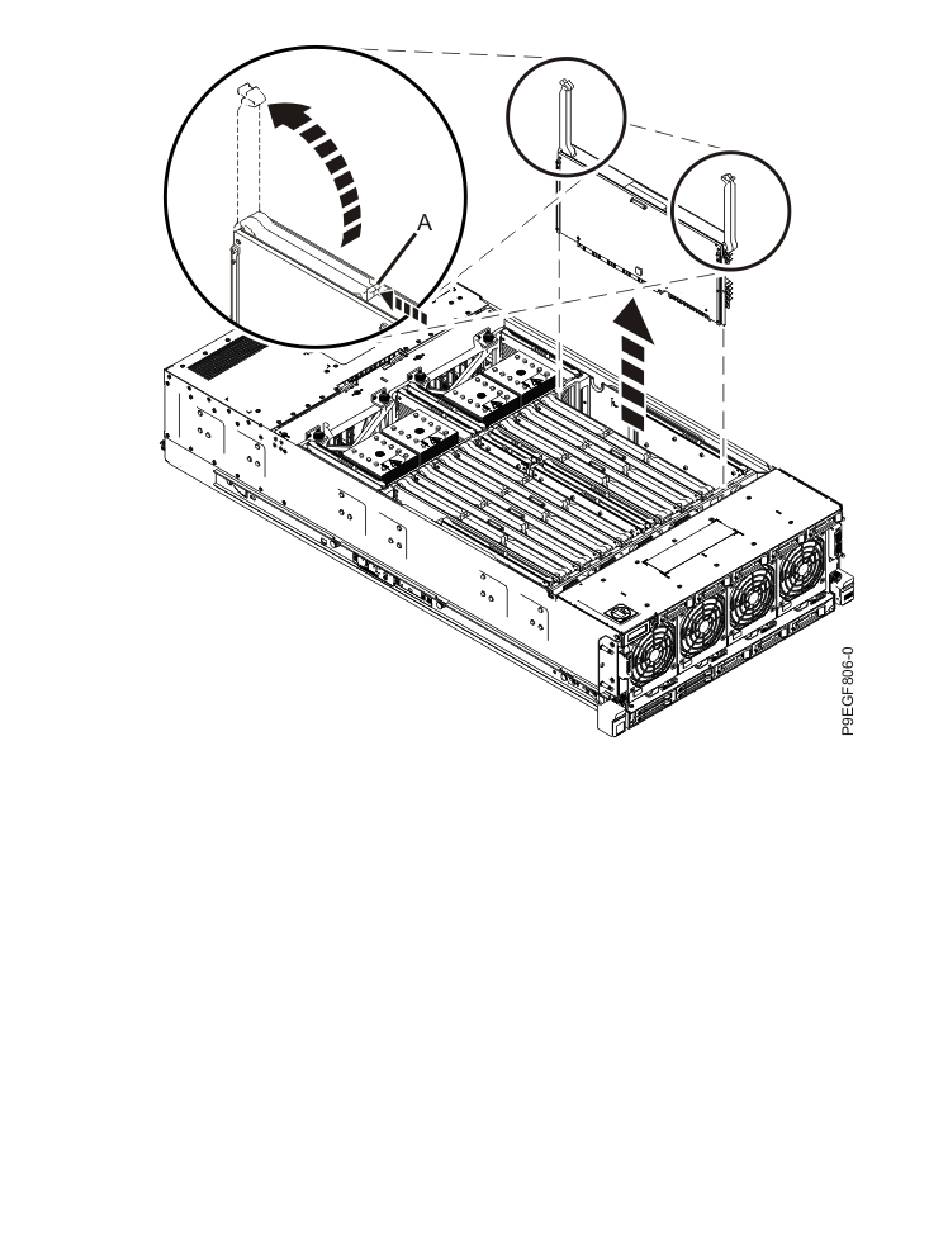

Figure 44: Removing a memory riser
• For a memory riser filler, unclip the riser and lift it out.
Removing the rear USB cable from the 9040-MR9 system
To remove the rear USB cable from the system, complete the steps in this procedure.
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Press the cable release (A) and remove the rear USB cable from the system backplane as shown in the
following figure.
Rear USB cable for the 9040-MR9 59
