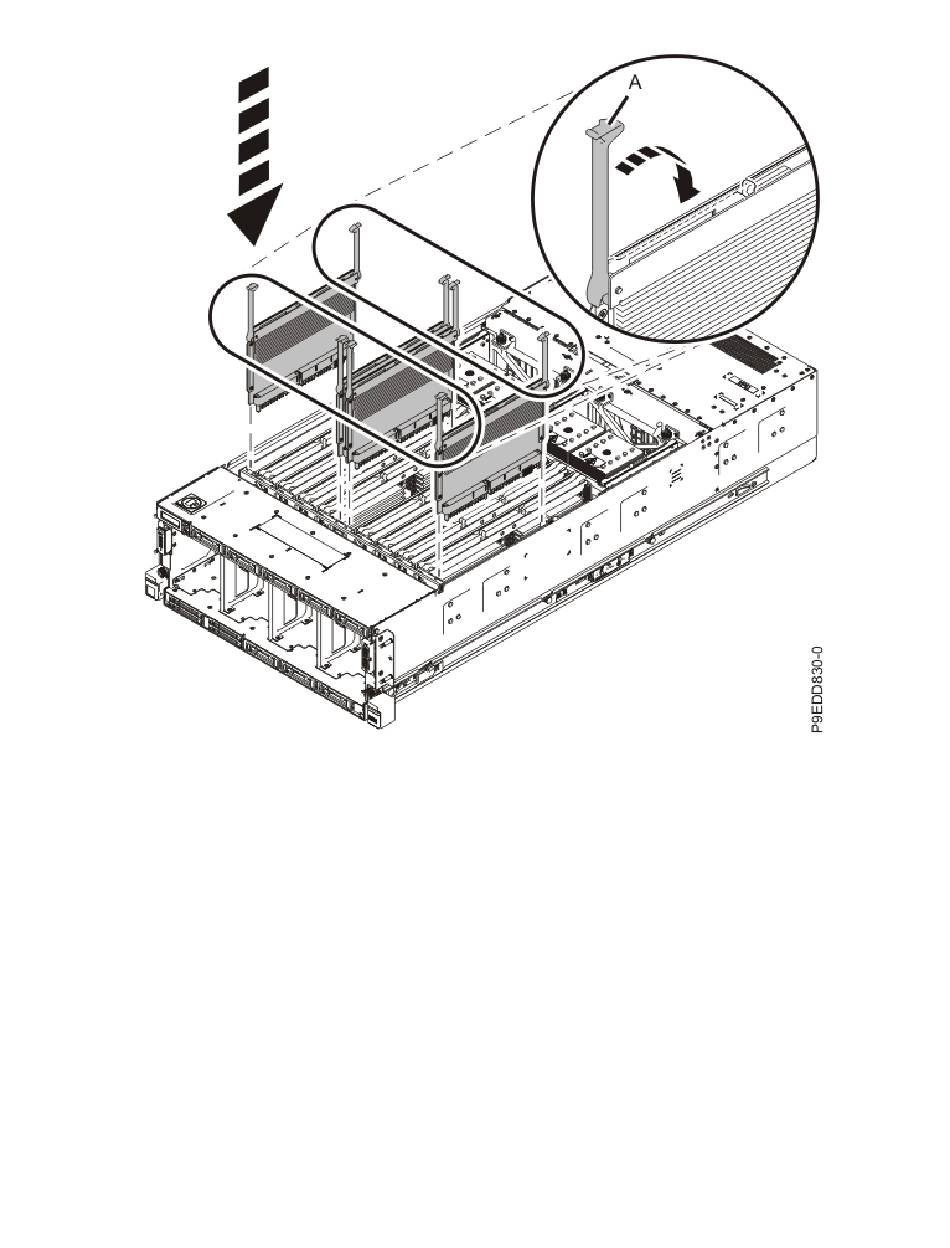

Figure 144: Replacing the memory voltage regulator modules
35. Replace the service access cover.
a) Lower the cover (A) onto the system unit. Ensure that the cover alignment pins (C) on each side of
the cover fit into the matching slots in the chassis.
b) Slide the cover (A) onto the system unit.
c) Close the release latches (B) by pushing it in the direction that is shown in the following figure.
164 Power Systems: Temple's Zeppelin procedures for install, remove, replace
