1.3 In order to validate the IMQ-SECURITY SYSTEMS certification, and in
compliance with EN54-2 regulations:
• All the manual alarm buttons and fire detectors employed in the system must be associated with fire
detection and alarm functions.
• The functions associated with the programmable LEDs on the control panel frontplate (Keypad/Display
board and LED board), and on SmartLetUSee/LCD and Smart LetUSee/LED Repeaters must be set up in
accordance with the colour of the LEDs.
- Red: fire alarm
- Yellow: fault, test and disabled status
Note:
The GAS control function is not EN54-2 compliant, as this feature is not mentioned in the aforesaid
standard.
1.4

About the SmartLoop fire alarm panel series

There are 3 expandable models (expandable to 8 loops by means of 3 SmartLoop/2L expansion boards). All
have 2 loops and are housed in the same sized enclosure. Each expandable model has a technically-
downsized version (in same-sized enclosure) with 1 loop for reduced complexity applications.
All models manage the same functions and support a full spectrum of hardwired and wireless devices.
The SmartLoop fire alarm panel series provides the following models:
• SmartLoop1010/P - fully-equipped frontplate model with 1 loop
• SmartLoop2080/P - fully-equipped frontplate model with 2 loops expandable to 8
• SmartLoop1010/G - keypad and display model with 1 Loop
• SmartLoop2080/G - keypad and display model with 2 loops expandable to 8
• SmartLoop1010/S - flush front model with 1 loop
• SmartLoop2080/S - flush front model with 2 loops expandable to 8
SmartLoop1010/P
SmartLoop2080/P

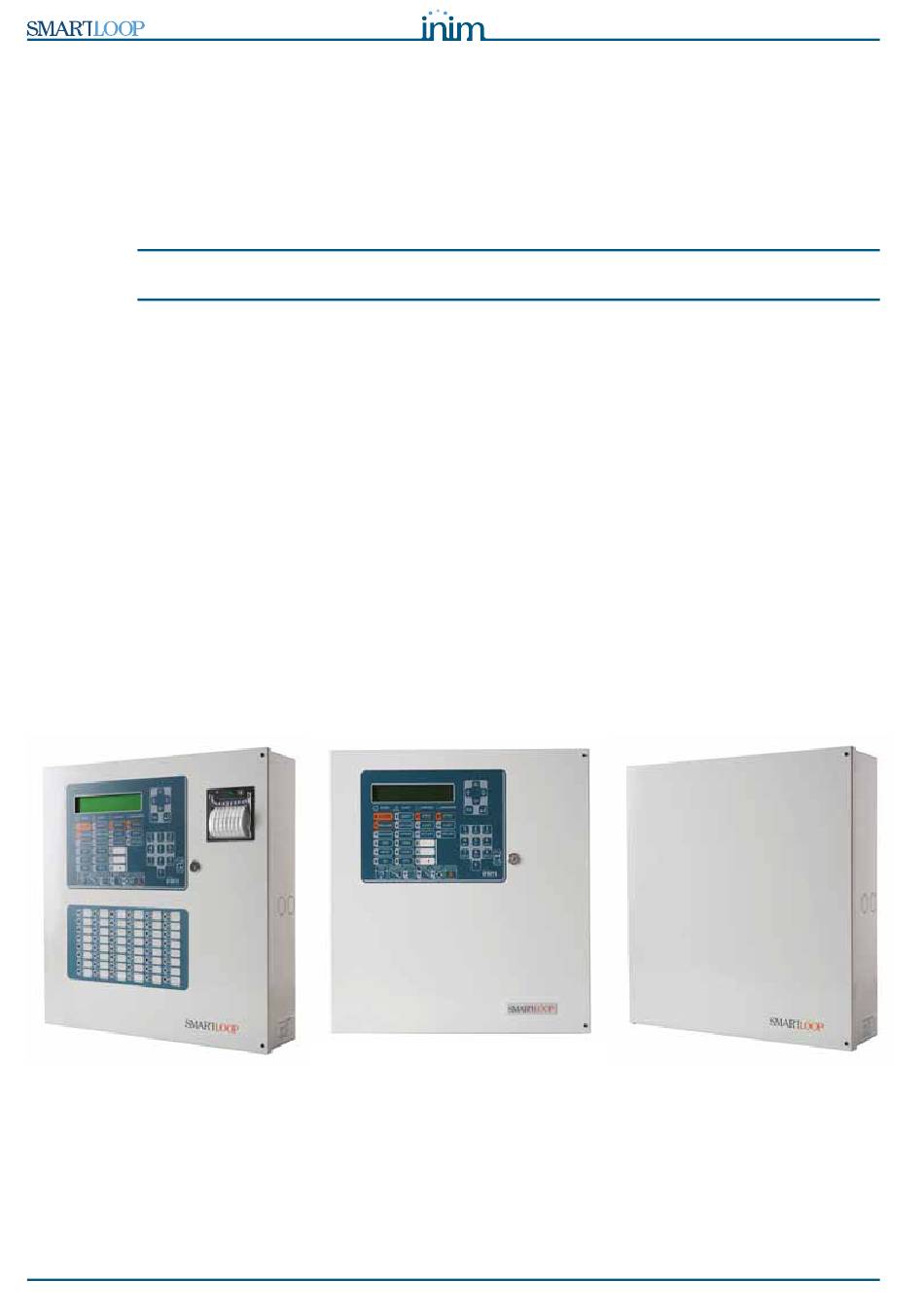

Figure 2 - SmartLoop Series
1.5

Description of the models

The "/P" model is equipped with a keypad, display, fault LEDs, fast buttons and a Zone status LED pad.
This model is suitable for locations where extended visual signals and manual control are necessary. This
model can be enhanced with the SmartLoop/PRN thermal printer (accessory item).
8
SmartLoop1010/G
SmartLoop2080/G
Installation manual
SmartLoop1010/S
SmartLoop2080/S
Introduction
