Technical description

4.1

Panel

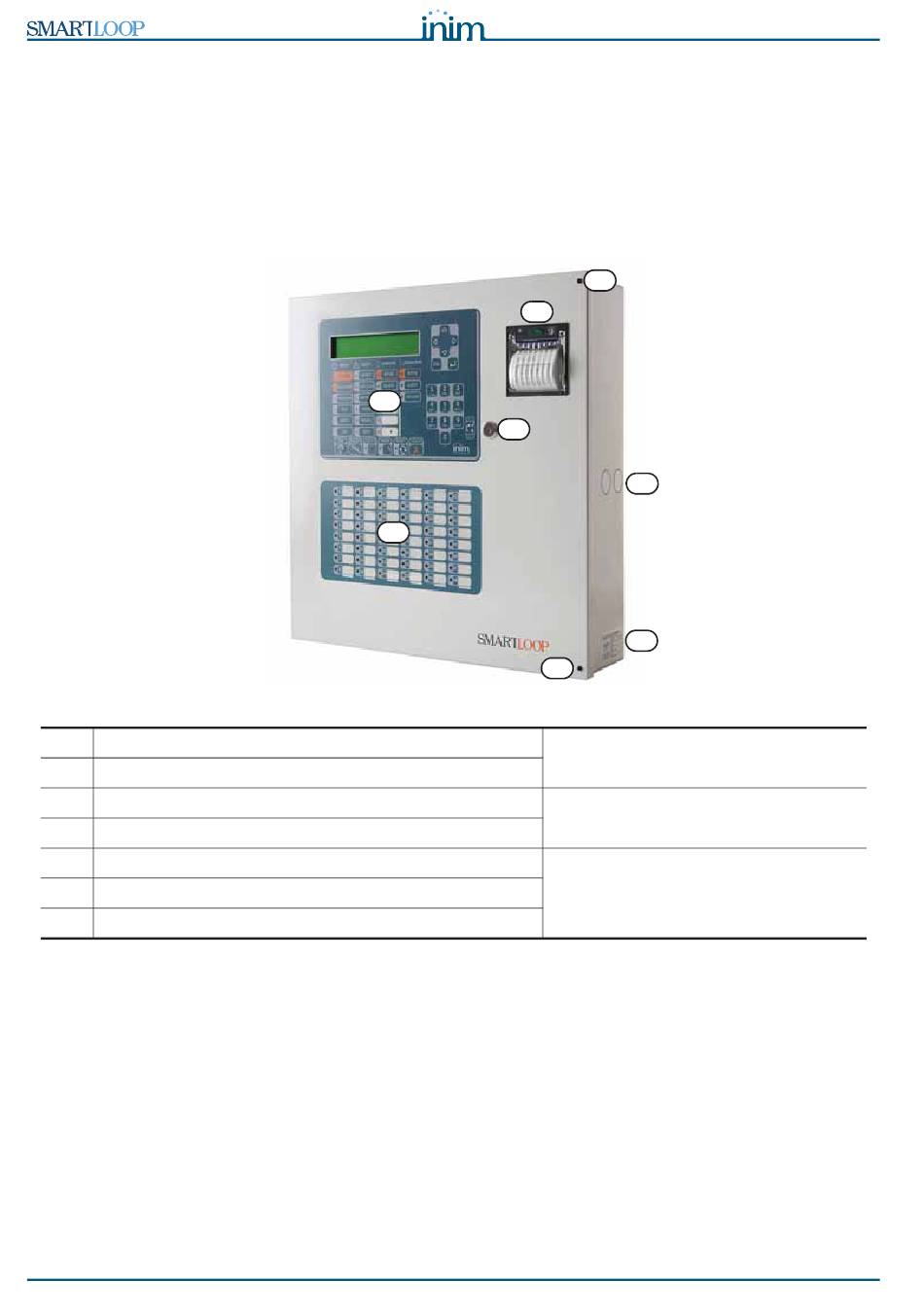

Figure 5 - Overview
[A] Front panel with display, keys and signalling LEDs
[B] Key location for the Level 2 access key
[C] LED panel
[D] SmartLoop/PRN Thermal printer
[E] Securing screws for the front cover
[F] Cable entries (located on all sides of the enclosure)
[G] Data label
4.2

The motherboard

The SmartLoop motherboard has a 32 bit microprocessor that controls all the control panel functions, and
2 peripheral microprocessors (one per loop) that manage communications with the system peripherals.
INIM's R & D professionals have developed and designed the SmartLoop motherboard using ground-
breaking new generation fire technologies that ensure maximum precision and performance. Deployment
of the most advanced reflow technology ensures high-noise immunity and extreme accuracy. Each
connection terminal is protected against electrical surges and is high-noise immune capable. All terminals
on the motherboard are clearly marked and easily identifiable.
The motherboard has been especially designed to accommodate with ease the various SmartLoop
attachment boards.
